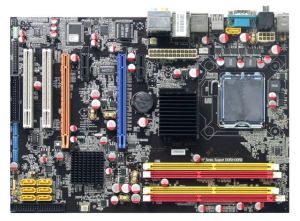

J&W P43S-Fusion Motherboard
  • LGA775, P43, ICH10, 1333FSB, 2xDDR2-800 OR 2xDDR3-1333, 1xPCI-Ex16 2.0, 6xSATA-II, 1xGigLAN, 8Chl-HD, ATX

IMG 1 of 1
No Longer Available
Part Number:
129200
(?) Brand:
J&W Web Site
Manuf No:
JW-P43S-FUSION
JWP43SFUSION
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
JWP43SFUSION, JW-P43S-FUSION

JW-P43S-FUSION

  1. LGA775 for Intel Core 2 Extreme/Quad/Duo, Pentium Dual Core, Celeron processors
  2. Supports 2 x DDR3 1333/1066/800 MHz memory modules
  3. Supports 2 x DDR2 800/667 MHz memory modules
  4. 1 x PCIe x16, 1 x PCIe x4, 2 x PCIe x1, 2 x PCI
  5. Dual S/PDIF, Serial port & printer port headers ready
  6. SATA II x 6 w/ AHCI (NCQ), e-SATA x 1
  7. Realtek 8 Channel HD Audio
  8. Marvell Gigabit LAN
  9. 100% Solid Capacitors
Overview
* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
Overview of the back I/O:
Specification

Processor
  1. LGA775 for Intel Core 2 Extreme, Core 2 Quad, Core 2 Duo, Pentium  Dual Core, Celeron  (Conroe-L) and new generation 45nm Yorkfield & Wolfdale Processors

Chipset
  1. Intel P43 + ICH10
  2. Marvell  88E8056 Gigabit Ethernet Controller
  3. Super I/O:Winbond W83627DHGchip
  4. Realtek ALC883/888 8-Channel HD Audio Codec
  5. 8M bit flash ROM

Front Side Bus
  1. 1333/1066/800 MHz FSB

Memory
  1. Type: Dual Channel DDR3 1333/1066/800 support
  2. Type: Dual Channel DDR2 800/667 support
  3. Max capacity: 4GB DDR3 or 4GB DDR2
  4. DIMM slots: 2 x DDR3, 2 x DDR2

Internal I/O

Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x Floppy disk drive connector
  4. 6 x SATA 3Gb/s connectors (Support AHCI [NCQ])
  5. 1 x CPU fan header
  6. 2x System fan headers
  7. 1 x Front panel header
  8. 1 x Front panel audio header
  9. 1 x S/PDIF In header
  10. 1 x S/PDIF Out header
  11. 3 x USB 2.0 headers for additional 6 USB 2.0 ports (by cables)
  12. 1 x e-SATA connector
  13. 1 x Buzzer header

Expansion Slots
  1. 1x PCI-E x16 Gen. 2 slot
  2. 1 x PCI-E x4 slot
  3. 2x PCI-E x1 slots
  4. 2x PCI slots

Rear Panel I/O
  1. 1 x PS/2 Keyboard port
  2. 1 x PS/2 Mouse port
  3. 1 x Coaxial S/PDIF In port
  4. 1 x Optical S/PDIF Out port
  5. 1 x Serial port
  6. 1 x e-SATA port
  7. 6x USB 2.0 ports
  8. 1x RJ-45 LAN port
  9. 6 x Audio ports (Line In / Line Out / MIC In / Rear Speaker Out / Center-Subwoofer Speaker Out / Side Speaker Out)

Form Factor
  1. ATX
  2. 230mm x 304.8mm

H/W Monitoring
  1. Winbond W83627DHG
  2. System health status auto-detect and reported by BIOS

BIOS
  1. 8Mbit flash ROM, AMI BIOS

Bundle Software

1. Driver and Utility disc

Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. This product does not support Win9X/ME, due to most hardware/software vendors no longer offer support for Win9X/ME.


No additional files, specification sheets, guides or documentation found for product.

Warranty: 2-year RTB

Full manufacturers warranty details are available at the manufacturers (J&W) web site.
