| Brand |
 |
Socket |
|
CPU |
|
CPU Compatibility |
|
| Intel |
1156 |
Core i7 |
Supports all speeds |
| Core i5 |
| 1366 |
Core i7 |
Supports all speeds |
| 775 |
Core 2 Quad |
Supports all speeds |
| Core 2 Duo |
| Core 2 Extreme |
| Pentium Dual Core |
| Pentium D |
| Pentium 4 |
| Celeron D |
| AMD |
AM3 |
Phenom II |
Supports all speeds |
| Athlon II |
| AM2+ |
Phenom II |
Supports all speeds |
| Phenom |
| Athlon FX, Athlon 64 FX |
| Athlon X2, Athlon 64 X2 |
| Athlon, Athlon 64 |
| Sempron |
| AM2 |
Athlon FX, Athlon 64 FX |
Supports all speeds |
| Athlon X2, Athlon 64 X2 |
| Athlon, Athlon 64 |
| Sempron |
| 940 |
Dual-Core Opteron |
Supports all speeds |
| Opteron |
| Athlon FX, Athlon 64 FX |
| 939 |
Dual-Core Opteron |
Supports all speeds |
| Opteron |
| Athlon FX, Athlon 64 FX |
| Athlon X2, Athlon 64 X2 |
| Athlon, Athlon 64 |
| 754 |
Athlon, Athlon 64 |
Supports all speeds |
| Sempron |
|
| |
 |
| |
 |
| |
| Dimensions |
94(L) x 131(W) x 152(H) mm |
| Weight |
730g |
| Base Material |
Pure Copper |
| Dissipation Area |
5,402 |
|
| |
 |
| |
| Bearing Type |
2 Ball-Bearing |
| without RC33P |
RPM |
1,000rpm ~ 2,000rpm 10% |
| Noise Level |
19.5dBA ~ 38.0dBA 10% |
| with RC33P |
RPM |
800rpm ~ 1,300rpm 10% |
| Noise Level |
18dBA ~ 28.5dBA 10% |
| Main Functions |
4-Pin Connector (PWM Control, Auto Restart) |
|
| |
 |
| |
| Color |
Gray |
| Capacity |
3.5g |
| Specific Gravity @23C |
2.88 |
| Thermal Resistance |
8K/W |
| Thermal Conductivity |
4.1W/mK |
| Temperature Stability |
-40C ~ +150C (-40 ~ +302) |
|
| |
 |
 |
 Powerful Cooling Performance
Optimally designed pure copper fins effectively disperse heat away from the CPU via heatpipes, while the high capacity 120mm fan quickly cools the heatsink for stable operation of high performance CPUs.
|
|

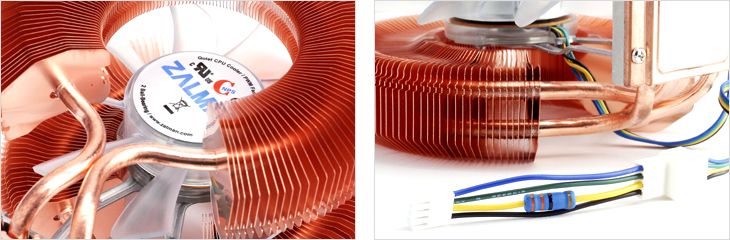

PWM Fan Speed Control
The PWM(Pulse Width Modulation) Fan automatically adjusts fan speed(RPM) according to the CPUs temperature,?while the included Resistor Cable(RC33P) provides the option of reducing the input voltage for overall reduction of fan speed and noise.
Quiet Mode (w/ RC33P): 800 - 1300RPM / 18 - 28dBA 10%
Normal Mode: 1000 - 2000RPM / 19 - 38dBA 10%
|
|
| |
 |

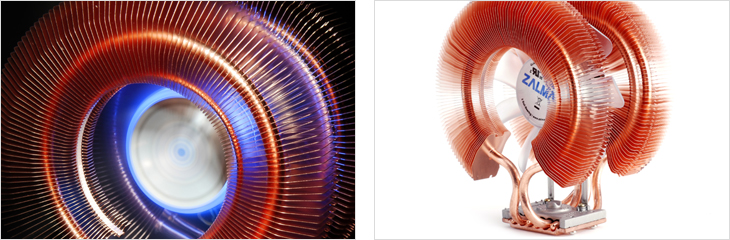

| Ultra Quiet 120mm Blue LED Fan
An ultra quiet 120mm fan is incorporated for minimized noise and Blue LEDs heighten the cool aesthetics.
|
|
Omega() Heatpipe Design
The CNPS9900A LEDs distinctive Omega() design not only provides excellent CPU Cooling but also effectively cools surrounding components for excellent system stability.
|
|
| |
 |

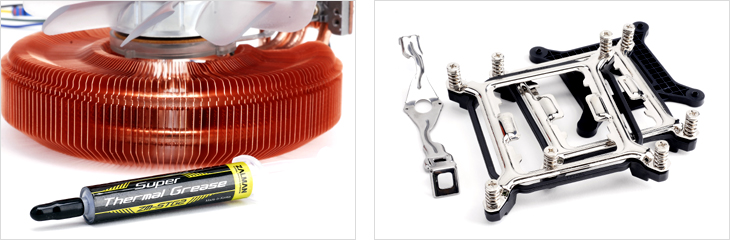

| High Performance Super Thermal Grease ZM-STG2
The included all new high performance thermal grease ZM-STG2 maximizes heat transfer from the CPU to the base of CNPS9900A LED for intensified cooling performance.
|
|
Versatile Compatibility
CNPS9900A LED accommodates a broad range of sockets.
Intel LGA1156/1366/775, AMD AM3/AM2+/AM2/754/939/940
|
|
| |
 |
 |
 |
| |

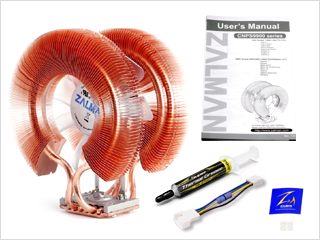

 Common Components |
| |
- Cooler
- Thermal Grease (ZM-STG2)
- Resistor Cable (RC33P)
- Washers
- Users Manual |
|

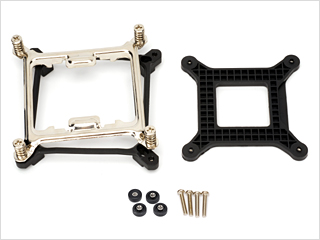

| Components for Intel Socket 1156/775 |
| |
- Socket 1156/775 Clip
- Socket 1156/775 Clip Support
- Socket 775 Backplate
- Socket 1156 Nuts
- Socket 1156/775 Bolts (Silver) |
|
| |
|
 |
 |
| |

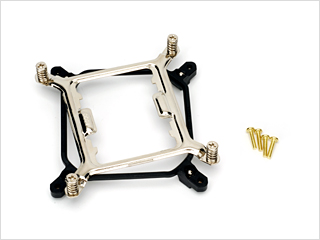

| Components for Intel Socket 1366 |
| |
- Socket 1366 Clip
- Socket 1366 Clip Support
- Socket 1366 Bolts (Gold) |
|

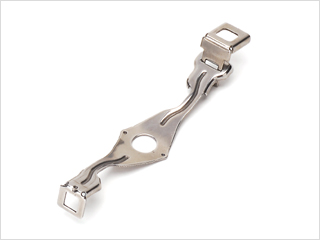

Component for AMD
Socket AM3/AM2+/AM2/754/939/940 |
| |
- AMD Clip
- AMD Clip Lever |
|
|
|
| |
 |
| Zalman affixes a Computer Noise Prevention System (CNPS) mark to all components used for noiseless computers. |
| |
 |
 |
Use and keep product away from reach of children and pets. |
| |
 |
Do not ingest the Thermal Grease, and avoid its contact with skin and eyes. If contact is made with skin, wash off with water. If ingested or irritation persists, seek medical attention. |
| |
 |
To prevent possible injuries, gloves must be worn while handling this product. |
| |
 |
Excessive force exerted on the fan may cause damage to the fan and/or system. |
| |
 |
Avoid inserting objects into the fan while it is in operation. |
| |
 |
Check the components list and condition of the product before installation. If any problem is found, contact the retailer to obtain a replacement. |
| |
 |
Zalman is not responsible for any damages caused by overclocking. |
| |
 |
During transportation of the system, the cooler must be removed. |
| |
 |
Zalman is not responsible for any damages that occur during the transport of a system. |
| |
 |
Product design and specifi cations may be revised to improve quality and performance. |
|
