Socket |
|
CPU |
|
CPU Compatibility |
|
| Intel |
1156 |
Core i7 |
Supports all speeds |
| Core i5 |
| 1366 |
Core i7 |
Supports all speeds |
| 775 |
Core 2 Quad |
Supports all speeds |
| Core 2 Duo |
| Core 2 Extreme |
| Pentium Dual Core |
| Pentium D |
| Pentium 4 |
| Celeron D |
| AMD |
AM3 |
Phenom II |
Supports all speeds |
| Athlon II |
| AM2+ |
Phenom II |
Supports all speeds |
| Phenom |
| Athlon FX, Athlon 64 FX |
| Athlon X2, Athlon 64 X2 |
| Athlon, Athlon 64 |
| Sempron |
| AM2 |
Athlon FX, Athlon 64 FX |
Supports all speeds |
| Athlon X2, Athlon 64 X2 |
| Athlon, Athlon 64 |
| Sempron |
| 940 |
Dual-Core Opteron |
Supports all speeds |
| Opteron |
| Athlon FX, Athlon 64 FX |
| 939 |
Dual-Core Opteron |
Supports all speeds |
| Opteron |
| Athlon FX, Athlon 64 FX |
| Athlon X2, Athlon 64 X2 |
| Athlon, Athlon 64 |
| 754 |
Athlon, Athlon 64 |
Supports all speeds |
| Sempron |
|
| |
| Specifications |
| |
 |
| |
| Dimensions |
133(L) X 74(W) X 151(H)mm |
| Weight |
700g |
| Materials |
Fins: Aluminum / Base: Copper |
| Dissipation Area |
8,200 |
| Heatpipes |
5 U-shaped heatpipes |
|
| |
 |
| |
| Color |
Gray |
| Capacity |
3.5g |
| Specific Gravity @23C |
2.88 |
| Thermal Resistance |
8K/W |
| Thermal Conductivity |
4.1W/mK |
| Temperature Stability |
-40C ~ +150C (-40 ~ +302) |
|
| |
 |
 |

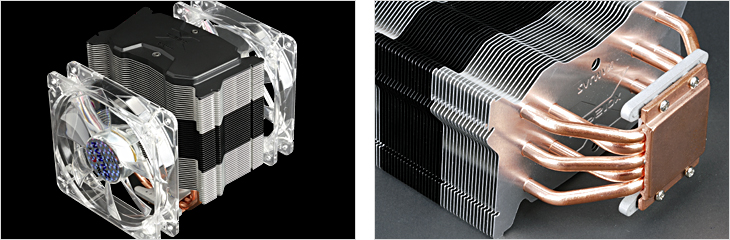

 Dual Fan Support
The heatsink is designed to accommodate one or two fans according to the users preference.
120mm fan must be purchased separately because cooling fan is not included.
(Recommended fan : ZM-F3, ZM-F3 LED)
|
|
Powerful Cooling Performance
Optimally designed aluminum fins disperse heat away from the CPU via 5 heatpipes, while the high capacity 120mm fan quickly cools the heatsink for stable operation of high performance CPUs.
|
|
| |
 |

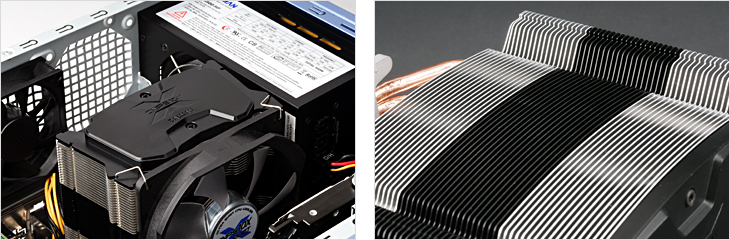

| 180mm Wide Case Compatibility
For optimum case compatibility the heatsinks height is set to 151mm, ensuring compatibility with 180mm width cases.
|
|
Differentiated Design
Differentiated from typical U-shaped heatpipe coolers, a central band of black anodized fins adds a sleek and cool aesthetic finish.
|
|
| |
 |

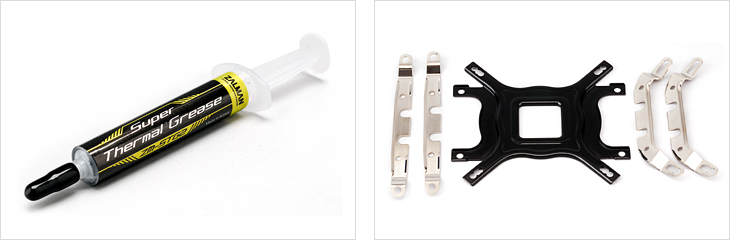

| High Performance Super Thermal Grease ZM-STG2
New high performance thermal grease ZM-STG2 maximizes heat transfer from the CPU to the base of CNPS10X FLEX for intensified cooling performance.
|
|
Versatile Compatibility
CNPS10X Flex accommodates a broad range of sockets.
Intel LGA1156/1366/775, AMD AM3/AM2+/AM2/754/939/940
|
|
| |
| ZM-STG2 Features
|
 |
Quickly transfers heat from heat sources (CPUs, VGA chipset, Northbridge chipset) to their heatsinks. |
| |
 |
Non-electrically conductive. |
|
|
|
| |
 |
 |
 |
| |
 Common Components |
| |
- CNPS10X Flex
- Backplate
- Side Caps
- Bolts
- Nuts
- Fan Fixing Clips
- Vibration Pads
- Loading Block
- Thermal Grease(ZM-STG2)
- Double-Sided Tape
- Users Manual |
|
| Components for Intel Socket 1156/1366/775 |
| |
| - Intel Clip |
|
| |
|
 |
|
| |
Component for AMD
Socket AM3/AM2+/AM2/754/939/940 |
| |
| - AMD Clip |
|
|
|
|
| |
 |
| Zalman affixes a Computer Noise Prevention System (CNPS) mark to all components used for noiseless computers. |
| |
 |
|
This cooler must be used with a 120mm fan. |
| |
|
Do not ingest the Thermal Grease, and avoid its contact with skin and eyes. If contact is made with skin, wash off with water. If ingested or irritation persists, seek medical attention. |
| |
 |
To prevent possible injuries, gloves must be worn while handling this product. |
| |
 |
Excessive force exerted on the fan may cause damage to the fan and/or system. |
| |
 |
Use and keep product away from reach of children and pets. |
| |
 |
Check the components list and condition of the product before installation. If any problem is found, contact the retailer to obtain a replacement. |
| |
 |
Zalman is not responsible for any damages caused by overclocking. |
| |
 |
During transportation of the system, the cooler must be removed. |
| |
 |
Zalman is not responsible for any damages that occur during the transport of a system. |
| |
 |
Product design and specifi cations may be revised to improve quality and performance. |
|
