All stock codes associated to this product
CMPSU650HX, CMPSU-650HX

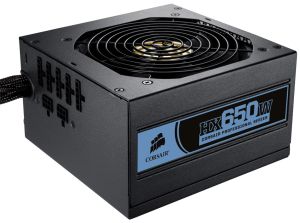

The Corsair Professional HX650W modular power supply delivers 650 Watts of clean, continuous power. Flat, low-profile modular cables allow for easy cable routing and increased airflow. The high-efficiency design reduces electricity usage and minimizes heat generation.
The Corsair Professional HX650W is ideal for performance enthusiasts for whom consistent delivery of rated power output is essential. It delivers continuous rated power at ambient temperatures of up to 50 C. An intelligent fan speed system regulates the ultra-quiet 120mm double ball bearing fan. 105 C rated industrial-grade capacitors provide uncompromised performance and reliability. Its fully compatible with the ATX12V v2.2 and EPS12V 2.91 standards and backward compatible with ATX12V 2.01 systems.
* Tested at room temperature, using a 50% load and 230V AC input.
Corsair HX650W Features:
- Guaranteed to sustain its full rated wattage at an ambient temperature of 50C
- Up to 85% energy-efficiency under real-world load conditions*
- Single +12V rail design providing up to 52A
- Multi-GPU ready
- Active Power Factor Correction (PFC) with PF value of 0.99
- Supports ATX12V 2.2 and EPS12V 2.91 standards. Backwards compatible with ATX12V 2.01
- Auto switching circuitry for universal AC input from 90-264V
- Over Current/Voltage/Power Protection, Under Voltage Protection and Short Circuit Protection provide complete component safety
- Dimensions: 150mm(W) x 86mm(H) x 150mm(L)
- MTBF: 100,000 hours
- Safety Approvals: UL, CUL, CE, CB, FCC Class B, TV, CCC, C-tick
Corsair HX650W Specifications: Model CMPSU-650HX
| AC INPUT |
100-240V ~ 10A 50/60Hz |
| DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5Vsb |
| MAX CURRENT |
24A |
30A |
52A |
0.8A |
3A |
| MAX COMBINED WATTAGE |
170W |
624W |
9.6W |
15W |
| |
TOTAL POWER: 650W |
Corsair HX650W Connectors:
