All stock codes associated to this product
ZESU2CS

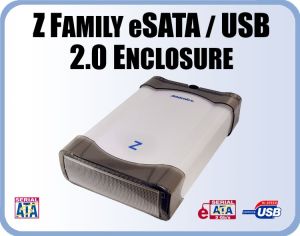

Zebra eSATA/USB combo drive enclosure with eSATA and USB 2.0 interface
Content: Zebra External Enclosure with eSATA and USB 2.0 connectors, 3ft eSATA-eSATA connecting cable, 3 ft. A-B USB cable, 100/240 AC/DC 12V power adapter (AAPAC12V1.7A), User Guide, Driver CD
The new Zebra series drive enclosure may be the only external drive enclosure that you will ever need. With a wide range of optional components, the Zebra series are designed to start as a basic economical drive enclosure solution. It can then be expanded with new capabilities to accommodate different type of storage devices or interface connections as your need grows. The Zebra family of enclosures come in choices of three difference interface connection - USIB, eSATA or eSATA+USB combo. The Zebra enclosures are large enough for both 3.5" or 5 1/4" drives and are designed for simple drive installation with a easily slide open drive tray at the back. The front features a removable front panel to accomodate removable or optical storage devices.
Zebra eSATA/USB combo
The latest addition to the Zebra family is the eSATA/USB combo model. It features both built in eSATA and USB 2.0 interface. These two interfaces allows you to connect any SATA hard drives to computer that is equipped with the high speed eSATA port or the convenience of the USB port that is available in variety of computers.
Since external hard drive connected to eSATA port appears as an internal hard drive to the OS, the Zebra eSATA or the eSATA/USB combo models with a bootable hard drive inside can be used to boot up a computer, great for system rescue operation or computer sharing in training and various type of applications that require an external boot drive.
Constructed in full aluminum body for durability and effective heat dissipation for some of the high temperature hard drives, the Zebra enclosure provides ample space to accommodate even the large standard height DVD-RRW drive and Addonics Mobile Rack (removable hard drive system). In addition, both the USIB and eSATA back panel are also interchangeable. The Zebra series drive enclosures are also designed to work with Addonics Mobile Rack (removable hard drive system) or the 2.5" hard drive disk array, and turn them into external fully hot swappable removable drive system.
Product Features
- Choice of eSATA or USIB module
- Sturdy aluminum construction
- Compact size for convenient transportation
- Compatible with IDE hard drives, SATA or SATA II hard drive and most ATAPI devices
- Rear mount 40x40mm cooling fan
- Plug and play
- Stereo ear phone jack
- Bootable under DOS
- Simple installation
- OS Compatibility:
- Zebra USIB Model: DOS, Windows 98SE, Me, NT (eSATA cable only), 2000, XP, Vista, Linux (Kernel 2.4 and above), Solaris 10, Mac OS X 10.4.x
- Zebra eSATA Model: DOS, Windows 98SE, Me, NT, 2000, XP, Vista, Linux (Kernel 2.4 and above), Solaris 10, Mac OS X 10.4.x
- Zebra eSATA / USB 2.0 Combo: DOS, Windows 98SE, Me, NT, 2000, XP, Vista, Linux (Kernel 2.4 and above), Solaris 10, Mac OS X 10.4.x
Specifications
|

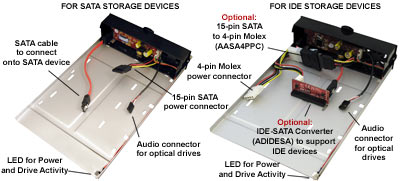

Support drive type
|
| Zebra eSATA: |
3.5" SATA hdd, 2.5" SATA hdd (with bracket), 2.5" IDE hdd (with adapter), 3.5" IDE hdd (with converter) |
| Zebra USIB: |
3.5" IDE hdd, 2.5" IDE hdd (with adapter), 3.5" SATA hdd (with converter), 2.5" SATA hdd (with converter) |
| Zebra eSATA/USB: |
3.5" SATA hdd, 2.5" SATA hdd (with bracket), 2.5" IDE hdd (with adapter), 3.5" IDE hdd (with converter) |
|
|
Interface Type:
|
| Zebra eSATA: |
eSATA |
| Zebra USIB: |
USB 2.0/1.1, Firewire/iLink, eSATA |
| Zebra eSATA/USB: |
eSATA and USB 2.0 |
|
|
Construction material:
|
Aluminum body
|
|
LED
|
Power(Green) and Drive Activity(Red) LED
|
|
Audio jack
|
Stereo earphone jack
|
|
Supported OS
|
Windows 98SE, Me, 2000, XP, DOS, Linux (Kernel 2.4 and above), Solaris 8, Mac OS X 10.4.x
(bundled software works under Windows OS only)
|
|
Power Supply:
|
100 / 240V AC/DC 12V / 5V 34 Watts Power Adapter (AAPAC12V-US)
|
|
Cooling system:
|
Rear mount 40x40 mm cooling fan
|
|
Dimensions:
|
10.16 x 6.61 x 2.36 in.
(258 x 168 x 60 mm)
|
|
Weight:
|
| Zebra eSATA: |
2.16lbs. (979g) |
| Zebra USIB: |
2.12lbs. (963g) |
| Zebra eSATA/USB: |
2.11lbs. (955g) |
|
|
Storage Temperature:
|
Range: -30C to +60C
|
|
Operating Temperature:
|
Range: +5C to +40C
|
|
Storage Humidity:
|
5% to 90%
|
|
Operating Humidity:
|
5% to 95%
|
|
Warranty:
|
One Year
|
System Requirements
- PC/AT or Compatible System
- eSATA, USB, or Firewire port
- Pentium II or Greater
- Minimum 64 MB RAM
- One of the Following Operating System:
DOS, Windows 98SE, Me, 2000, XP, Vista, Linux (Kernel 2.4 and above), Solaris 8, Mac OS X 10.4.x
