All stock codes associated to this product
AE25RDESU
Portable Dual Drive RAID enclosure
Content: Portable Dual Drive RAID enclosure, 3 feet USB data cable, 3 feet eSATA-eSATA connecting cable, 3 feet USB power cable, 110/220V AC/DC 5V power adapter, User Manual, DriveClone 3, Driver CD
This new Portable Dual Drive RAID enclosure accomodates up to two 2.5" SATA hard drives into a small package that fits easily in your hand. To enhance portability, the entire storage unit is designed to be powered by most USB ports*. The drives can be used as two independent drives, as a redundant drive to protect against drive failure, combined to become one high performance drive or combined to become one large drive. All these different configurations are controlled by an simple dip switch easily accessible on the back of the unit. By utilizing Addonics family of SATA-CF hard disk adapters, up to as many as 4 Compact Flash can also be installed into this drive enclosure and turns it into a portable, large capacity, high performance, and shock resistant SSD (Solid State Drive).
Product Features
- Install up to two 2.5" SATA hard drives of 9mm - 9.5mm height or 4 CFs ( installing CF require optional Addonics SATA-CF hard disk adapters)
- Easy installation and removal of hard drive

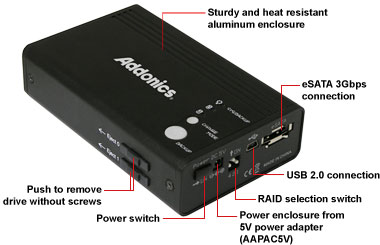

- Built-in eSATA and USB 2.0/1.1 interface to computer
- Simple RAID configuration with DIP switch or GUI configuration
- Supports FAST (RAID0 Striping), SAFE (RAID1 Mirroring), JBOD (Just a Bunch Of Disks), BIG (Concatenation), SAFE50, SAFE33, or GUI mode using built-in hardware RAID

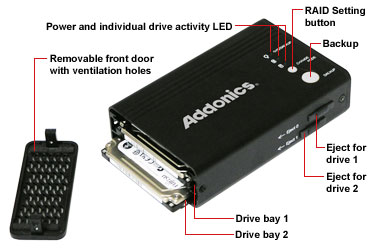

- Sturdy aluminum construction and removable front door with ventilation holes
- Includes DriveClone 3, a powerful hard drive cloning and imaging software
- One button backup for convenient drive sync
- Enclosure can be powered through USB port*
- Power and individual drive activity LEDs
- Weight less than 5 oz. wihout drives
- Compact size for convenient transportation
- Bootable via eSATA
- Hot swappable
- Plug and play
- OS support -
- USB connection - Windows 98SE, Me, 2000, XP, Vista, Linux (Kernel 2.4 and above), Mac OS X and above
- eSATA connection - DOS, Windows NT, 98SE, Me, 2000, XP, Vista, Linux (Kernel 2.4 and above), Mac OS X and above, Solaris 10 and above.
* Addonics has successfully tested this drive enclosure with two 80G 2.5" SATA hard drives using direct power from USB ports on various brands of Notebook and Desktop computers. However, Addonics does not guarantee that this enclosure can be powered by all systems this way as the power from the USB port varies from different system manufacturers.
Hot swap in eSATA connection depends on the controller
Specifications
|
Support drive type
|
2.5" SATA 3Gbps or 1.5Gbps hard drive that are no thicker than 9.5 mm, Compact Flash using optional Addonics SATA CF hard drive adapters |
|
Interface Type:
|
eSATA 1.5Gbps, eSATA 3Gbps, USB 2.0, USB 1.1 |
|
Construction material:
|
Aluminum body
|
|
LED
|
Power and Drive Activity LED
|
|
Supported OS
|
DOS, Windows 98SE, Me, NT (eSATA cable only), 2000, XP, Vista, Linux (Kernel 2.4 and above), Solaris 10, Mac OS X 10.4.x
|
|
Power Supply:
|
Power from most USB port* or 5V power adapter (AAPAC5V)
|
|
Dimensions:
|
5.24" (L) x 2.27" (W) x 1.3" (D)
133mm (L) 83mm (W) x 33mm (H)
|
|
Weight:
|
7.1 oz , (202g)
|
|
Storage Temperature:
|
Range: -30C to +60C
|
|
Operating Temperature:
|
Range: +5C to +40C
|
|
Storage Humidity:
|
5% to 90%
|
|
Operating Humidity:
|
5% to 95%
|
|
Warranty:
|
One Year
|
System Requirements
- PC/AT or Compatible System
- eSATA or USB port
- Pentium II or Greater
- Minimum 64 MB RAM
- One of the Following Operating System:
DOS, Windows 98SE, Me, NT (eSATA cable only), 2000, XP, Vista, Linux (Kernel 2.4 and above), Solaris 10, Mac OS X 10.4.x
