GA-X58A-UD7 (rev. 1.0)
Intel  X58 + ICH10R Chipset
  1. Ultra Durable 3 Technology with copper cooled quality for lower working temperature
  2. Supports newest NEC SuperSpeed USB 3.0 with superfast transfer rates of up to 5 Gbps
  3. 3X USB power delivery for greater compatibility and extra power for USB devices
  4. Provides newest Marvell SE9128 high speed SATA3 storage interface with superfast 6Gbps link speed
  5. Supports the newest Intel Core i 7 processors in socket LGA1366 with QPI 6.4 GT/s
  6. Revolution energy saving design with DES Advanced featuring hardware based Dynamic 6-Gear switching
  7. Supports 3 channel DDR3 2100+ memory
  8. Scalable ability to both 3 way CrossFireX and 3 way SLI support for ultimate graphics performance
  9. Advanced 24+2+2 power phase design with VRD 11.1 support
  10. New Hybrid Silent-Pipe 2 design provides unequalled heat conductivity
  11. Unique hardware control IC to provide more precision voltage control
  12. 100% 50,000 hour lifespan Japanese solid capacitors design
  13. Onboard Debug LED display simplifies motherboard troubleshooting
  14. Patented DualBIOS with dual hardware BIOS protection
  15. 2 Gigabit Ethernet LAN with Teaming functionality
  16. Supports Dolby Home Theater audio to create a stunning surround sound listening experience
  17. Power/reset/Clr CMOS onboard button for easily operation on the workbench
  18. Blu-ray playback outputs supported by high quality 18dB SNR ALC889 HD audio
  19. Compatible with Window 7 to deliver the best operation experience
  Overview

    Introduction
Based on the Intel  X58 chipset, the GIGABYTE GA-X58A-UD7 delivers all the killer next generation features that gaming enthusiasts and power users have been waiting for including GIGABYTE's 333 Onboard Acceleration features with support for USB 3.0, Serial-ATA Revision 3.0 (6Gbps) and a 3x USB Power Boost, as well as multi-GPU support for NVIDIA 3-Way SLI and ATI CrossFireX and support for Intel's upcoming 32nm high performance processors offering a high level of future CPU headroom for users wanting to maintain cutting-edge levels of performance. With the memory controller integrated directly into the processor die, the GIGABYTE GA-X58A-UD7 also supports triple channel DDR3 memory for blazing fast memory performance.
    Intel  Core i7 Processor and X58 Chipset support


The GA-X58A-UD7 was designed specifically to take advantage of the raw power of the next generation Intel  Core i7 processors and the Intel  X58 Express chipset, whose new evolution in computing architecture is able to deliver an amazing performance break through from past processor generations. Replacing the Front Side Bus is the new Quick Path Interconnect, or QPI, whose 25.6 GB/sec transfer rates (double the bandwidth of the 1600MHz FSB) eliminates the communication bottleneck between the processor and chipset.

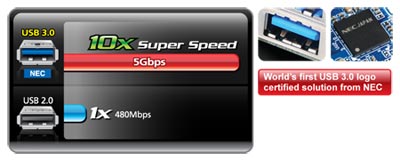

  USB 3.0 Support
The GIGABYTE X58A series motherboards support the latest generation SuperSpeed USB 3.0 technology made possible through an onboard NEC uPD720200 host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices. The onboard NEC SuperSpeed USB 3.0 technology also provides new power management features that include increased maximum bus power and device current draw to better accommodate power-hungry devices.

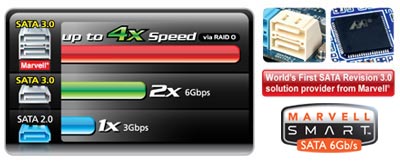

  SATA 6 Gbps Support
Yet another onboard feature of GIGABYTE X58A motherboards are Marvell's new SE9128 chips for high-speed SATA Revision 3.0 compatibility, delivering superfast 6Gbps link speeds for twice the data transfer rates of SATA Revision 2.0 (3 Gbps). When used in RAID 0 (Stripe) mode, GIGABYTE X58A series motherboards offer even faster data transfer rates of up to 4x the speed of current SATA interfaces.

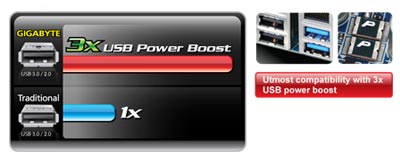

  3x USB Power Boost
GIGABYTE X58A series motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTE's unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery.

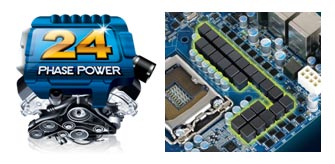

    24 phase power- World's Best Phase Power Design



Industry's First 24 Phase Power VRM Design
GIGABYTE's cutting edge 24 phase power VRM design utilizes the highest caliber components to provide unadulterated, smooth power delivery for the CPU. Like a high performance sports car engine, GIGABYTE's 24 phase power design enables the best delivery of power to supercharge your system, giving extreme users unparalleled overclocking ability and the lowest temperatures to reach maximum performance levels.
The innovative 24 phase power VRM has been designed and engineered to deliver fast transient response times through quick and seamless power delivery during extensive CPU loading variations. In addition, heat from the VRM is effectively reduced by spreading the load between the 24 power phases, resulting in a cooler and more stable platform.
  Windows  7 WHQL Certified
The motherboard has obtained WHQL (Windows Hardware Quality Labs) certification for Windows 7 from Microsoft  for an Intel-based motherboard, setting the standard for future Windows 7 certified motherboards...more
  Dynamic Energy Saver 2
GIGABYTE Dynamic Energy Saver 2 incorporates a host of intelligent features that use a proprietary hardware and software design to considerably enhance PC system energy efficiency, Reduce power consumption and deliver optimized auto-phase-switching for the CPU, Memory, Chipset, VGA, HDD, and fans with a simple click of button.
    Smart 6- A Smarter way for PC system Management
GIGABYTE Smart 6 is designed with user-friendliness in mind, and offers a combination of 6 innovative software utilities that provide easier and smarter PC system management. Smart 6 allows you to speed up system performance, reduce boot-up time, manage a secure platform and recover previous system settings easily with a click of the mouse button.


Smart QuickBoot
No more waiting for PC Boot up

Smart DualBIOS
Smart personal reminder
Smart QuickBoost
One-click Overclocking
Smart Recorder
Your PC's Watch Dog
Smart Recovery
Reverse time for you
Smart TimeLock
Time Controller for PC
  AutoGreen- Greening your PC via Bluetooth cellphone
AutoGreen technology can automatically save power for you simply by your bluetooth cell phone when you are away from your computer
  XHD (eXtreme HardDrive)-Accelerating hard drive performance with ease
Accelerating system performance is made easy with the user friendly GIGABYTE eXtreme Hard Drive (X.H.D). GIGABYTE eXtreme Hard Drive (X.H.D) provides a quick and easy way to boost your hard drive performance simply by adding another hard drive.
  Integrated Memory Controller
Intel  Core i7 Processors feature triple channel DDR3 support
Intel Core i7 processors feature the memory controller integrated directly into the processor die, rather than as part of the Northbridge as in previous generations, allowing for faster memory performance. Core i7 processors also provide additional memory support including.
  QPI , QuickPath Interconnect
Replacing the role of FSB
Intel uses the QPI to connect internal components of Core i7 processors , and to connect the CPU itself to the Northbridge and banks of memory.

QPI delivers:
Up to 25.6GB/sec of bandwidth between Core i7 processors and the rest of the system,providing exactly double the bandwidth of 1600 Hz FSB
  Intel Turbo Boost Technology
Dynamically reroutes power to improve performance For situations when all cores are not needed for a particular workload, Intel Turbo Boost Technology powers down the idle cores and dynamically reroutes the power to the active cores, boosting their performance without wasting power. This allows the active cores to achieve significant overclocks.
  Multi-display support with 3 way CrossFireX and 3 way SLI
Flexible graphics capabilities - Up to 3 VGA cards are supported for either 3 way CrossFireX or 3 way SLI action, delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.


Hybrid Silent-Pipe 2

GA-X58A-UD7 motherboard now features the revolutionary new GIGABYTE Hybrid Silent-Pipe 2, a fusion thermal solution that combines GIGABYTE's proprietary screen cooling technology, external heat sink and liquid cooling with chipset water block to deliver maximum thermal performance.
  • Unique Screen Cooling thermal design effectively reduces the temperature around the CPU zone, and removes the heat between NB and SB area.
  • Liquid Cooling system featuring special waterblock design with an enlarged dissipating surface area for enhanced heat dissipation and optimum flow-rate.
  • High-Precision die forming technology utilized to increase the thermal conductivity of the material that makes up the heat sink.
  • High performance Copper Heat Pipe with sintered process designed for ultra efficient thermal conductivity.
  • External Heat Sink design utilizing a convection slot at the back of the chassis to increase thermal dissipation.
    Ultra Durable 3

Ultra Durable 3
GIGABYTE Ultra Durable 3 design, featuring 2 ounces of copper for both the Power and Ground layers which dramatically lowers system temperature by delivering a more efficient spreading of heat from critical areas of the motherboard such as the CPU power zone throughout the entire PCB. GIGABYTE's Ultra Durable 3 also lowers the PCB impedance by 50%, which helps to reduce electrical waste and further lowers component temperatures. A 2oz Copper layer design also provides improved signal quality and lower EMI (Electromagnetic Interference), providing better system stability and allowing for greater margins for overclocking... more
  Benefits of 2 oz Copper PCB
Cooler than traditional motherboards
Enhanced durability
Improved energy efficiency
Greater margins for overclocking... more

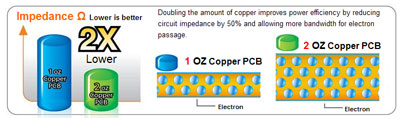

    2X Lower Impedance


In addition, doubling the amount of copper lowers the PCB impedance by 50%. Impedance is a measure of how much the circuit impedes the flow of current. The less the flow of current is impeded, the less amount of energy is wasted. For GIGABYTE Ultra Durable 3 motherboards, this means total PCB electrical waste is reduced by 50%, which also means less heat is generated. 2 ounces of copper also provides improved signal quality, providing better system stability and allowing for greater margins for overclocking.
  50,000 Hours Japanese Solid Capacitors
GIGABYTE Ultra Durable motherboards are equipped with solid capacitors developed by leading Japanese manufacturers. With an average lifespan of 50,000 hours, these solid capacitors provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games.

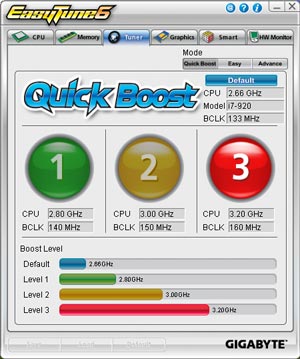

Quick and Effortless Overclocking with One Click

GIGABYTE Quick Boost provides 3 levels of CPU performance enhancement; a simple click on the desired level delivers quick and effortless overclocking for novice and experienced users alike.
  EasyTune6
GIGABYTE has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system.


DualBIOS - Patented Dual Hardware BIOS Protection

DualBIOS is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.


2 Gigabit LAN

High Velocity 2X Bandwidth Boost
  Hardware OverVoltage Control IC - Enabling Extreme Overclocking
GIGABYTE Hardware Overvoltage Control ICs featuring more voltage control options than before for the CPU North Bridge and memory. The overvoltage controllers also provide hardware linear real-time voltage control, which means there is no delay compared to the GPIO controller in past implementations. In addition, GIGABYTE's Hardware Overvoltage Controller ICs also allow for much finer voltage control, allowing power users to adjust voltage in as little increments as 20mV for better overclocking performance.
  Visible Overvoltage Reminder
Debug LED Embedded post code LED display simplifies motherboard signals and indicates system status
  OV-Alert LED
4 sets of OV-Alert LEDs indicate the overvoltage level of the CPU, Memory, North Bridge and South Bridge to prevent component damage.
  Visible Overclocking Reminder
OC-Alert LED indicates the level of CPU overclock from low to high.
  Visible Temperature Reminder
Two sets of Temperature Alert LEDs indicate the current temperature level of the CPU and North Bridge
    Onboard Quick Switches
Onboard Power, Clear CMOS and Reset buttons allow for quick and easy tweaking for power users working in an in chassis environment.
  Dolby Home Theater  - Enjoy a Rich Home Theater Surround Sound Experience
Dolby Home Theater places listeners in the middle of the action, giving their PCs a powerful set of tools to deliver a cinema-style experience in vivid surround sound.
  • Delivers vivid surround sound for music, movies, and games, using two to eight speakers or any set of headphones
  • Designed to automatically deliver the best possible listening experience

  Specifications
CPU
  1. Support for an Intel  Core i7 series processor in the LGA1366 package
    (Go to GIGABYTE's website for the latest CPU support list.)
  2. L3 cache varies with CPU
QPI
  1. 4.8GT/s, 6.4GT/s
Chipset
  1. North Bridge: Intel  X58 Express Chipset
  2. South Bridge: Intel  ICH10R
Memory
  1. 6 x 1.5V DDR3 DIMM sockets supporting up to 24 GB of system memory(Note 1)
  2. Dual/3 channel memory architecture
  3. Support for DDR3 2200/1333/1066/800 MHz memory modules
  4. Support for non-ECC memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules
(Go to GIGABYTE's website for the latest memory support list.)
Audio
  1. Realtek ALC889 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for Dolby  Home Theater
  5. Support for S/PDIF In/Out
  6. Support for CD In
LAN
  1. 2 x RTL8111D chip (10/100/1000 Mbit)
  2. Support for Teaming
  3. Support Smart Dual LAN
Expansion Slots
  1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1/PCIEX16_2) (Note 2)
  2. 2 x PCI Express x16 slot, running at x8 (PCIEX8_1/PCIEX8_2) (Note 3) (The PCIEX16_1, PCIEX16_2, PCIEX8_1 and PCIEX8_2 slots conform to PCI Express 2.0 standard.)
  3. 2 x PCI Express x1 slots
  4. 1 x PCI slot
Multi-Graphics Technology
  1. Support for 2-Way/3-Way ATI CrossFireX/NVIDIA SLI technology
Storage Interface South Bridge:
  1. 6 x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices
  2. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
Marvell 9128 chip:
  1. 2 x SATA 6Gb/s connectors (GSATA3_6, GSATA3_7) supporting up to 2 SATA 6Gb/s devices
  2. Support for SATA RAID 0, and RAID 1
GIGABYTE SATA2 chip:
  1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  2. 2 x SATA 3Gb/s connectors (GSATA2_8, GSATA2_9) supporting up to 2 SATA 3Gb/s devices
  3. Support for SATA RAID 0, RAID 1, and JBOD
JMicron JMB362 chip:
  1. 2 x eSATA 3Gb/s connectors (eSATA/USB Combo) on the back panel sup- porting up to 2 SATA 3Gb/s devices
  2. Support for SATA RAID 0, RAID 1, and JBOD
iTE IT8720 chip:
  1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
USB Integrated in the South Bridge
  1. Up to 10 USB 2.0/1.1 ports (6 on the back panel, including 2 eSATA/USB Combo, 4 via the USB brackets connected to the internal USB headers)
NEC chip:
  1. Up to 2 USB 3.0/2.0 ports on the back panel
IEEE 1394
  1. T.I. TSB43AB23 chip
  2. Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x floppy disk drive connector
  4. 1 x IDE connector
  5. 8 x SATA 3Gb/s connectors
  6. 2 x SATA 6Gb/s connectors
  7. 1 x CPU fan header
  8. 3 x system fan headers
  9. 1 x power fan header
  10. 1 x North Bridge fan header
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x CD In connector
  14. 1 x S/PDIF In header
  15. 1 x S/PDIF Out header
  16. 2 x USB 2.0/1.1 headers
  17. 1 x IEEE 1394a header
  18. 1 x power button
  19. 1 x reset button
Back Panel Connectors
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x coaxial S/PDIF Out connector
  4. 1 x optical S/PDIF Out connector
  5. 1 x clearing CMOS button
  6. 2 x IEEE 1394a ports
  7. 4 x USB 2.0/1.1 ports
  8. 2 x USB 3.0 ports
  9. 2 x eSATA/USB Combo connectors
  10. 2 x RJ-45 port
  11. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
  1. iTE IT8720 chip
H/W Monitoring
  1. System voltage detection
  2. CPU/North Bridge temperature detection
  3. CPU/System/Power fan speed detection
  4. CPU overheating warning
  5. CPU fan fail warning
  6. CPU/System fan speed control (Note 4)
BIOS
  1. 2 x 16 Mbit flash
  2. Use of licensed AWARD BIOS
  3. Support for DualBIOS
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
  1. Support for @BIOS
  2. Support for Q-Flash
  3. Support for Xpress BIOS Rescue
  4. Support for Download Center
  5. Support for Xpress Install
  6. Support for Xpress Recovery2
  7. Support for EasyTune (Note 5)
  8. Support for Dynamic Energy Saver 2
  9. Support for Smart 6
  10. Support for Auto Green
  11. Support for eXtreme Hard Drive
  12. Support for Q-Share
Bundle Software
  1. Norton Internet Security (OEM version)
Operating System
  1. Support for Microsoft  Windows  7/Vista/XP
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
Note (Note 1) Due to Windows Vista/XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.
(Note 3) The PCIEX8_1 and PCIEX8_2 slots share bandwidth with the PCIEX16_1 and PCIEX16_2 slots espectively. When PCIEX8_1 is populated with an expansion card, the PCIEX16_1 slot will operate at up to x8 mode; when PCIEX8_2 is populated with an expansion card, the PC IEX16_2 slot will operate at up to x8 mode.
(Note 4) Whether the CPU/system fan speed control function is supported will depend on the CPU/ system cooler you install.
(Note 5) Available functions in EasyTune may differ by motherboard model.
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* All trademarks and logos are the properties of their respective holders.

* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

No additional files, specification sheets, guides or documentation found for product.

No related products found.

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers (Gigabyte) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

[ There are no visitor reviews for this product yet]

Review Product
Click on a thumbnail to view it below

L7: 1 | TM: 3 | LM: 5 | TY: 43 | T: 6832

Techbuy custom systems are manufactured to your specifications and throughly tested in-house before being dispatched to you.

Simply plug in your brand new system and get down to work with minimal fuss.

Custom Systems

Custom Servers

As an Intel Gold Technology Provider we provide turn key solutions for all your server and cabinent needs. If you are unsure what you need contact our server expert using our contact form.

Techbuy Severs

Need networking equipment? You have come to the right place! Techbuy offers a large range of networking gear, from small switches and routers for home users to enterprise grade switching solutions and fibre cabling.

Visit Networking
TechBuy Product List

Hardware & Peripherals

PC Parts & Peripherals
More Computer Products
Shop by Brand >>

Reference Tools

Finance & Cashback Deals

flexirent powerbuy

Sister Sites

TechTronics logo Camera Farm Logo

Secure Online Shopping

We accept the following with No surcharge on VISA, Mastercard and Paypal!
Techbuy Pty Ltd 2000 - 2014 All rights reserved.
All prices shown on techbuy.com.au are in $AUD and inclusive of GST. Prices and availability are subject to change without prior notice. Images displayed are accurate to the best of our knowledge and we will not be held responsible for purchases based soley on these images. All brands and names are trademarks of their respective companies. Shipping Australia wide to all metro and regional areas (Sydney, Melbourne, Brisbane, Adelaide, Perth) and Internationally. For more information, please see our usage policies. Techbuy, Sample Product Reviews
