ASUS 2xUSB3.0 + 2xSATA-III Bridge Chip Card Upgrade Kit - PCI-Ex4 - OEM

IMG 1 of 3
No Longer Available
Part Number:
130919
(?) Brand:
ASUS Web Site
Manuf No:
U3S6
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
U3S6, ACCASUMBD01T

Product Overview

Future Transfer Technology

True SATA 6Gb/s Support

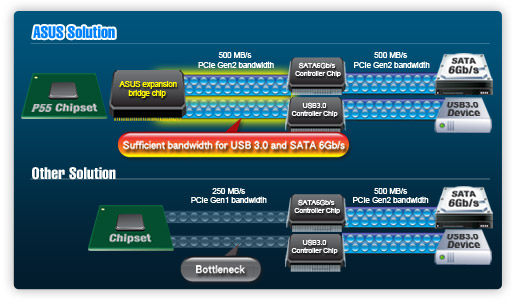

Unique PCIe x4 Bridge Chip for Ultra Performance
Supporting next-generation Serial ATA (SATA) storage interface, this motherboard delivers up to 6.0Gbps data transfer rates. Additionally, get enhanced scalability, faster data retrieval, double the bandwidth of current bus systems.


True USB 3.0 Support

Unique PCIe x4 Bridge Chip for Ultra Performance
Experience ultra-fast data transfers at 4.8Gbps with USB 3.0--the latest connectivity standard. Built to connect easily with next-generation components and peripherals, USB 3.0 transfers data 10X faster and is also backward compatible with USB 2.0 components.

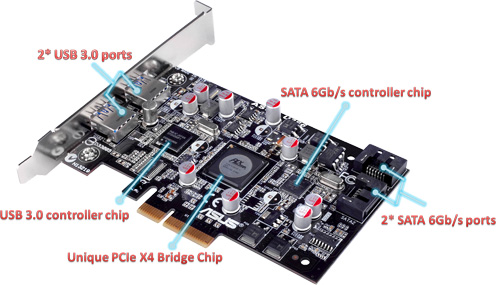

ASUS U3S6 x4 with Bridge

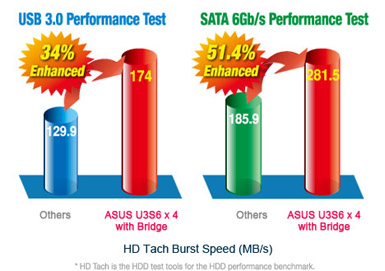

Maximum Bandwidth to Full Unleash USB 3.0 & SATA 6Gb/s Performance!

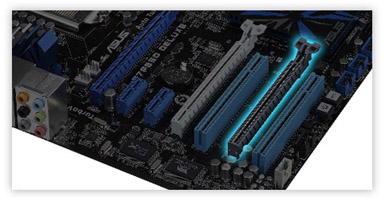

To get maximum bandwidth

Insert ASUS U3S6 to this PCIe slot to get maximum bandwidth

Compatible Models

  • Maximus III Formula
  • P7P55D Deluxe
  • P7P55D EVO
  • P7P55D PRO
  • P7P55D
  • P7P55D LE
  • P7P55 LX

Specifications

Internal Connectors 2 x SATA 6Gb/s ports support of up to 2 SATA disk drives.
Backward compatible with SATA 3Gb/s and SATA 1.5Gb/s hard disk drives.
External Connectors 2 x USB 3.0 ports.
Backward compatible with USB 2.0/1.1 interface.
Interface PCI Express x4 interface
Compatible with PCI Express x4, x8, and x16 slots
Configuration Supported AHCI Mode
Operating Systems Supported Windows 7/Vista/XP 32/64bit
Compatible Models Maximus III Formula
P7P55D Deluxe
P7P55D EVO
P7P55D PRO
P7P55D
P7P55D LE
P7P55 LX
Features True SATA 6Gb/s & USB 3.0: Native support PCIe Gen2 bandwidth
Support Hot Plug function
Support Native Command Queuing (NCQ)
Form Factor 4.8x 3 (12.2cm x 7.6cm)
The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
  • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
  • PCB color and bundled software versions are subject to change without notice.
  • Brand and product names mentioned are trademarks of their respective companies.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.
