Product Features

  • 150Mbps High Speed*
  • Broadcom Accelerange deliver 300%* Signal coverage.
  • CD-Free Installation: Simply launch the browser and automatically guide user to link to Internet.
  • Manual-Free Management: Web-based network map help user easily manage the network.
  • 2-Network-in-1: Provide extra network for prioritized bandwidth and access control

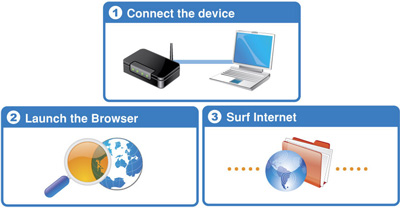

QIS(Quick Internet Setup)-3 Steps Internet Connection

Simply connect any Internet device to wireless router and QIS wizard will guide user to quickly link to Internet.

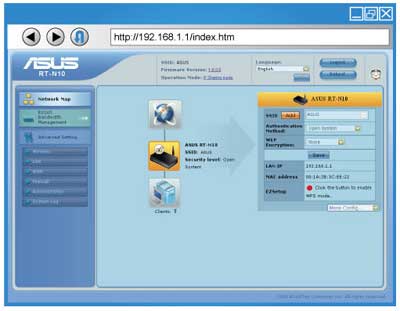

Network Map-Manual Free Management

Straight-forward design to help users to:
  • Display the whole network status and clearly provide WAN/LAN status
  • Securely connect to your wireless network and prevent intruders from using it
  • Manage your network in minutes

Dr. Surf

Dr. Surf, your personal wireless doctor, can automatically offer real-time diagnostics. Auto-detect Connection Problems.
  • If there is any problem for internet connection, Dr. Surf can auto-detect and provide possible solutions.
  • Ex. Your cable is not connect with the router.

2-Network-in-1: Provide Extra Networks

The RT-N10 can provide two wireless networks which feature dynamic bandwidth allocation and access control. You can allow guests to access the Internet without sharing your password and private network devices by creating a virtual wireless router for guest. Keep the high bandwidth and secure private network for yourself.

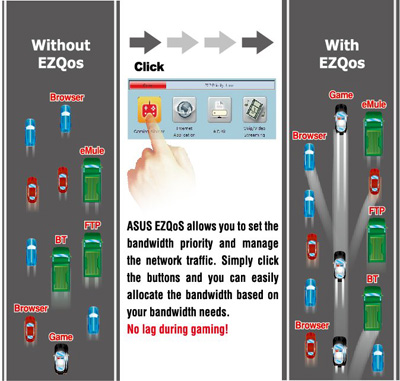

EZQoS - Quality of Service

TWith ASUS unique EZQoS engine, users can easily allocate bandwidth according to their individual needs by simply clicking on the buttons, such as voice or gaming, and assign more or less bandwidth to streamline multiple network activities (FTP, Games, P2P) to work smoothly at the same time



Specifications

Network Standard IEEE802.11b, IEEE802.11g, IEEE802.11n-compatible IEEE802.11d, IEEE802.3, 802.3u, 802.11i, 802.11e, IPv4
Features
  • EZQoS(Easy Quality of service)Allow multiple network activities (FTP, Game, P2P) to work smoothly at the same time
  • Smart Wizard browser-based administration
  • Remote management
  • Save/restore configuration files
  • Upgrades via web browser
  • Firmware restoration
  • Device discovery
  • DHCP server, WAN DHCP client
Interface
  • WAN: 1 x RJ45 for 10/100 BaseT;
  • LAN: 4 x RJ45 for 10/100 BaseT; Support Ethernet and 802.3 with max. bit rate 10/100Mbps and auto cross-over function (MDI-X)
  • Restore button: Push for 5 seconds to restore factory setting
  • EZSetup button: Automatically SSID and WEP or WPA configuration
Antenna 1 X external detachable dipole antenna
1 X internal PCB antenna
Operating Frequency 2.4~2.5GHz
Operating Channels 11 for N.America, 13 for EU, 14 for Japan
Data Rate
  • 802.11n Draft 2.0 up to 150Mbps*
  • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
  • 802.11b: 1, 2, 5.5, 11Mbps
Output Power
  • n mode:15~17dBm
  • g mode:15~17dBm
  • b mode: 16~18dBm
LED Indicator Power x 1, AIR x 1, WAN x 1, LAN x 4
Utilities
  • Device Discovery: Discover router in network and help user to invoke Web Configuration page
  • EZSetup: Help you to setup wireless and Internet connection easily
  • Firmware Restoration: Restore firmware while system enters rescue mode
Security
  • Firewall: NAT and SPI (Stateful Packet Inspection), intrusion detection including logging
  • Logging: Dropped packet, security event, Syslog
  • Filtering: Port, IP packet, URL Keyword, MAC address
  • Encryption: 64/128-bit WEP, WPA, WPA2, TKIP, AES, WPA-PSK, WPA2-PSK
  • Authentication: MAC address Access Control
Power AC input: 100V~240V(50~60HZ);
DC output: 9V with max. 1A current or 5V with max. 1.2A current
Physical Specifications Dimensions: 165 X 115 X 30(L x W x H)mm
Weight: 260g
Environmental Specification
  • Operating Temperature: 0C to 40C (32F to 104F)
  • Storage Temperature: -20 to 70 C (-4F to 158F)
  • Operating Humidity: 10% to 90% RH (Non-condensing)
  • Storage Humidity: 5% to 95% RH (Non-condensing)
Package Contents
  • RT-N10 * 1
  • RJ45 Cable * 1
  • Support CD * 1
  • Antenna * 1
  • Warranty Card * 1
  • Power Supply * 1
