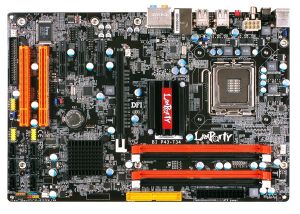

DFI LANPARTY BI-P43-T34 Motherboard
  • LGA775, P43, ICH10, 1333FSB, 4xDDR3-1333, 1xPCI-Ex16 v2.0, 6xSATA-II, 1xATA-100, 1xGigLAN, 8Chl-HD, ATX

IMG 1 of 1
No Longer Available
Part Number:
131136
(?) Brand:
DFI Web Site
Manuf No:
LANPARTY BI-P43-T34
LANPARTY BIP43T34
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
LANPARTYBIP43T34, LANPARTY BI-P43-T34
Intel P43 with ICH10





Supports the Intel Core 2 Duo / Quad processors in the LGA 775 Package





ABSII, CPU Upgrade Automatically



Without any complicated set-up steps, when boosting your system at the first time, ABS II will automatically detect the CPU installed and upgrade the efficiency of the CPU. Briefly speaking, consumers can enjoy high efficiency of high-class CPU with low cost of middle-class CPU.

4 Phase Digital PWM





Realtek ALC885 for 7.1 CH HD Audio





6 SATAII Ports





Gigabit LAN by JMC250





Genie BIOS



Genie BIOS is the best BIOS in the world. There are hundreds of setting of CPU, memory, FSB, multiple, and great voltage setting with the most intervals.

CMOS Reloaded



"CMOS Reloaded" helps you to backup or reload BIOS setting as text file under operation system. Wanna manage your OC records? Just try "CMOS Reloaded"

1 PCIe x16, 3 PCIe x1, 2 PCI





12 USB2.0 ports





LANPARTY BI P43-T34

CPU
  • LGA 775 socket for:
    - Intel Core2 Quad and Intel Core2 Duo
  • Supports Intel Enhanced Memory 64 Technology (EMT64T)
  • Supports Enhanced Intel SpeedStep Technology (EIST)
  • Supports Intel Hyper-Threading Technology
FSB/QPI/HT
  • 1333/1066/800MHz FSB
Chipset
  • Intel chipset
    - Northbridge:
    Intel P43 Express chipset
    Intel Fast Memory Access technology
    - Southbridge:
    Intel ICH10
System Memory
  • Four 240-pin DDR3 DIMM sockets
  • Supports DDR3 1333(O.C.)/1066/800 MHz
  • Supports up to 8GB system memory
  • Delivers up to 21Gb/s bandwidth at 1333MHz
  • Supports dual channel (128-bit wide) memory interface
  • Supports x8/x16 non-ECC unbuffered DIMMs
Expansion Slots
  • 1 PCI Express (Gen 2) x16 slot
  • 3 PCI Express x1 slots
  • 2 PCI slots
BIOS
  • Award BIOS
  • 8Mbit SPI flash BIOS
  • CMOS Reloaded
Audio
  • Realtek ALC885 High Definition audio CODEC
  • 8-channel audio output
  • DAC SNR/ADC SNR of 106dB/101dB
  • Full-rate lossless content protection technology
  • Optical S/PDIF-out and coaxial RCA S/PDIF-out interfaces
LAN
  • JMC250 PCIE Gigabit LAN controller
  • Fully compliant to IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX) and 802.3ab (1000BASE-T) standards
Serial ATA
  • Supports up to 6 SATA devices
  • SATA speed up to 3Gb/s
IDE
  • JMicron JMB368 PCI Express to PATA host controller
  • Supports up to 2 UltraDMA 100Mbps IDE devices
Rear Panel I/O
  • 1 mini-DIN-6 PS/2 mouse port
  • 1 mini-DIN-6 PS/2 keyboard port
  • 1 optical S/PDIF-out port
  • 1 coaxial RCA S/PDIF-out port
  • 1 Clear CMOS jumper
  • 6 USB 2.0/1.1 ports
  • 1 RJ45 LAN port
  • Center/subwoofer, rear R/L and side R/L jacks
  • Line-in, line-out (front R/L) and mic-in jacks
Internal I/O
  • 3 connectors for 6 additional external USB 2.0 ports
  • 1 connector for an external COM port
  • 1 front audio connector
  • 1 S/PDIF connector
  • 1 CD-in connector
  • 1 IrDA connector
  • 6 Serial ATA connectors
  • 1 40-pin IDE connector
  • 1 floppy connector
  • 1 24-pin ATX power connector
  • 1 8-pin 12V power connector
  • 1 front panel connector
  • 4 fan connectors
  • 1 download flash BIOS connector
Power Management
  • ACPI and OS Directed Power Management
  • ACPI STR (Suspend to RAM) function
  • Wake-On-PS/2 Keyboard/Mouse
  • Wake-On-USB Keyboard
  • Wake-On-LAN
  • RTC timer to power-on the system
  • AC power failure recovery
Hardware Monitor
  • Monitors CPU/Chipset/PWM temperature and overheat alarm
  • Monitors CPU Core / DRAM / NB Core / CPU VTT / +3.3V / +5.0V / +12V / 5V Standby voltages
  • Monitors the speed of the cooling fans
  • CPU Overheat Protection function monitors CPU temperature and fan during system boot-up - automatic shutdown upon system overheat
PCB
  • 4 layers, ATX form factor
  • 20.5cm (8.07) x 30.5cm (12)
All specifications above are subject to change without prior notice.
