All stock codes associated to this product
111630041R, 11163-00-41R, VGASAP1G057C
SAPPHIRE VAPOR-X HD5770 1GB GDDR5 PCIE
SAPPHIRE Technology is now shipping a new graphics card in the highly successful HD 5000 series the SAPPHIRE HD 5770 Vapor-X, delivering the same value for money performance as the standard model, whilst working at lower operating temperatures and significantly more quietly.
The SAPPHIRE HD 5770 Vapor-X is based on the latest graphics architecture from the ATI division of AMD, the second generation of GPU to be built in its 40nm process. It supports the advanced graphical features of DirectX 11, and delivers spectacular video clarity, speed and visual effects, including over multiple monitors using ATI Eyefinity. |
Vapor-X Cooling

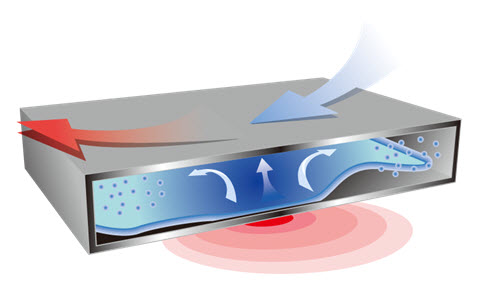

Vapor Chamber Technology is based on the same principles as heatpipe technology. A liquid coolant is vaporised at a hot surface, the resulting vapor is condensed at a cold surface then the liquid is returned to the hot surface. The recirculation process is controlled by a patented wick system.
SAPPHIRE Vapor-X flattens the whole system into a slim chamber - which in the graphics application is mounted in contact with the surface of the graphics chip.
Expand
Expand your visual real estate with ATI Eyefinity Technology, with revolutionary multi-display capabilities that let you see more and get more done.
ATI Eyefinity technology maximizes your field of view across up to three displays, fully engaging your peripheral vision and putting you right IN the game.

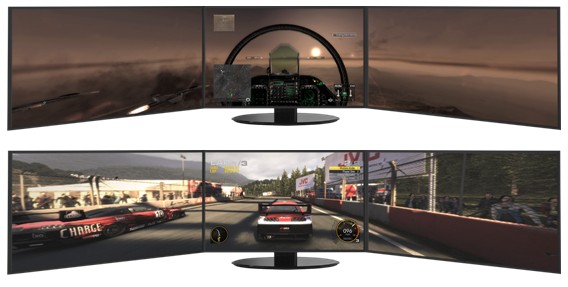

- Flight Sim and Racing Games:
Create the ultimate flight or racing simulation platform by extending supported games across multiple displays for a panoramic view that gives you a true sense of height and speed.
- Role-playing Games (RPG):
Get a birds-eye view and spread out game information across multiple screens and still stay in the center of the action.
- Real-time strategy (RTS):
See more of the battlefield without having to zoom.
- First-Person Shooter (FPS):
Get a better view of whats going on around you, use your peripheral vision so you can see the enemy before they see you.

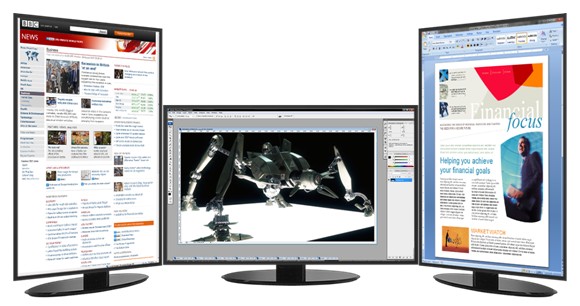

Help increase productivity by maximizing your visual workspace so you can see more Windows simultaneously
The perfect solution for your home or office, ATI Eyefinity technology makes multi-tasking a snap by eliminating the need to flip between windows. Surf the internet, do email, edit photos or videos, track your stocks and much more all at the same time.
ATI Eyefinity technology is ideal for multimedia applications; it allows you to keep several palettes or panels open while you edit images or videos.
Accelerate
Perform tasks on a PC faster with ATI Stream technology, speed up demanding everyday applications and get more done in less time.
Unleash the massive parallel processing power of your GPU to help you do more with your PC than ever before.
With multimedia softwares that support ATI Stream, users can enjoy fast video encoding and transcoding so video playback, editing and transferring content to portable media players is quick and easy.
DirectCompute presents even more opportunities for you to take advantage of your ATI Radeon HD 5700 Series GPU for tasks other than just rendering
- DirectCompute, helps improve PC performance by taking on some or all of a DirectX 11-enabled applications processing load, freeing up the computers mainprocessor to take on additional tasks.
- DirectX 11-enabled applications are designed for fast performance on your PC running Windows 7. In addition, programs designed for Windows 7 can convert a digital media file to a different size or format can perform a faster conversion (i.e. transcode) under Windows 7 than under previous versions of WIndows.
- Windows 7 with built-in drag and drop transcoding is a great example how ATI Radeon HD 5700 Series GPUs provide an exceptional experience for the upcoming operating system.
- High performance anisotropic filtering and 24x custom filter anti-aliasing (CFAA) smooth jagged edges and create true-to-life graphics, for everything from grass to facial features.
Dominate
With DirectX 11 support you can play the latest HD games with unrivalled visual quality, astonishing realism and ultra-fast frame rates.
Get unrivalled visual quality and intense gaming performance and for today and tomorrow with support for Microsoft DirectX 11
- ATI Radeon HD 5700 Series graphics accelerators and software drivers are the first to offer full support for Microsoft DirectX 11.
- Get striking 3D visual effects and dynamic interactivity with DirectX 11 support, including features like HDR Texture Compression, DirectCompute and Tessellation.
- DirectX 11 brings new levels of visual realism to gaming on the PC and youll get top-notch performance for these titles with ATI Radeon HD 5700 Series GPUs.
Get AMDs most advanced technology and massive compute power with ATI Radeon HD 5700 Series GPUs
- Experience the speed, responsiveness and performance of ultra-high bandwidth GDDR5memory.
- Get up to 1.8X of a graphics performance boost with ATI CrossFireX technology in dual mode.
- Unparalleled anti-aliasing (AA) and enhanced anisotropic filtering deliver slick graphics with remarkable realism.
ATI Radeon HD 5700 Series GPUs are designed to deliver all the benefits of Microsoft Windows 7
Engineered to take advantage of all the graphical features within the new Windows 7 operating system, ATI Radeon HD 5700 Series GPUs deliver a visually compelling experience and a fast, responsive PC.
Exclusive Software Bundle
A Plug-in For Higher Quality Video and Audio In Video
Conference/Chat.
- Supports MSN, Yahoo Messenger and Skype
- Supports Windows XP, Windows Vista, and Windows 7
- Supports ATi Stream
Upscale and enhance the video/audio quality for instant messenger softwares
Remark
- SKU 11163-00-50R is bundled with ArcSoft SIMHD IM
Valuable Game Bundle
SKU 21163-00-50R is bundled with Dirt2 Coupon
Sapphire Vapor-X HD 5770 System Requirements
- PCI Express based PC is required with one X16 lane graphics slot available on the motherboard
- 450 Watt or greater power supply with 1x 75W 6-pin PCI Express power connector recommended (600 Watt and two 6-pin connectors for ATI CrossFireX Technology in dual mode)
- Certified power supplies are recommended. Refer to https://ati.amd.com/certifiedPSU for a list of Certified products
- Minimum 1GB of system memory
- Installation software requires CD-ROM drive
- DVD playback requires DVD drive
- Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive
- For an ATI CrossFireX system, a second ATI Radeon HD 5750 graphics card, an ATI CrossFireX Ready motherboard and one ATI CrossFireX Bridge Interconnect cable per graphics card (optional) are required3
Features
| Vapor-X Cooling Technology |
 |
Microsoft DirectX 11 Support
Shader Model 5.0 Support
DirectCompute 11
Programmable hardware tessellation unit
Accelerated multi-threading
HDR texture compression
Order-independent transparency
|
|
ATI Eyefinity Technology(A.B.) |
|
40 nm Process Technology |
|
800 Stream Processing Units |
|
Advanced 1GB/128-bit GDDR5 Memory Technology |
|
2nd Generation TeraScale Engine |
|
Microsoft Windows 7 Support(E.) |
|
ATI CrossFireX Technology(C.) |
|
Display Flexibility, Supports DL-DVI, DP, HDMI and D-Sub |
|
HDMI 1.3 support with Deep Color and 7.1 High Bitrate Audio |
|
AC-3, AAC3, Dolby TrueHD and DTSHD Master Audio TM Support |
|
Dynamic power management with ATI PowerPlay technology including memory clocks (D.) |
|
ATI Avivo Technology Enhanced Unified Video Decoder 2 (UVD 2)(D.)
ATI Unified Video Decoder 2 (UVD) for Blu-ray and HD Video.
Accelerated Video Transcoding (AVT)
DVD Upscaling
Dynamic Contrast
Built-in HDMI with 7.1 surround sound support
Support for H.264, VC-1 and MPEG-2
Dual Stream 1080p playback support (H.)
DXVA 1.0 & 2.0 support
|
|
Supports OpenGL 3.2(F.) |
|
3D stereoscopic display/glasses support (G.) |
|
On chip HDCP Support |
|
Remarks
A. Driver version 8.66 (Catalyst 9.10) or above is required to support ATI Eyfinity technology and to enable a third display you require one panel with a DisplayPort connector
B. ATI Eyefinity technology works with games that support non-standard aspect ratios which is required for panning across three displays
C. ATI CrossFireX technology requires an ATI CrossFireX Ready motherboard, an ATI CrossFireX Bridge Interconnect (for each additional graphics card) and may require a specialized power supply
D. ATI PowerPlay and ATI Avivo are technology platforms that include a broad set of capabilities offered by certain ATI Radeon HD GPUs. Not all products have all features and full enablement of some capabilities and may require complementary products
E. To support Window 7, a Windows7-capable system is required.
F. OpenGL 3.2 driver support scheduled in 2010.
G. Requires 3D stereo drivers, glasses, and display
H. Requires Blu-Ray movie disc supporting dual 1080p streams |
Specifications
|
I/O Output: Dual DL-DVI-I+DP+HDMI, Triple Display Support |
|
Core Clock: 860 MHz |
|
Memory Clock: Effective 4800 MHz |
|
PCI Express 2.1 x16 bus interface PCI-E x16 |
|
1024MB /128bit GDDR5 memory interface |
|
Dual Slot Cooler with Auto Fan Control |
|
On-board HDMI, supports HDMI 1.3 with High Bitrate Audio |
|
On-board DisplayPort |
|
Maximum Board Power: 108 Watt; Idle Board Power: 18 Watt |
