XFX 650W XXX Edition - ATX 12V v2.2, EPS 12V v2.91, 135mm Fan, Modular Cables, SLI Ready, 80 PLUS Bronze Certified
  • 6xSATA, 2xPCI-E 6+2-Pin, 2xPCI-E 6-Pin

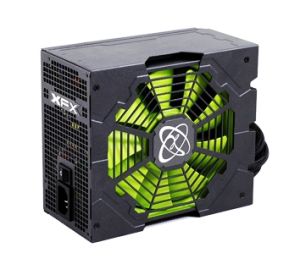

IMG 1 of 1
No Longer Available
Part Number:
132023
(?) Brand:
XFX Web Site
Manuf No:
P1-650X-CAG9
P1650XCAG9
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
P1650XCAG9, P1-650X-CAG9

NEXT GENERATION POWER SUPPLY

XFX 650WXXX Edition Modular PSU (P1-650X-CAG9)

Designed specifically for the performance gamer, the 650W XXX Edition PSU supports multiple high-end graphics cards. Offering an array of unparalleled features, the 650W PSU delivers exceptional performance



Benefits



  • Specifically designd to support multiple, high-end graphic adapters
  • Single, high-power +12V rail eliminates the problems associated with multiple +12V power distribution
  • Industrial grade components insure high reliability and long life
  • High efficiency not only helps protect the environment but also allows the XFX 650W PSU to run cool and quiet
  • Combining both fixed and modular cables delivers superior performance and flexibility

KEY FEATURES

  • 650W of continuous power at 50C
  • Tight voltage regulation (3%)
  • High efficiency operation up to 85% (80 Plus Bronze)
  • Single, high power +12V rail (up to 52A/624W)
  • DC to DC voltage Regulator modules for +3.3V and +5V
  • High quality Japanese brand capacitors (105C)
  • Solid polymer caps provide enhanced reliability and stability
  • Quiet 135mm ball bearing fan provides superior cooling
  • Supports multiple high-end graphic adapters (NVIDIA SLI & ATI CrossFire Ready)
  • Supports the latest ATX12V and EPS12V standards
  • Active PFC with Universal AC input
  • Detachable modular cables
  • Energy Star 4.0 and RoHS compliant
  • 5-Year Limited Warranty
AC INPUT 100-240VAC, 12-6A, 50/60Hz
DC Output
+3.3V +5V +12V -12V +5VSB
24A 30A 52A 0.8A 3A
150W Max 624W 9.6W 15W
650W

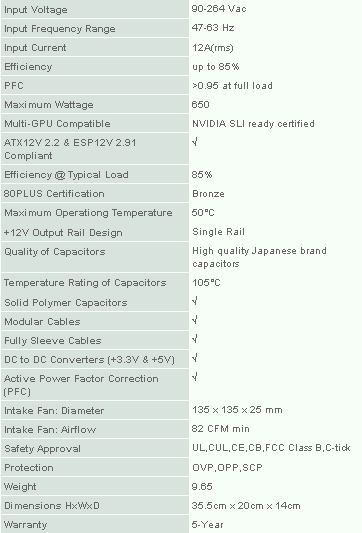

Specifications



Cables and Connectors

Fixed Cables/Connectors
(1) Main Power ATX 20+4-pin
(1) ATX 12V 4+4-pin
(1) EPS12V 8-pin
(2) PCI-E 6+2-pin and (2) PCI-E 6-pin

Modular Cables/Connectors
(2) PCI-E 6-pin
(2) Serial ATA 15-pin up to6 conectors
(1)Peripheral 4-pin up to3 connectors
(1) FDD 4-pin up to1 connectors




No additional files, specification sheets, guides or documentation found for product.

Warranty: 5-year Manufact.

Full manufacturers warranty details are available at the manufacturers (XFX) web site.
