| Network Standard |
IEEE802.11b, IEEE802.11g, IEEE802.11n, IEEE802.11d, IEEE802.3, 802.3u, 802.11i, 802.11e, IPv4 |
| Features |

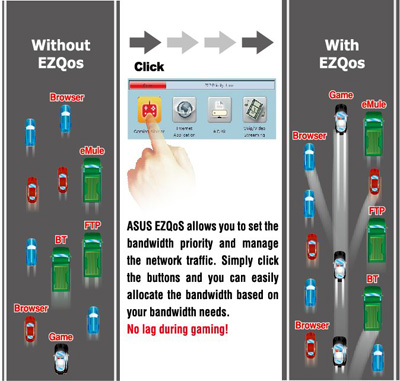

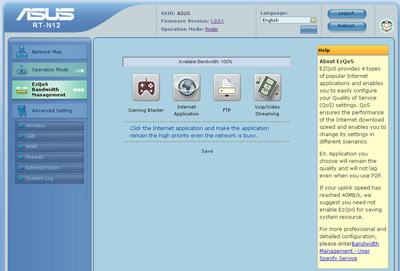

- EZQoS(Easy Quality of service)Allow multiple network activities (FTP, Game, P2P) to work smoothly at the same time

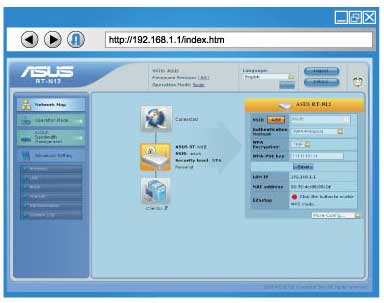

- Smart Wizard browser-based administration
- Remote management: Save/restore configuration files; Upgrades via web browser
- Firmware restoration
- Device discovery
- DHCP server, WAN DHCP client

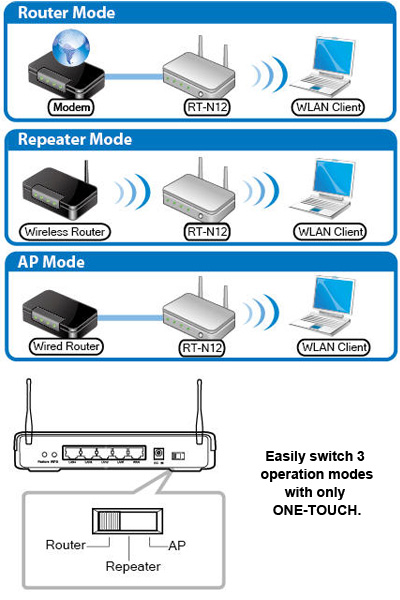

- EZ switch for operation change
|
| Interface |
- WAN: 1 x RJ45 for 10/100 BaseT;
- LAN: 4 x RJ45 for 10/100 BaseT; Support Ethernet and 802.3 with max. bit rate 10/100Mbps and auto cross-over function (MDI-X)
- Restore button: Push for 5 seconds to restore factory setting
- EZSetup button: Automatically SSID and WEP or WPA configuration
|
| Antenna |
2 external detachable dipole antenna |
| Operating Frequency |
2.4~2.5GHz |
| Operation Channel |
11 for N.America, 13 for EU, 14 for Japan |
| Data Rate |
- 802.11n Draft 2.0 up to 300Mbps*
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
- 802.11b: 1, 2, 5.5, 11Mbps
|
| Output Power |
- n mode:15.8~19.5dBm
- g mode:15.5~16.5dBm
- b mode: 15.8~19.5dBm
|
| LED Indicator |
Power x 1, AIR x 1, WAN x 1, LAN x 4 |
| Utilities |
- Device Discovery: Discover router in network and help user to invoke Web Configuration page

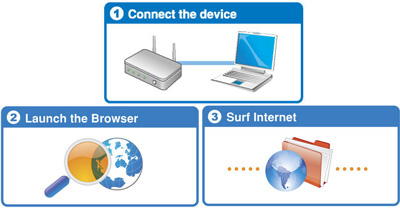

- EZSetup: Help you to setup wireless and Internet connection easily
- Firmware Restoration: Restore firmware while system enters rescue mode
|
| Security |
- Firewall: NAT and SPI (Stateful Packet Inspection), intrusion detection including logging
- Logging: Dropped packet, security event, Syslog
- Filtering: Port, IP packet, URL Keyword, MAC address
- Encryption: 64/128-bit WEP, WPA, WPA2, TKIP, AES, WPA-PSK, WPA2-PSK
- Authentication: MAC address Access Control
|
| Power Adapter |
AC input: 100V~240V(50~60HZ);
DC output: 12V with max. 1A current or 9V with max 1A current |
| Physical Specifications |
Dimensions: 179 X 119 X 37(L x W x H)mm
Weight: 300g |
| Environmental Specification |
- Operating Temperature: 0C to 40C (32F to 104F)
- Storage Temperature: -20 to 70 C (-4F to 158F)
- Operating Humidity: 10% to 90% RH (Non-condensing)
- Storage Humidity: 5% to 95% RH (Non-condensing)
|
| Package Contents |
- RT-N12 * 1
- RJ45 Cable * 1
- Support CD * 1
- Antenna * 2
- Warranty Card * 1
- Power Supply * 1
|
