SAPPHIRE HD5970 2GB GDDR5 PCIE (OC Edition)
|
SAPPHIRE HD 5970 OC, the fastest graphics card ever!
World leading graphics supplier, SAPPHIRE Technology, now introduces the worlds fastest graphics card, the SAPPHIRE HD 5970 OC Edition. With twice the computing power of the highly acclaimed SAPPHIRE HD 5870, the new HD 5970 model shares all the exciting features of this family including support for the DirectCompute 11 instruction set of Microsoft DirectX 11, hardware tessellation and multi threaded communication with the system CPU. It also supports the acceleration of applications supported by ATI Stream, and the ability to display across three monitors simultaneously with ATI Eyefinity. The SAPPHIRE HD 5970 OC Edition ships with enhanced clock speeds of 735MHz core and 1010MHz (4.04GHz effective) - faster than the standard model, making the SAPPHIRE HD 5870 OC the fastest card in its class, and the fastest in the world*. Enthusiasts will also be able to tune performance of these SAPPHIRE cards using the SAPPHIRE Redline voltage tweaker tool** to enable higher levels of overclocking. With 2GB of fifth generation GDDR5 memory and a new architecture with a total of 3200 stream processors and 160 texture units the SAPPHIRE HD 5970 OC is lightning fast with existing DirectX10.1, DirectX 10 and DirectX 9.0 games and applications, and will support stunning new levels of detail, transparency and lighting effects in new releases of software using DirectX 11. All of this comes with a modest active power consumption and ATI Powerplay Dynamic Power Management to achieve super-low power consumption in 2D and idle modes. These cards incorporate the latest architectural features from the ATI division of AMD in order to fully support Microsoft DirectX 11, including DirectCompute 11 instructions, hardware Tessellation and multi-threaded communications with the system CPU. These combine to provide new capabilities such as the interaction between transparent objects, new lighting and accelerated post processing effects as well as supporting ATI Stream for accelerating applications such as video transcoding.
|
Expand
Get truly immersive entertainment (gaming and video) experience and help boost productivity (home and office) with ATI Eyefinity Technology, extreme multi-monitor support.
ATI Eyefinity technology maximizes your field of view across up to three displays, fully engaging your peripheral vision and putting you right IN the game.

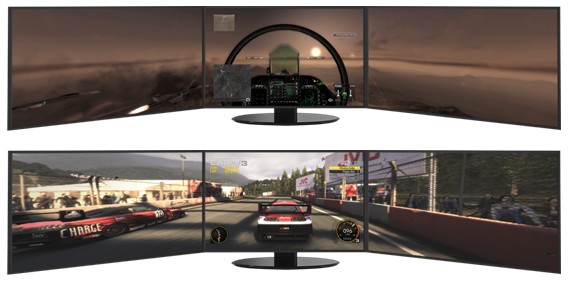

- Flight Sim and Racing Games:
Create the ultimate flight or racing simulation platform by extending supported games across multiple displays for a panoramic view that gives you a true sense of height and speed.
- Role-playing Games (RPG):
Get a birds-eye view and spread out game information across multiple screens and still stay in the center of the action.
- Real-time strategy (RTS):
See more of the battlefield without having to zoom.
- First-Person Shooter (FPS):
Get a better view of whats going on around you, use your peripheral vision so you can see the enemy before they see you.

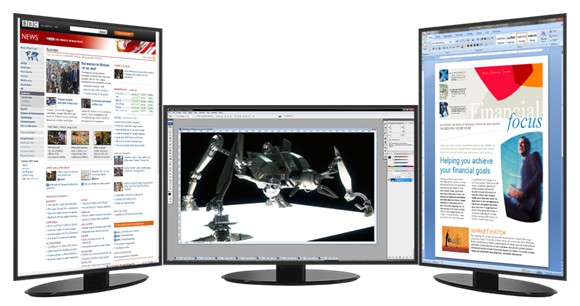

Help increase productivity by maximizing your visual workspace so you can see more Windows simultaneously
The perfect solution for your home or office, ATI Eyefinity technology makes multi-tasking a snap by eliminating the need to flip between windows. Surf the internet, do email, edit photos or videos, track your stocks and much more all at the same time.
ATI Eyefinity technology is ideal for multimedia applications; it allows you to keep several palettes or panels open while you edit images or videos.
Accelerate
Perform tasks on a PC faster with ATI Stream technology, speed up demanding everyday applications and get more done in less time.
Unleash the massive parallel processing power of your GPU to help you do more with your PC than ever before.
With multimedia softwares that support ATI Stream, users can enjoy fast video encoding and transcoding so video playback, editing and transferring content to portable media players is quick and easy.
DirectCompute presents even more opportunities for you to take advantage of your ATI Radeon HD 5900 Series GPU for tasks other than just rendering
- DirectCompute, helps improve PC performance by taking on some or all of a DirectX 11-enabled applications processing load, freeing up the computers mainprocessor to take on additional tasks.
- DirectX 11-enabled applications are designed for fast performance on your PC running Windows 7. In addition, programs designed for Windows 7 can convert a digital media file to a different size or format can perform a faster conversion (i.e. transcode) under Windows 7 than under previous versions of WIndows.
- Windows 7 with built-in drag and drop transcoding is a great example how ATI Radeon HD 5900 Series GPUs provide an exceptional experience for the upcoming operating system.
- High performance anisotropic filtering and 24x custom filter anti-aliasing (CFAA) smooth jagged edges and create true-to-life graphics, for everything from grass to facial features.
Dominate
With DirectX 11 support you can play the latest HD games with unrivalled visual quality, astonishing realism and ultra-fast frame rates.
Get unrivalled visual quality and intense gaming performance and for today and tomorrow with support for Microsoft DirectX 11
- ATI Radeon HD 5900 Series graphics accelerators and software drivers are the first to offer full support for Microsoft DirectX 11.
- Get striking 3D visual effects and dynamic interactivity with DirectX 11 support, including features like HDR Texture Compression, DirectCompute and Tessellation.
- DirectX 11 brings new levels of visual realism to gaming on the PC and youll get top-notch performance for these titles with ATI Radeon HD 5900 Series GPUs.
Get AMDs most advanced technology and massive compute power with ATI Radeon HD 5900 Series GPUs
- AMDs 2nd generation TeraScale engine dramatically increases the processing power over the previous generation.
- Feel the power of more than 2 teraFLOPS plowing through the most demanding games.
- Experience the speed, responsiveness and performance of ultra-high bandwidth GDDR5memory.
- Get up to 1.8X of a graphics performance boost with ATI CrossFireX technology in dual mode.
ATI Radeon HD 5900 Series GPUs are designed to deliver all the benefits of Microsoft Windows 7
Engineered to take advantage of all the graphical features within the new Windows 7 operating system, ATI Radeon HD 5900 Series GPUs deliver a visually compelling experience and a fast, responsive PC.
Dual DirectX11 Game Bundle
Special Tool

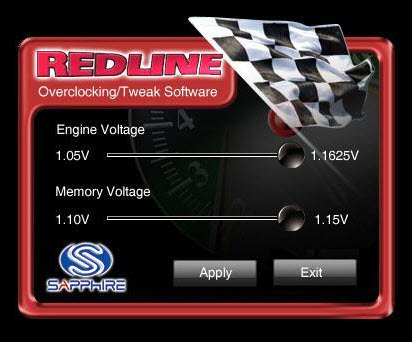

Redline Overvolt Utility, enables end users to tweak the voltage of the GPU.**
SAPPHIRE Redline tool available as a download from www.sapphiretech.com. Works only with SAPPHIRE HD 5970 OC..
Sapphire graphics cards are intended to be operated only within their associated specifications and factory settings. Operating your Sapphire graphics cards outside of specification or in excess of factory settings, including but not limited to overclocking, may damage your graphics card and/or lead to other problems, including but not limited to, damage to your system components and might lead to possible data loss. Sapphiress product warranty does not cover damages caused by overclocking, even when overclockingis enabled via Sapphire software. Sapphire does not provide support or service for issues or damages related to use of Sapphire products outside of specifications or in excess of factory settings. You may also not receive support or service from your system manufacturer.
Sapphire HD 5970 OC System Requirements
- PCI Express based PC is required with one X16 lane graphics slot available on the motherboard
- 650 Watt or greater power supply one 75W 6-pin and one 150W 8-pin PCI Express power connectors recommended (850 Watt with two 75W 6-pin and two 150W 8-pin connectors for ATI CrossFireX technology in dual mode)
- Certified power supplies are recommended. Refer to https://ati.amd.com/certifiedPSU for a list of Certified products
- Minimum 1GB of system memory
- Installation software requires CD-ROM drive
- DVD playback requires DVD drive
- Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive
- For an ATI CrossFireX system, a second ATI Radeon HD 5970 graphics card, an ATI CrossFireX Ready motherboard and one ATI CrossFireX Bridge Interconnect cable per graphics card (optional) are required
- To support 3 displays, one of the monitors has to support DisplayPort.
Features
 |
Full Microsoft DirectX 11 Support |
|
ATI Eyefinity Technology(B) |
|
ATI Stream Technology(A.D.) |
|
40 nm Process Technology |
|
Advanced GDDR5 Memory Technology |
|
Dual 2nd Generation TeraScale Engine |
|
Microsoft Windows 7 Support(E.) |
|
ATI CrossFireX Technology(C.) |
|
Enhanced Anisotropic Filtering |
|
Accelerated Video Transcoding |
|
Display Flexibility |
|
HDMI 1.3 |
|
Dolby TrueHD and DTSHD Master AudioTM Support |
|
Dynamic power management with ATI PowerPlay technology including memory clocks (D.) |
|
ATI Avivo HD Support (D.)
ATI Unified Video Decoder 2 (UVD) for Blu-ray and HD Video.
Accelerated Video Transcoding (AVT)
DVD Upscaling
Dynamic Contrast
Built-in HDMI with 7.1 surround sound support
|
|
PCI Express 2.1 support |
|
Remarks
A. ATI Stream Technology Requires Application Support
B. ATI Eyefinity technology works with games that support non-standard aspect ratios which is required for panning across three displays
C. ATI CrossFireX technology requires an ATI CrossFireX Ready motherboard, an ATI CrossFireX Bridge Interconnect (for each additional graphics card) and may require a specialized power supply
D. ATI PowerPlay, ATI Avivo and ATI Stream are technology platforms that include a broad set of capabilities offered by certain ATI Radeon HD GPUs. Not all products have all features and full enablement of some capabilities and may require complementary products.
E. To support Window 7, a Windows7-capable system is required. |
Specifications
|
SKU Number: 21165-01-50R |
|
Dual 2nd Generation Terascale Engine |
|
I/O Output: Dual DL-DVI-I, Mini Display Port |
|
Core Clock: 735 MHz |
|
Memory Clock: Effective 4040 MHz |
|
PCI Express 2.0 x16 bus interface |
|
2GB(1GBx2) / 512 bit(256bit x2) GDDR5 |
|
Dual slot Fan with auto fan control |
|
Dirt2 Coupon In the Box |
|
Battle Forge Coupon In the Box |
|
Redline Overvolt Utility available on the Website |
