| Specifications |
| Platform |
Intel Centrino 2 processor Technology
- Intel Core2 Duo Processor SU9400 (1.40GHz, 3MB, 800MHz)
- Mobile Intel GS45 Express Chip with ICH9M
- Intel WiFi Link 5300AGN (3x3) network connection |
| Operating System |
Genuine Windows 7 Professional |
| Display |

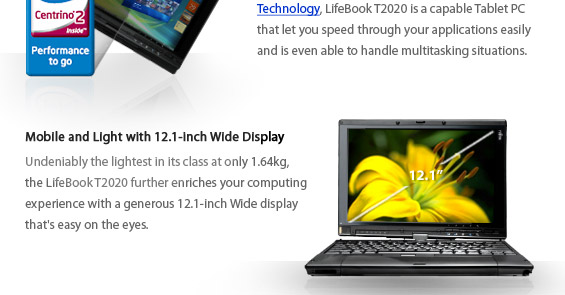

12.1-inch SuperFine WXGA TFT17 with active digitiser (1280 x 800 pixels with 300nits Brightness, indoor/outdoor [glare with AR] and viewing angles [80/80/80/80]) |
| Memory |
2GB15 DDR3 800MHz/ 1GB15 DDR3 800MHz
Max. Memory Supported12 - 4GB DDR3 800MHz, Dual Channel support |
| Intel Turbo Memory3 |
2GB |
| Hard Disk |
320GB15 |
| Bluetooth |
v2.1 + EDR (Enhanced Data Rate) |
| Battery |
Up to 6.70hrs1 (6-cell Li-Ion 5800mAh) |
| Weight |
Approx. 1.62kg |
| Detailed Specifications |
| Hard Disk Drive |
SATA-150 5400rpm, S.M.A.R.T support, Two Partitions - 50/5011, protected by Fujitsu 3D Shock Sensor13 |
| Graphics |
Integrated Intel Graphics Media Accelerator 4500MHD with Intel Clear Video Technology14 and DVMT9 5.0 delivers low-power, high-performance
2D/3D graphics with Shader Model 4.0, video and display capabilities at a maximum shared memory16 of 783MB/ 271MB |
| High Definition (HD) Audio |
RealTek ALC269 HD audio codec with built-in speakers
HD Audio-in: External Mic-in, Dual Built-in Digital Microphones
HD Audio-out: Headphone-out |
| Communication |
Bluetooth v2.1+EDR, 1000/100/10Mbps4 Gigabit Ethernet PCI Express x 1 and Intel WiFi Link 5300AGN (3x3) network connection with three Antenna.
Separate ON/OFF switch for wireless network connection. |
| User Interface |
Spill-resistant Keyboard10 with Quick Point: 84-key, 19mm key pitch, 3.0mm key stroke
Fingerprint Sensor with vertical scroll functions |
| Card Slot |
PC Card Type II
Secured Digital/ Memory Stick |
| Connector Interface |
USB 2.0 x 2, IEEE 1394, VGA (external display), RJ45 (LAN), HDA-In, HDA-Out, Power Adapter DC-in, Docking Interface |
| Quick Launch Panel |
Tablet PC buttons and 2 Programmable Application Launch Buttons |
| Security 6 |
BIOS Lock, 2-password Hard Disk Lock, LifeBook Lock, Anti-theft Lock Slot, Dedicated Smartcard5 Slot, Fingerprint Sensor, Trusted Platform Module Option |
| Dimensions |
297mm (W) x 219mm (D) x 34mm (H) |
| Bundled Accessories |
| AC Adapter |
Input AC 100~240V, Output DC 16V 60W |
| Bundled Software |
Softex Omnipass, Adobe Acrobat Reader, Fujitsu UpdateNavi2, Fujitsu Power Saving Utility, Fujitsu Hardware Diagnostic Tool, Fujitsu Display Manager,
Sun Microsystems Java Runtime, Fujitsu 3D Shock Sensor Utility and Microsoft Office Professional 2007 60-day Convertible Trial18 |
| Optional Accessories |
| Tablet Dock |
Connector Interface:
USB 2.0 x 4, Line Out, DVI-D, VGA (external display), RJ45 (LAN), Dual Layer DVD Super Multi Drive7, Power Adapter DC-in
309.6 x 259 x 40.8 w/feet |
| Extended Battery |
Up to 10.47hrs1 (9-cell Li-Ion 8700mAh 10.8V) |
| Floppy Disk Drive |
External USB 1.44MB FDD |
| Optical Disk Drive |
External Slimline USB DVD Super Multi Driver |
| Mouse |
Optical USB Black Mouse (Retractable) |
Disclaimer
1. Results obtained from BAPCo MobileMark 2007 (Productivity Workload) performed on systems with maximum battery life settings. Actual battery life will vary based on screen brightness, sound volume settings, running applications, connected peripherals, power management settings, battery conditioning, and other customer preferences. Built-in bay device or hard drive usage may also have a significant impact on battery life. Note: Up to 6.70hrs battery life and 10.47hrs battery life are based on Intel Core2 Duo Processor SU9400 with standard 6-cell battery and 9-cell battery respectively.
2. UpdateNavi is a Fujitsu Proprietary application that updates LifeBook drivers by connecting automatically to Fujitsus server. This will help update your LifeBook with the latest software drivers and utilities to ensure compatibility between hardware and software, maintaining smooth operation anytime, anywhere.
3. Intel Turbo Memory is a multi-component platform technology that uses non-volatile memory (Flash memory) to increase system responsiveness, make multi-tasking faster, and extend battery life.
4. This term does not represent actual data rate of 1000/100/10Mbps and simply indicates compliance with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab standards. Actual maximum data rate depends on network configurations, cable conditions as well as connected devices.
5. Fujitsu does not provide the application for Smartcard solution.
6. BIOS Lock needs a supervisor/user password to access BIOS setup. BIOS settings can be configured to prompt for password at every first bootup or all bootup sequences. Access to BIOS setup is needed to configure Hard Disk Lock. Hard Disk Lock requires an access key to retrieve data on the hard disk. This is a Data Confidentiality security feature. LifeBook Lock requires a supervisor/user password to bootup the LifeBook when it powers up or resumes last session from suspend/hibernate mode. This is an anti-theft feature with more than 800,000 password combinations using the buttons on the Quick Launch Panel. Anti-theft Lock Slot allows the use of a lock to physically secure the LifeBook. Smartcard slot usage is dependent on customer's solution. Fingerprint sensor uses AuthenTec TruePrint Technology and Softex OmniPass to remember customer list of user IDs and passwords. Full security unlock sequence - LifeBook Lock, Bootup Lock (BIOS Lock), Hard Disk Lock, Fingerprint Windows Logon.
NOTE: Loss of password requires the LifeBook to be returned to Japan factory for system refresh. Cost of shipment and lost data will be borne by the customer. Backup your user's profile before changing HDD. Without the user's profile associated with a document at the point of encryption, Softex OmniPass cannot decrypt the encrypted document. 2 passwords refers to Master Password and User Password of the HDD Lock. The Master Password can be used to clear the User Password at the BIOS settings under Hard Disk Security. If HDD Lock prompt is enabled, only the User Password can be used to boot up the unit. Loss of these 2 passwords means the HDD content cannot be retrieved. It is the customer's responsibility to ensure the safe keeping ofthese 2 passwords for retrieval of data from the locked HDD.
7. Supports DVD multi formats such as DVD-RAM, DL DVDR, DVDRW, DVDR, CD-RW, DVD-ROM, CD-R and CD-ROM.
8. RoHS (Restriction on Hazardous Substances) compliance means the system and its internal components comply with the EU RoHS directive (2002/95/EC) on the restricted use of six hazardous substances in the production of the system and its internal components.
9. Dynamic Video Memory Technology (DVMT) dynamically responds to application requirement and efficiently allocates the proper amount of memory (max. 1295MB for 4GB system memory) for optimal graphics and system performance. The memory size available to the Operating System will be less than the size of installed memory module.
10. Spill-resistant Keyboard does not imply the system is water-proof. If liquid is spilt onto the keyboard, power off the system immediately and turn the notebook upside down to drain off the liquid.
11. This refers to Windows 7 hard disk drives C:\ and D:\. 50/50 refers to approximate 50% allocation of user accessible hard disk storage to C:\ and D:\ drives. For Windows 7 hard disk drives, 13GB will be reserved for internal recovery usage which is not shown.
12. 4GB maximum memory is supported when Fujitsu recommended 2GB memory module is made available.
13. Fujitsu 3D Shock Sensor of a powered-up unit retracts hard disk read-write head to a secured zone upon detection of excessive vibrations or shocks. This greatly reduces the possibility of damage to the hard disk and its content - example in the event of a sudden drop or impact. The sensor monitors movement from three axes and its sensitivity can be adjusted by user to accommodate different working environments using the Fujitsu 3D Shock Sensor Utility.
14. Intel Clear Video Technology is a combination of video processing hardware and software technologies that delivers enhanced high-definition video playback, sharper images, precise color control and advanced support for a wide range of digital displays interfaces, including High-Definition Multimedia Interface(HDMI).
15. Please check actual bundling with country local distributor
16. Maximum shared memory depends on system memory capacity and system configuration. 783MB refers to 2GB system memory capacity. 271MB refers to 1GB system memory capacity.
17. It is natural for all thin-film transistor (TFT) liquid crystal displays (LCD) to show a small number of missing or discolored dots. These are commonly known as non-conforming pixels. This is a technology limitation of TFT LCD and does not represent a defect. Fujitsu warranty does not cover limitations in technology such as non-conforming pixels.
18. Microsoft Office Professional 2007 60-day Convertible Trial needs online activation to begin. 60-day starts from day of activation.
