All stock codes associated to this product
LST6012AUE0L10019, FU68207

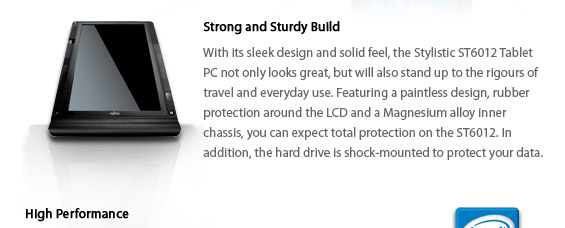

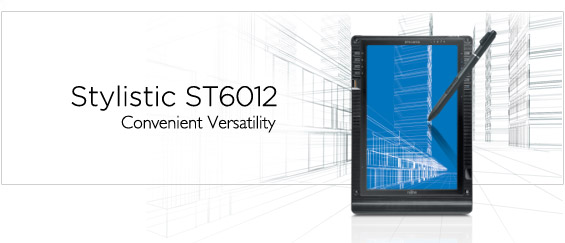

Offering the ultimate lightweight Tablet PC in a slate form factor, the Stylistic ST6012 incorporates state of the art technology and a host of work enhancing features. Take it anywhere, from warehouse to the water cooler in the office pantry or even outdoors. Hold it any way, tucked underarm, as a clipboard or place on the table for a multiple party conference. Transform the Stylistic slate into a fully functional work station instantly when you combine it with a docking station and wireless keyboard*. The Stylistic ST6012 is a computing companion that will change the way you work.
| Specifications |
| Platform |
Intel Centrino 2 processor Technology
- Intel Core2 Duo Processor SU9400 (1.40GHz, 800MHz, 3MB L2 Cache)
- Mobile Intel GS45 Express Chip with ICH9M
- Intel WiFi Link 5300AGN (3x3) network connection |
| Operating System |
Genuine Windows Vista Business
(or Genuine Windows Vista Home Premium) |
| Display |
12.1-inch SuperFine WXGA TFT18 with AR coating (for outdoor viewability) with active digitizer, 1280 x 800 pixels (300nits Brightness, 178 Wide Viewing Angles, 500:1 Contrast Ratio) |
| Memory |
2GB13 DDR3 800MHz
Max. Memory Supported2 - 4GB DDR3 800MHz, Dual Channel Support |
| Hard Disk |
320GB13 |
| Standard Battery Life |
Approx. 5.40hrs1 (6-cell Li-Ion 5200mAh) |
| Weight |
Approx. 1.61kg |
| Detailed Specifications |
| Hard Disk Drive |
SATA-150 5400rpm, SMART support, Two partitions - 50/5010, protected by Fujitsu 3D Shock Sensor9 |
| Digitizer |

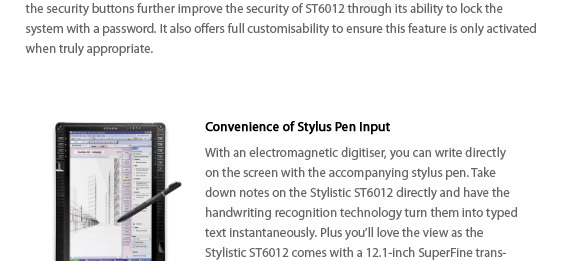

Active (Electromagnetic) |
| Graphics |
Integrated Intel Graphics Media Accelerator 4500MHD with Intel Clear Video Technology15 and DVMT7 5.0 delivers low-power, high-performance 2D/3D graphics with Shader Model 4.0, video and display capabilities at a maximum shared memory16 of 783MB/ 271MB |
| Audio |
RealTek ALC269 HD audio codec with built-in stereo speakers
HD Audio-In: External Mic-in, Analog Dual built-in Microphone
HD Audio-Out: Headphone-out |
| Communication |
IrDA 1.1 4Mbps4, Bluetooth v2.1+EDR, 1000/100/10Mbps3 Gigabit Ethernet PCI Express x 1 and Intel WiFi Link 5300AGN (3x3) network connection with three antennas. Separate ON/OFF switch for wireless network connection. Built-in 1.3 Mega Pixel camera which mounted on the back cover |
| Card Slots |
PC Card Type II x 1, Dedicated Smartcard x 1, MS/SD x 1 |
| Connector Interface |
USB 2.0 x 2, VGA (external display), 1 x RJ45 (LAN), IR Keyboard/Mouse Receiver, Audio (Headphone-out, Microphone-in), Docking Interface |
| Quick Touch Panel |
Ten Security/ Application Buttons |
| Security6 |

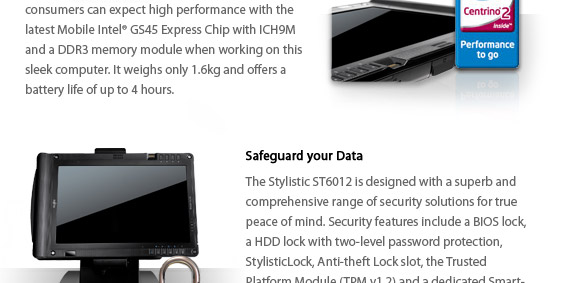

BIOS Lock, 2-password Hard Disk Lock, LifeBook Lock, Anti-theft Lock Slot, Dedicated Smartcard5 slot, Fingerprint Sensor, Trusted Platform Module option |
| AC Adapter |
Input AC 100 ~ 240V, Output DC16V 60W |
| Bundled Software |
Adobe Acrobat Reader, Fujitsu UpdateNavi 11, Fujitsu Power Saving Utility, Fujitsu Hardware Diagnostic Tool, Fujitsu Display Manager, Sun Microsystems Java Runtime, Softex Omnipass, Arcsoft Camera Capture, Microsoft Office Professional 2007 60-day Convertible Trial12 |
| Other Software |
1 year Full Licensed Norman Virus Control with Sandbox Technology and Norman Personal Firewall, Acronis True Image |
| Dimensions |
Approx. 325mm x 220mm x 23.8-31.7mm |
| Optional Accessories |
| Tablet Dock |
USB 2.0 x 3, VGA x 1, RJ45 x 1, Line-out, Dual Layer Super Multi 17/ DVD/CD-RW Combo Drive |
| Extra battery |
9-cell Li-Ion 7800mAh 10.8V |
| Optical Disk Drive |
External Slimline USB DVD Super Multi Driver |
| Keyboard |
Wireless IR Keyboard |
| Mouse |
Optical USB Black Mouse (Retractable) |
Disclaimer
1. Results obtained from BAPCoMobileMark2007(Productivity Workload) performed on systems with maximum battery life settings under laboratory testing environment. Actual battery life will vary based on screen brightness, sound volume settings, running applications, connected peripherals, power management settings, battery conditioning, and other customer preferences in the real life situation. Built-in bay device or hard drive usage may also have a significant impact on battery life. Note: Up to 5.40hrs battery life is based on Intel Core2 Duo Processor SU9400 with standard 6-cell battery.
2. The system can support up to 4GB of physical memory, but the system will use up to only 3GB (1GB ~ 1024MB) accessible memory.
3. This term does not represent actual data rate of 1000/100/10Mbps and simply indicates compliance with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab standards. Actual maximum data rate depends on network configurations, cable conditions as well as connected devices.
4. This term does not represent actual data rate of 4Mbps and simply indicates compliance with IrDA standard specification 1.1. Actual maximum data rate depends on local configurations and connected devices.
5. Smartcard support requires a Smartcard adapter for the PC Card slot. This is available as an accessory. Fujitsu does not provide the application for Smartcard solution.
6. BIOS Lock needs a supervisor/user password to access BIOS setup. BIOS settings can be configured to prompt for password at every first bootup or all bootup sequences. Access to BIOS setup is needed to configure Hard Disk Lock. Hard Disk Lock requires an access key to retrieve data on the hard disk. This is a Data Confidentiality security feature. LifeBook Lock requires a supervisor/user password to bootup the LifeBook when it powers up or resumes last session from suspend/hibernate mode. Anti-theft Lock Slot allows the use of a lock to physically secure the LifeBook. Smartcard slot usage is dependent on customer's solution. Fingerprint Sensor uses AuthenTec TruePrint Technology and Softex OmniPass to remember customer list of user IDs and passwords. Full security unlock sequence - LifeBook Lock, Bootup Lock BIOS Lock), Hard Disk Lock, Fingerprint Windows Logon.
NOTE: Loss of password requires the LifeBook to be returned to Japan factory for system refresh. Cost of shipment and lost data will be borne by the customer. Backup your user's profile before changing HDD. Without the user's profile associated with a document at the point of encryption, Softex OmniPass cannot decrypt the encrypted document
7. Dynamic Video Memory Technology (DVMT) dynamically responds to application requirement and efficiently allocates the proper amount of memory (max. 1295MB for 4GB system memory) for optimal graphics and system performance. The memory size available to the Operating System will be less than the size of installed memory module.
8. RoHS (Restriction on Hazardous Substances) compliance means the system and its internal components comply with the EU RoHS directive (2002/95/EC) on the restricted use of six hazardous substances in the manufacture of the system and its internal components

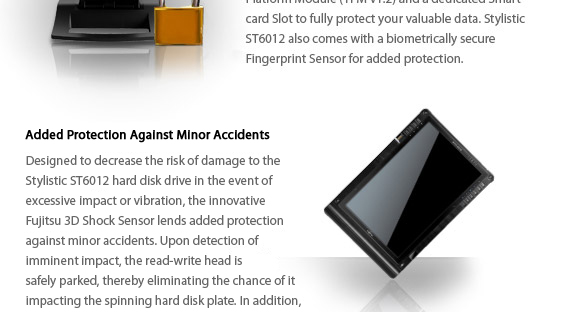

9. Fujitsu 3D Shock Sensor of a powered-up unit retracts hard disk read-write head to a secured zone upon detection of excessive vibrations or shocks. This greatly reduces the possibility of damage to the hard disk and its content - example in theevent of a sudden drop or impact. The sensor monitors movement from three axes and its sensitivity can be adjusted by user to accommodate different working environments using the Fujitsu 3D Shock Sensor Utility.
10. This refers to Windows Vista hard disk drives C:\ and D:\. 50/50 refer to approximate 50% allocation of user accessible hard disk storage to C:\ and D:\ drives. For Windows Vista hard disk drives, 1GB will be reserved for internal recovery use, which is not shown.
11. UpdateNavi is a Fujitsu Proprietary application that updates LifeBook drivers by connecting automatically to Fujitsus server. This will help update your LifeBook with the latest software drivers and utilities to ensure compatibility between hardware and software, maintaining smooth operation anytime, anywhere.
12. Microsoft Office Professional 2007 60-day Convertible Trial needs online activation to begin. 60-day starts from day of activation.
13. Please check actual bundling with country local distributor.
14. Intel Turbo Memory is a multi-component platform technology that uses non-volatile memory(Flash memory) to increase system responsiveness, make multi-tasking faster, and extend battery life.
15. Intel Clear Video Technology is a combination of video processing hardware and software technologies that delivers enhanced high-definition video playback, sharper images, precise color control and advanced support for a wide range of digital displays interfaces, including High-Definition Multimedia Interface (HDMI).
16. Maximum shared memory depends on system memory capacity and system configuration. 783MB refers to 2GB system memory capacity. 271MB refers to 1GB system memory capacity.
17. Supports DVD multi formats such as DVD-RAM, DL DVDR, DVDRW, DVDR, CD-RW, DVD-ROM, CD-R and CD-ROM.
18. It is natural for all thin-film transistor (TFT) liquid crystal displays (LCD) to show a small number of missing or discolored dots. These are commonly known as non-conforming pixels. This is a technology limitation of TFT LCD and does not represent a defect. Fujitsu warranty does not cover limitations in technology such as non-conforming pixels.
