G41MX-F2.0 | Foxconn G41MX-F 2.0 Motherboard

Au prices - Techbuy Home Computers Custom PC Systems Tablets Networking Printers Phones Point of Sale Gaming

HOME / Back -> Motherboards -> Intel Socket 775 -> Foxconn

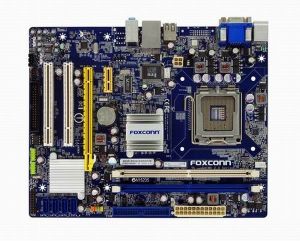

Foxconn G41MX-F 2.0 Motherboard
LGA775, G41, ICH7, 1333FSB, 2xDDR2-800, 1xPCI-Ex16 v2.0, 4xSATA-II, 1xATA-100, 1xGigLAN, 6Chl-HD, VGA, mATX

No Longer Available

Part Number:

133110

(?) Brand:

Foxconn Web Site

Manuf No:

G41MX-F2.0
G41MXF2.0

Shipping Weight:

2 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

G41MXF2.0, G41MX-F2.0, G41MXF20

Intel Core2 Quad, Core2 Duo, Pentium Dual-Core processors, Socket T (LGA775)

Supports Intel 45nm Multi-Core processors

1333/1066/800 MHz (FSB)

Dual channel DDR2 800/667x2 DIMMs, Max 8GB

1* PCIe x16, 1* PCIe x1, 2* PCI

4*SATAII ,1*ATA100

5.1 channel byRealtek ALC662

GigabitLAN byRealtek

8 USB 2.0 ports

Processor:	Intel Core2 Quad, Core2 Duo, Pentium Dual-Core processors, Socket T (LGA775) Supports Intel 45nm Multi-Core processors
Chipset:	Intel G41 + ICH7
Front Side Bus:	1333/1066/800 MHz (FSB)
Memory:	Dual channel DDR2 800/667 x 2 DIMMs, Max 8GB
VGA on Die:	Integrated
Expansion Slots:	1* PCIe x16, 1* PCIe x1, 2* PCI
IDE:	1*ATA100
Serial ATA(SATA)/RAID:	4* SATAII
Audio:	5.1 channel by Realtek ALC662
LAN:	Gigabit LAN by Realtek
IEEE1394:	N/A
Back Panel I/O Ports:	1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x VGA port 1 x Serial port 1 x Audio jack supports 6 jacks 4 x USB 2.0 ports 1 x RJ45 LAN port
Internal I/O Connectors:	1 x ATX 24-Pin power connector 1 x 4-pin ATX 12V power connector 2 x 4-pin CPU / System FAN connectors 1 x CD-in connector 1 x IDE connector 1 x Floppy connector 1 x Front Panel connector 2 x USB 2.0 connectors support additional 4 ports 4 x Serial ATAII connectors 1 x S/PDIF Out header 1 x Speaker header 1 x Front Audio header 1 x IrDA header 1 x TPM header
BIOS Features:	8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI
Support CD:	WHQL Drivers, Adobe Reader 7.07, Direct x 10.0, Norton 2006
Standards/Manageability:	PCI 2.3, USB2.0, DMI 2.5
Form Factor:	Micro ATX (9.6"x7.7")

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers (Foxconn) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
