Zalman ZM-MFC1 Combo Multiple Fan Controller - 5 Channels, 1xPWM Control Channel, 4xVoltage Control Channels, Aluminium Front Panel - Black

No Longer Available

Part Number:

133555

(?) Brand:

Zalman Web Site

Manuf No:

ZM-MFC1-COMBO-BK
ZMMFC1COMBOBK

Shipping Weight:

0.4 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

ZMMFC1COMBOBK, ZM-MFC1-COMBO-BK

5 Channel Fan Controller

A PWM fan and four 3-Pin fans can be individually controlled and the included Y Cable enables control of up to 6 fans.

Adjustable PWM Fan Controller

PWM fan controller with 3-Preset Auto-Modes and a Manual Mode for PWM fan control according to the users preference.

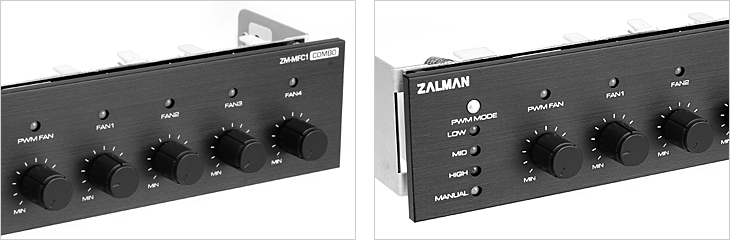

Fan Control via Mode Select Button and Control Knobs

The PWM fans speed can be controlled through 4 preset modes (Low, Mid, High, Manual) and 3-Pin fans can independently be controlled through the fan speed control knobs according to the users preference.

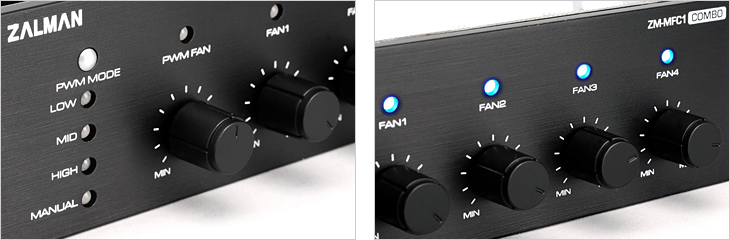

Color Variable LEDs for Simple Monitoring of Fan Speed

LEDs associated with the PWM Fan indicate each mode in different colors and the LED of each 3-Pin fan control channel is color variable according to fan speed for easy monitoring.

LED color according to fan speed
- PWM Fan: Low(Blue)/ Mid(Purple)/ High(Red)/
Manual(Green)
- 3-Pin Fan: Minimum(Blue)/ Mid(Purple)/ Maximum(Red)

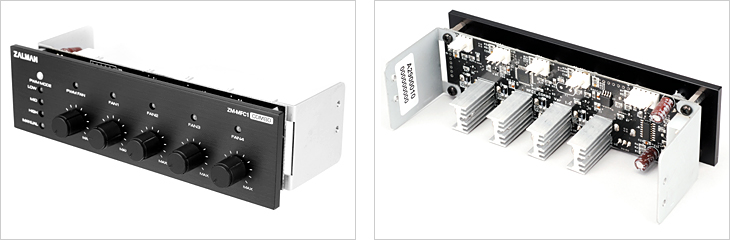

Aluminum Front Panel for Maximum Aesthetic Quality

Brushed aluminum front panel is incorporated for high quality aesthetics.

Environment Friendly Design

Only environment friendly materials are utilized for compliance with the RoHS (Restriction of Hazardous Substances) standard of the European Union.

Dimensions	70(L) x 148(W) x 42(H) mm
Weight	168g
Color	Black / Silver
Number of Channels	5 Channel (PWM: 1 Channel) / Voltage Regulated: 4 Channels)
Fan Control Methods	Voltage regulated: Fan 1, 2, 3, 4	5-11VDC
	PWM Regulated: PWM Fan	Auto Low	Input %: 50% (Blue)
		Auto Mid	Input % 75% (Purple)
		Auto High	Input % 100% (Red)
		Manual	Duty 25 ~ 100% (Green)
Maximum Channel Voltage	7.0W Per Channel (Max 0.6A)
Input Voltage	+12VDC / +5VDC 10%
Output Voltage	5VDC ~ 11VDC 5%

- ZM-MFC1 Combo
- C1 Cable
- C3 Cable
- Y Cable
- C4 Cable
- Fixing Bolts
- Users Manual

Zalman affixes a Computer Noise Prevention System (CNPS) mark to all components used for noiseless computers.

The specifications of any product may change without prior notice to improve the performance thereof.

No additional files, specification sheets, guides or documentation found for product.
