Western Digital 320GB 7200rpm Serial ATA-II-300 HDD w. 8MB Cache (WD3200AVJS) WD AV

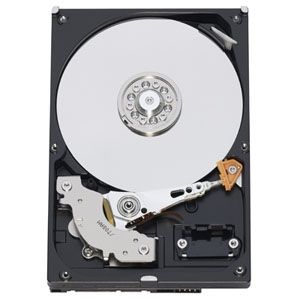

IMG 1 of 1
No Longer Available
Part Number:
133594
(?) Brand:
Western Digital Web Site
Manuf No:
WD3200AVJS
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
WD3200AVJS, AMIHD320WS2, AMI-HD320WS2
WD AV
SATA Hard Drives
320 GB, Up to 38 Hours HD Video

Designed for demanding audio and video environments.

Significant design advances in WD's hard drive technology, combine optimized AV performance with best-in-class power consumption and thermally optimized operation enabling unparalleled cost of ownership for manufacturers of digital video recording devices.


WD hard drives have helped enable the digital content revolution since we first began shipping to Microsoft Xbox in 2001. Today WD is a leading manufacturer of consumer electronics storage. Our drives can be found in a multitude of digital video recording products including personal video recorders (PVRs), digital video recorders (DVRs), set-top boxes (STBs) as well as surveillance video recording applications. We understand the unique requirements of this specialized storage-enabled market and our drives deliver the characteristics CE manufacturers seek most.

Product Features
Long-Term Reliability - With a MTBF of 1 million hours, these drives are designed to last in high temperature always-on streaming digital audio/video environments such as PVR/DVR, DVR recorders and surveillance video recorders.
Quiet - Noise levels have been minimized to less than one sone* - virtually below the threshold of human hearing.
Low Power Consumption - WD AV drives deliver best-in-class low power consumption for reduced system power requirements and increased reliability.
Note: 3.3V SATA power is not available in this product
Compatible - Tested for compatibility in a broad range of AV products including set top boxes, DVD recorders, and mainstream surveillance systems.
SilkStream - Optimized for smooth, continuous digital video playback of up to twelve simultaneous HD streams**. SilkStream is compatible with the ATA streaming command set so CE customers can use standard streaming management and error recovery options.
IntelliSeek - Calculates optimum seek speeds to lower power consumption, noise and vibration. View demo >
Ramp Load - Parks the recording heads off the disk surface during spin up, spin down and when the drive is off. This ensures the recording head never touches the disk surface resulting in improved long term reliability due to less head wear, and improved non-operational shock tolerance.
Preemptive Wear Leveling (PWL) - The drive arm frequently sweeps across the disk to reduce uneven wear on the drive surface common to audio video streaming applications.
* A sone is a subjective unit of loudness as perceived by a person with normal hearing.
** Assumes Host Transfer Block size of 2 MB per stream.
Ideal For

  • PVR/DVR
  • DVD recorders
  • Media Center PCs
  • Other video streaming applications

Specifications
Performance Specifications
Rotational Speed 7,200 RPM (nominal)
Buffer Size 8 MB
Average Latency 4.20 ms (nominal)
Load/unload Cycles 50,000 minimum
Acoustics (Sone) < 1
Seek Times
Read Seek Time 8.9 ms
Write Seek Time 10.9 ms (average)
Track-To-Track Seek Time 2.0 ms (average)
Full Stroke Seek 21.0 ms (average)
Transfer Rates
Buffer To Host (Serial ATA) 3 Gb/s (Max)
Physical Specifications
Formatted Capacity 320,072 MB
Capacity 320 GB
Interface SATA 3 Gb/s
User Sectors Per Drive 625,142,448
Physical Dimensions
English
Height 1.028 Inches
Length 5.787 Inches
Width 4.00 Inches
Weight 1.33 Pounds
Metric
Height 25.4 mm
Length 147 mm
Width 101.6 mm
Weight 0.60 kg
Environmental Specifications
Shock
Operating Shock (Read) 65G, 2 ms
Non-operating Shock 350G, 2 ms
Acoustics
Idle Mode 25 dBA (average)
Seek Mode 3 26 dBA (average)
Temperature (English)
Operating 32 F to 140 F
Non-operating -40 F to 149 F
Temperature (Metric)
Operating -0 C to 60 C
Non-operating -40 C to 65 C
Humidity
Operating 5-95% RH non-condensing
Non-operating 5-95% RH non-condensing
Altitude (English)
Operating -1,000 feet to 10,000 feet
Non-operating -1,000 feet to 40,000 feet
Altitude (Metric)
Operating -305M to 3,050M
Non-operating -305M to 12,200M
Vibration
Operating
Linear 20-300 Hz, 0.75 G (0 to peak)
Random 7-500 Hz (0.00221 g / Hz)
Non-operating
Low Frequency 10-300 Hz, 0.195 inches (double amplitude)
High Frequency 300-500 Hz, 5.0G (0 to peak)
Electrical Specifications
Current Requirements
12 VDC
Read/Write 395 mA
Idle 380 mA
Standby 6 mA
Sleep 6 mA
5 VDC
Read/Write 660 mA
Idle 532 mA
Standby 180 mA
Sleep 180 mA
Power Dissipation
Read/Write 7.80 Watts
Idle 7.20 Watts
Standby 0.97 Watts
Sleep 0.97 Watts
As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, megabit per second (Mb/s) = one million bits per second, and gigabit per second (Gb/s) = one billion bits per second.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3 Years

Full manufacturers warranty details are available at the manufacturers (Western Digital) web site.
