Gigabyte GA-X58A-UD3R Motherboard
LGA1366, X58, QPI 6.4GT/s, 6xDDR3-2200, 2xPCI-Ex16 v2.0, 2xSATA-III, 8xSATA-II, 2xeSATA, 1xATA-133, RAID, 1xGigLAN, 8Chl-HD, Firewire, USB3.0, ATX
Cart
Quantity:
Add Gigabyte GA-X58A-UD3R Motherboard
to your wishlist
Click here to write a review on Gigabyte GA-X58A-UD3R Motherboard

Product May Vary From Image
[Large image available]

Our Price:
$282.15
RRP:$329.00
You Save:$46.85

Techbuy Part No:133728
Usually Ships: 1-3 Days Details
Brand:Gigabyte Web Site
Manuf No:GA-X58A-UD3R
 GAX58AUD3R
Shipping Weight:2 KG How Much?
Date Added:11/1/2010
Rating: Not Rated
Currency:AUD Convert

Product Description

GA-X58A-UD3R (rev. 1.0)

Intel  X58 + ICH10R Chipset
  1. Ultra Durable 3 Technology with copper cooled quality for lower working temperature
  2. Supports newest NEC SuperSpeed USB 3.0 with superfast transfer rates of up to 5 Gbps
  3. 3X USB power delivery for greater compatibility and extra power for USB devices
  4. Provides newest Marvell SE9128 high speed SATA3 storage interface with superfast 6Gbps link speed
  5. Supports the newest Intel Core i 7 processors in socket LGA1366 with QPI 6.4 GT/s
  6. Revolution energy saving design with DES 2 featuring hardware based Dynamic 6-Gear switching
  7. Supports 3 channel DDR3 2100+ memory
  8. Scalable ability to both 3 way CrossFireX and 3 way SLI support for ultimate graphics performance
  9. Unique hardware control IC to provide more precision voltage control
  10. 100% 50,000 hour lifespan Japanese solid capacitors design
  11. Patented DualBIOS with dual hardware BIOS protection
  12. Supports Dolby Home Theater audio to create a stunning surround sound listening experience
  13. Blu-ray playback outputs supported by high quality 108dB SNR ALC889 HD audio
  14. Compatible with Window 7 to deliver the best operation experience
  15. Meet European Union EuP(Energy-using Products) requirement

Overview
Introduction
Based on the Intel  X58 chipset, the GIGABYTE GA-X58A-UD3R delivers all the killer next generation features that gaming enthusiasts and power users have been waiting for including GIGABYTE's 333 Onboard Acceleration features with support for USB 3.0, Serial-ATA Revision 3.0 (6Gbps) and a 3x USB Power Boost, as well as multi-GPU support for NVIDIA 3-Way SLI and ATI CrossFireX and support for Intel's high performance processors offering a high level of future CPU headroom for users wanting to maintain cutting-edge levels of performance. With the memory controller integrated directly into the processor die, the GIGABYTE GA-X58A-UD3R also supports triple channel DDR3 memory for blazing fast memory performance.

    Intel  Core i7 Processor and X58 Chipset support


The GA-X58A-UD3R was designed specifically to take advantage of the raw power of the next generation Intel  Core i7 processors and the Intel  X58 Express chipset, whose new evolution in computing architecture is able to deliver an amazing performance break through from past processor generations. Replacing the Front Side Bus is the new Quick Path Interconnect, or QPI, whose 25.6 GB/sec transfer rates (double the bandwidth of the 1600MHz FSB) eliminates the communication bottleneck between the processor and chipset.

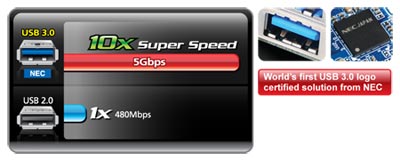

  USB 3.0 Support
The GIGABYTE X58A series motherboards support the latest generation SuperSpeed USB 3.0 technology made possible through an onboard NEC uPD720200 host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices. The onboard NEC SuperSpeed USB 3.0 technology also provides new power management features that include increased maximum bus power and device current draw to better accommodate power-hungry devices.

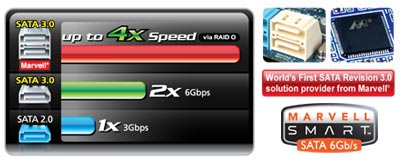

  SATA 6 Gbps Support
Yet another onboard feature of GIGABYTE X58A motherboards are Marvell's new SE9128 chips for high-speed SATA Revision 3.0 compatibility, delivering superfast 6Gbps link speeds for twice the data transfer rates of SATA Revision 2.0 (3 Gbps). When used in RAID 0 (Stripe) mode, GIGABYTE X58A series motherboards offer even faster data transfer rates of up to 4x the speed of current SATA interfaces.

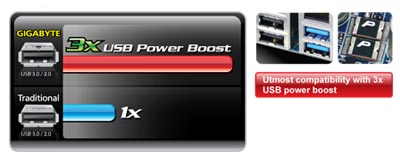

  3x USB Power Boost
GIGABYTE X58A series motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTE's unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery.

    Qualified for Windows  7
The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft , setting the standard for future Windows 7 certified motherboards... more
  Dynamic Energy Saver 2
GIGABYTE Dynamic Energy Saver 2 incorporates a host of intelligent features that use a proprietary hardware and software design to considerably enhance PC system energy efficiency, Reduce power consumption and deliver optimized auto-phase-switching for the CPU, Memory, Chipset, VGA, HDD, and fans with a simple click of button.
    Smart 6- A Smarter way for PC system Management
GIGABYTE Smart 6 is designed with user-friendliness in mind, and offers a combination of 6 innovative software utilities that provide easier and smarter PC system management. Smart 6 allows you to speed up system performance, reduce boot-up time, manage a secure platform and recover previous system settings easily with a click of the mouse button.


Smart QuickBoot
No more waiting for PC Boot up
 Smart DualBIOS
Smart personal reminder
Smart QuickBoost
One-click Overclocking		 Smart Recorder
Your PC's Watch Dog
Smart Recovery
Reverse time for you		 Smart TimeLock
Time Controller for PC
  AutoGreen- Greening your PC via Bluetooth cellphone
AutoGreen technology can automatically save power for you simply by your bluetooth cell phone when you are away from your computer
  XHD (eXtreme HardDrive)-Accelerating hard drive performance with ease
Accelerating system performance is made easy with the user friendly GIGABYTE eXtreme Hard Drive (X.H.D). GIGABYTE eXtreme Hard Drive (X.H.D) provides a quick and easy way to boost your hard drive performance simply by adding another hard drive.
  Integrated Memory Controller
Intel  Core i7 Processors feature triple channel DDR3 support
Intel Core i7 processors feature the memory controller integrated directly into the processor die, rather than as part of the Northbridge as in previous generations, allowing for faster memory performance. Core i7 processors also provide additional memory support including.
  QPI , QuickPath Interconnect
Replacing the role of FSB
Intel uses the QPI to connect internal components of Core i7 processors , and to connect the CPU itself to the Northbridge and banks of memory.

QPI delivers:
Up to 25.6GB/sec of bandwidth between Core i7 processors and the rest of the system,providing exactly double the bandwidth of 1600 Hz FSB
  Intel Turbo Boost Technology
Dynamically reroutes power to improve performance For situations when all cores are not needed for a particular workload, Intel Turbo Boost Technology powers down the idle cores and dynamically reroutes the power to the active cores, boosting their performance without wasting power. This allows the active cores to achieve significant overclocks.
  Multi-display support with 3 way CrossFireX and 3 way SLI
Flexible graphics capabilities - Up to 3 VGA cards are supported for either 3 way CrossFireX or 3 way SLI action, delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
    Ultra Durable 3

Ultra Durable 3
GIGABYTE Ultra Durable 3 design, featuring 2 ounces of copper for both the Power and Ground layers which dramatically lowers system temperature by delivering a more efficient spreading of heat from critical areas of the motherboard such as the CPU power zone throughout the entire PCB. GIGABYTE's Ultra Durable 3 also lowers the PCB impedance by 50%, which helps to reduce electrical waste and further lowers component temperatures. A 2oz Copper layer design also provides improved signal quality and lower EMI (Electromagnetic Interference), providing better system stability and allowing for greater margins for overclocking... more
  Benefits of 2 oz Copper PCB
Cooler than traditional motherboards
Enhanced durability
Improved energy efficiency
Greater margins for overclocking... more

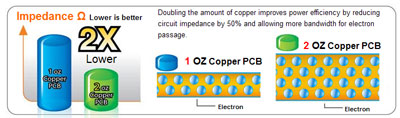

    2X Lower Impedance


In addition, doubling the amount of copper lowers the PCB impedance by 50%. Impedance is a measure of how much the circuit impedes the flow of current. The less the flow of current is impeded, the less amount of energy is wasted. For GIGABYTE Ultra Durable 3 motherboards, this means total PCB electrical waste is reduced by 50%, which also means less heat is generated. 2 ounces of copper also provides improved signal quality, providing better system stability and allowing for greater margins for overclocking.
  50,000 Hours Japanese Solid Capacitors
GIGABYTE Ultra Durable motherboards are equipped with solid capacitors developed by leading Japanese manufacturers. With an average lifespan of 50,000 hours, these solid capacitors provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games.

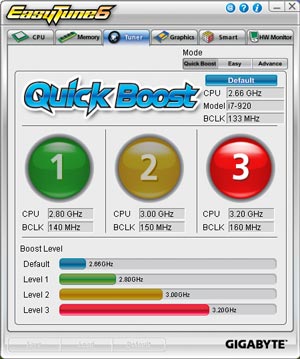

Quick and Effortless Overclocking with One Click
GIGABYTE Quick Boost provides 3 levels of CPU performance enhancement; a simple click on the desired level delivers quick and effortless overclocking for novice and experienced users alike.
  EasyTune6
GIGABYTE has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system.


DualBIOS - Patented Dual Hardware BIOS Protection
DualBIOS is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.


Hardware OverVoltage Control IC - Enabling Extreme Overclocking
GIGABYTE Hardware Overvoltage Control ICs featuring more voltage control options than before for the CPU North Bridge and memory. The overvoltage controllers also provide hardware linear real-time voltage control, which means there is no delay compared to the GPIO controller in past implementations. In addition, GIGABYTE's Hardware Overvoltage Controller ICs also allow for much finer voltage control, allowing power users to adjust voltage in as little increments as 20mV for better overclocking performance.
  OV-Alert LED
4 sets of OV-Alert LEDs indicate the overvoltage level of the CPU, Memory, North Bridge and South Bridge to prevent component damage.
  Visible Overclocking Reminder
OC-Alert LED indicates the level of CPU overclock from low to high.
  Visible Temperature Reminder
Two sets of Temperature Alert LEDs indicate the current temperature level of the CPU and North Bridge
    Onboard Quick Switches
Onboard Power, Clear CMOS and Reset buttons allow for quick and easy tweaking for power users working in an in chassis environment.
  Dolby Home Theater  - Enjoy a Rich Home Theater Surround Sound Experience
Dolby Home Theater places listeners in the middle of the action, giving their PCs a powerful set of tools to deliver a cinema-style experience in vivid surround sound.
  • Delivers vivid surround sound for music, movies, and games, using two to eight speakers or any set of headphones
  • Designed to automatically deliver the best possible listening experience
  EuP Lot 6 support
The EuP (as known as Energy Using Products Directive) is part of new European Union's environment regulations. EuP established is based on the concern of environmental issues regards electronic devices been gained popularity and how to improve energy efficiency for better and greener life. GIGABYTE presents standard motherboards to help you effectively improving system performance and saving more energy.


Specifications
CPU
  1. Support for an Intel  Core i7 series processor in the LGA1366 package
    (Go to GIGABYTE's website for the latest CPU support list.)
  2. L3 cache varies with CPU
QPI
  1. 4.8GT/s, 6.4GT/s
Chipset
  1. North Bridge: Intel  X58 Express Chipset
  2. South Bridge: Intel  ICH10R
Memory
  1. 6 x 1.5V DDR3 DIMM sockets supporting up to 24 GB of system memory(Note 1)
  2. Dual/3 channel memory architecture
  3. Support for DDR3 2200/1333/1066/800 MHz memory modules
  4. Support for non-ECC memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules
(Go to GIGABYTE's website for the latest memory support list.)
Audio
  1. Realtek ALC889 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for Dolby  Home Theater
  5. Support for S/PDIF In/Out
  6. Support for CD In
LAN
  1. 1 x Realtek RTL8111D chip (10/100/1000 Mbit)
Expansion Slots
  1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1/PCIEX16_2) (Note 2)
  2. 2 x PCI Express x16 slot, running at x8 (PCIEX8_1/PCIEX8_2) (Note 3) (The PCIEX16_1, PCIEX16_2, PCIEX8_1 and PCIEX8_2 slots conform to PCI Express 2.0 standard.)
  3. 2 x PCI Express x1 slots
  4. 1 x PCI slot
Multi-Graphics Technology
  1. Support for 2-Way/3-Way ATI CrossFireX/NVIDIA SLI technology
Storage Interface South Bridge:
  1. 6 x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices
  2. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
Marvell 9128 chip:
  1. 2 x SATA 6Gb/s connectors (GSATA3_6, GSATA3_7) supporting up to 2 SATA 6Gb/s devices
  2. Support for SATA RAID 0, and RAID 1
GIGABYTE SATA2 chip:
  1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  2. 2 x SATA 3Gb/s connectors (GSATA2_8, GSATA2_9) supporting up to 2 SATA 3Gb/s devices
  3. Support for SATA RAID 0, RAID 1, and JBOD
JMicron JMB362 chip:
  1. 2 x eSATA 3Gb/s connectors (eSATA/USB Combo) on the back panel sup- porting up to 2 SATA 3Gb/s devices
  2. Support for SATA RAID 0, RAID 1, and JBOD
iTE IT8720 chip:
  1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
USB Integrated in the South Bridge
  1. Up to 10 USB 2.0/1.1 ports (6 on the back panel, including 2 eSATA/USB Combo, 4 via the USB brackets connected to the internal USB headers)
NEC chip:
  1. Up to 2 USB 3.0/2.0 ports on the back panel
IEEE 1394
  1. T.I. TSB43AB23 chip
  2. Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector Connectors
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x floppy disk drive connector
  4. 1 x IDE connector
  5. 8 x SATA 3Gb/s connectors
  6. 2 x SATA 6Gb/s connectors
  7. 1 x CPU fan header
  8. 3 x system fan headers
  9. 1 x power fan header
  10. 1 x North Bridge fan header
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x CD In connector
  14. 1 x S/PDIF In header
  15. 1 x S/PDIF Out header
  16. 2 x USB 2.0/1.1 headers
  17. 1 x IEEE 1394a header
Back Panel Connectors
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x coaxial S/PDIF Out connector
  4. 1 x optical S/PDIF Out connector
  5. 1 x clearing CMOS button
  6. 2 x IEEE 1394a ports
  7. 4 x USB 2.0/1.1 ports
  8. 2 x USB 3.0 ports
  9. 2 x eSATA/USB Combo connectors
  10. 1 x RJ-45 port
  11. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
  1. iTE IT8720 chip
H/W Monitoring
  1. System voltage detection
  2. CPU/North Bridge temperature detection
  3. CPU/System/Power fan speed detection
  4. CPU overheating warning
  5. CPU fan fail warning
  6. CPU/System fan speed control (Note 4)
BIOS
  1. 2 x 16 Mbit flash
  2. Use of licensed AWARD BIOS
  3. Support for DualBIOS
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
  1. Support for @BIOS
  2. Support for Q-Flash
  3. Support for Xpress BIOS Rescue
  4. Support for Download Center
  5. Support for Xpress Install
  6. Support for Xpress Recovery2
  7. Support for EasyTune (Note 5)
  8. Support for Dynamic Energy Saver 2
  9. Support for Smart 6
  10. Support for Auto Green
  11. Support for eXtreme Hard Drive
  12. Support for Q-Share
Bundle Software
  1. Norton Internet Security (OEM version)
Operating System
  1. Support for Microsoft  Windows  7/Vista/XP
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
Note (Note 1) Due to Windows Vista/XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.
(Note 3) The PCIEX8_1 and PCIEX8_2 slots share bandwidth with the PCIEX16_1 and PCIEX16_2 slots espectively. When PCIEX8_1 is populated with an expansion card, the PCIEX16_1 slot will operate at up to x8 mode; when PCIEX8_2 is populated with an expansion card, the PC IEX16_2 slot will operate at up to x8 mode.
(Note 4) Whether the CPU/system fan speed control function is supported will depend on the CPU/ system cooler you install.
(Note 5) Available functions in EasyTune may differ by motherboard model.
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.


Product Warranty


3-year Manufact.
