HOME / Back -> Inactive but keeping -> Intel Socket 1156 (Socket H) -> Intel

Intel Core i5 660 Dual Core (3.33GHz, 3.6GHz Turbo, 733MHz GPU) - LGA1156, 1333MHz, 2.5 GT/s DMI, HTT, 4MB Cache, 32nm, 73W

IMG 1 of 1
No Longer Available
Part Number:
134076
(?) Brand:
Intel Web Site
Manuf No:
BX80616I5660
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
BX80616I5660, 1036410, 735858212281

Intel Core i5-660 Processor (4M Cache, 3.33 GHz)

Essentials
Status Launched
Launch Date Q1'10
Processor Number i5-660
# of Cores 2
# of Threads 4
Processor Base Frequency 3.33 GHz
Max Turbo Frequency 3.6 GHz
Intel Smart Cache 4 MB
Instruction Set 64-bit
Instruction Set Extensions SSE4.1, SSE4.2
Embedded Yes
Supplemental SKU No
Processing Die Lithography 32 nm
Max TDP 73 W
Memory Specifications
Max Memory Size
(dependent on memory type)		 16 GB
Memory Types DDR3-1066/1333
# of Memory Channels 2
Graphics Specifications
Integrated Graphics Yes
Graphics Base Frequency 733 MHz
Intel Clear Video Technology Yes
Dual Display Capable Yes
Expansion Options
PCI Express Revision 2.0
PCI Express Configurations 2x8, 1x16
Package Specifications
Max CPU Configuration 1
Package Size 37.5 mm x 37.5 mm
Processing Die Lithography 32 nm
Processing Die Size 81 mm2
# of Processing Die Transistors 382 million
Graphics and IMC Lithography 45 nm
Graphics and IMC Die Size 114 mm2
# of Graphics and IMC Die Transistors 177 million
Sockets Supported FCLGA1156
Halogen Free Options Available Yes
Advanced Technologies
Intel Turbo Boost Technology Yes
Intel Hyper-Threading Technology Yes
Intel Virtualization Technology (VT-x) Yes
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel Trusted Execution Technology Yes
AES New Instructions Yes
Intel 64 Yes
Idle States Yes
Enhanced Intel Speedstep Technology Yes
Execute Disable Bit Yes

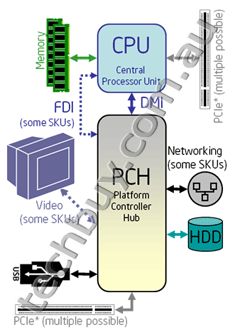

Block Diagrams
Block Diagram

No additional files, specification sheets, guides or documentation found for product.
