PowerColor Radeon HD 5670 - 1GB GDDR5 - (775MHz, 4000MHz)
  • 128-bit, VGA, DVI, HDMI, PCI-Ex16 v2.1, Fansink

IMG 1 of 1
No Longer Available
Part Number:
134080
(?) Brand:
PowerColor
Manuf No:
47125050-25551
4712505025551
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Date Added:
14/1/2010
Details Files Images & Video
All stock codes associated to this product
4712505025551, 47125050-25551, VGCPR83FMTI3
Features

  • 627 million 40nm transistors
  • TeraScale 2 Unified Processing Architecture
    • 400 Stream Processing Units
    • 20 Texture Units
    • 32 Z/Stencil ROP Units
    • 8 Color ROP Units
  • GDDR5 memory interface
  • PCI Express 2.1 x16 bus interface
  • DirectXRR 11 support
    • Shader Model 5.0
    • DirectCompute 11
    • Programmable hardware tessellation unit
    • Accelerated multi-threading
    • HDR texture compression
    • Order-independent transparency
  • OpenGL 3.2 support1
  • Image quality enhancement technology
    • Up to 24x multi-sample and super-sample anti-aliasing modes
    • Adaptive anti-aliasing
    • 16x angle independent anisotropic texture filtering
    • 128-bit floating point HDR rendering
  • ATI Stream acceleration technology
    • OpenCL Support1
    • DirectCompute 11
    • Accelerated video encoding, transcoding, and upscaling4,5
      Native support for common video encoding instructions
  • ATI CrossFireXTM multi-GPU technology6
    • Dual GPU scaling
  • ATI Avivo HD Video & Display technology7
    • UVD 2 dedicated video playback accelerator
    • Advanced post-processing and scaling8
    • Dynamic contrast enhancement and color correction
    • Brighter whites processing (blue stretch)
    • Independent video gamma control
    • Dynamic video range control
    • Support for H.264, VC-1, MPEG-2, and Adobe Flash9
    • Dual-stream 1080p playback support10,11
    • DXVA 1.0 & 2.0 support
    • Integrated dual-link DVI output with HDCP12
      Max resolution: 2560x160013
    • Integrated HDMI 1.3 output with Deep Color, xvYCC wide gamut support, and high bit-rate audio
      Max resolution: 1920x120013
    • Integrated VGA output
      Max resolution: 2048x153613
    • Integrated HD audio controller
      Output protected high bit rate 7.1 channel surround sound over HDMI with no additional cables required
      Supports AC-3, AAC, Dolby TrueHD and DTS Master Audio formats
  • ATI PowerPlayTM power management technology7
    • Dynamic power management with low power idle state
    • Ultra-low power state support for multi-GPU configurations
  • Certified drivers for Windows 7, Windows Vista, and Windows XP
  1. OpenCL compliant driver and SDK release scheduled for later in 2010
  2. ATI Eyefinity Technology can support up to 6 displays using a single enabled ATI RadeonTM graphics card the number of displays may vary by board design and you should confirm exact specifications with the applicable manufacturer before purchase. ATI Eyefinity technology works with games that support non-standard aspect ratios, which is required for panning across multiple displays. To enable more than two displays, additional panels with native DisplayPortTM connectors, and/or certified DisplayPortTM adapters to convert your monitors native input to your cards DisplayPort? or Mini-DisplayPortTM connector(s), are required
  3. ATI Eyefinity technology works with games that support non-standard aspect ratios which is required for panning across three displays
  4. Requires application support for ATI Stream technology
  5. Digital rights management restrictions may apply
  6. ATI CrossFireXTM technology requires an ATI CrossFireX Ready motherboard, an ATI CrossFireXTM Bridge Interconnect (for each additional graphics card) and may require a specialized power supply
  7. ATI PowerPlayTM, ATI AvivoTM and ATI Stream are technology platforms that include a broad set of capabilities offered by certain ATI RadeonTM HD GPUs. Not all products have all features and full enablement of some capabilities and may require complementary products
  8. Upscaling subject to available monitor resolution
  9. Adobe Flash video acceleration and post-processing is supported for H.264-encoded content. Requires Adobe Flash Player 10.1 plug-in and Catalyst 9.11 or higher.
  10. Blu-ray or HD DVD drive and HD monitor required
  11. Requires Blu-ray movie disc supporting dual 1080p streams
  12. Playing HDCP content requires additional HDCP ready components, including but not limited to an HDCP ready monitor, Blu-ray or HD DVD disc drive, multimedia application and computer operating system.
  13. Some custom resolutions require user configuration

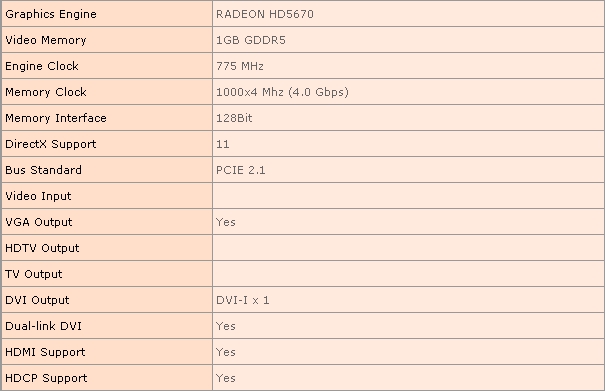

Specifications
