Premium high quality 2mm thick aluminum treated with S.A. Surface Processing.
* S.A. (Sand Blasting, Anodizing)
|
|
Sleek design incorporating a high quality 2mm thick aluminum panel with a fine curvature and great cooling performance. |
|
| |
 |

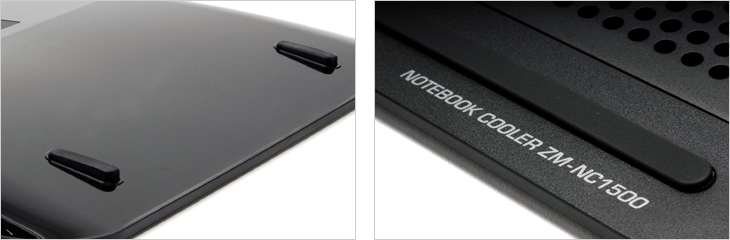

| Silicon shoes on feet to prevent slippage and provide cooler stability. |
|
The Rubber Grip Strip prevents the notebook from sliding. |
|
| |
 |

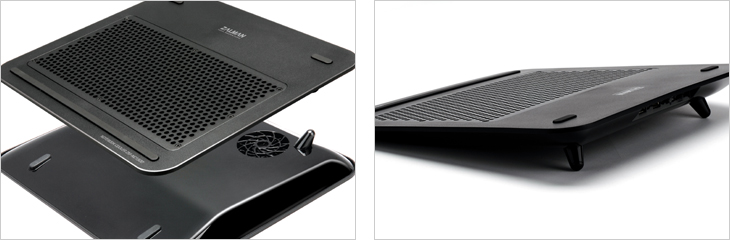

| Two-body design that melds comforting simplicity with superior cooling function. |
|
Ergonomically designed to minimize user fatigue. |
|
| |
 |

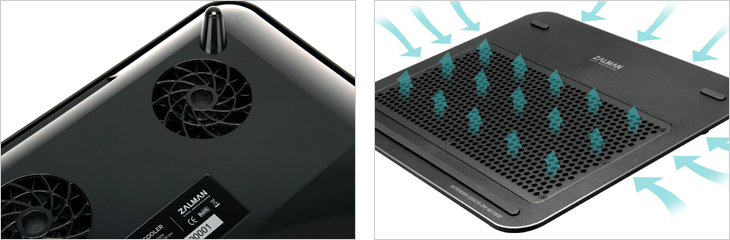

| Two centrifugal fans for consistent high air pressure and fast cooling performance. |
|

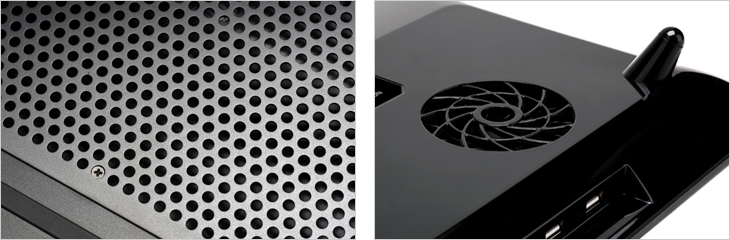

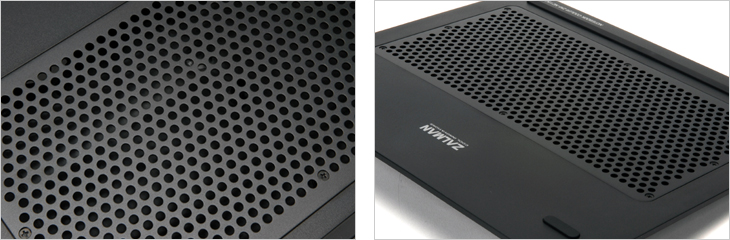

724high capacity vent holes evenly distribute the flow of cold air to cool the entire notebook. |
|
| |
 |
| Optimized ventilation structure and aerodynamic design provide excellent performance even during low noise level operation. |
|
Cools the notebook allowing its internal fan to operate quietly at low RPM, making it ideal for quiet environments such as libraries and offices. |
|
| |
 |

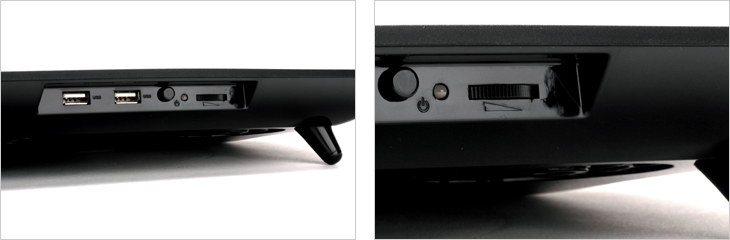

| Powered by the notebooks USB port, eliminating the need for a separate power adaptor. The cooler includes one available USB port, which can be used for indirectly connecting a USB device to the notebook computer. |
|
Fan speed adjustable to accommodate the user's environment. |
|
| |
 |

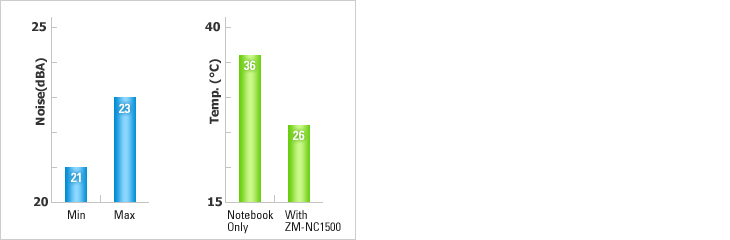

| Reduces the notebooks temperature and noise level simultaneously. Test Environment : LG Notebook Computer Xnote R500 Maximum Load, ZM-NC1500 operating on minimum RPM |
|
|
|
| |
 |
| |
 |
| |
| Dimensions |
345(L) x 299(W) x 52(H) mm |
| Weight |
789g |
| Base Material |
pure AL, ABS, nylon, rubber synthetic, silicon |
| Noise |
18.0 - 23.5 dBA 10 % |
| Input Voltage |
5V(USB powered) |
| Coloer |
Black |
|
| |
 |
| |
| Type |
Centrifugal Fan |
| Units |
2 units |
| Bearing Type |
Hypro sleeve |
| RPM |
1,100 - 1,500rpm 10 % |
|
| |
 |

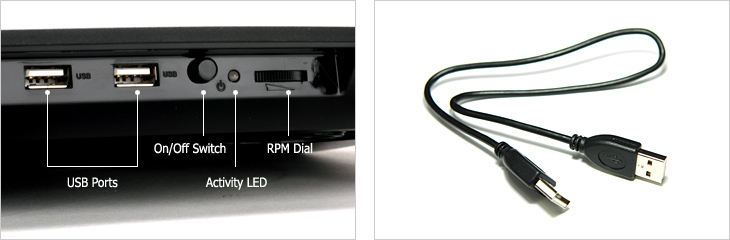

| Names of the coolers different parts. |
|
Other components: USB cable and users manual - one of each. |
|
| |
 |
 |
Zalman Tech Co., Ltd. is not responsible for any damages due to improper product use. |
| |
 |
Excessive force exerted on the product may cause critical damage to the product and/or system. |
| |
 |
To prevent damages, do not allow objects to obstruct fan rotation. |
| |
 |
To prevent shorting and/or damage of the fans, do not spill liquids on the unit. |
| |
 |
Do not obstruct the air inlets. |
| |
 |
Use on a flat and vibration-free surface. |
| |
 |
Do not use in humid or dusty, under direct sunlight, or other heat sources. |
| |
 |
Please seal the unit airtight when storing for prolonged periods to prevent buildup in the inlets. |
| |
 |
Product designs and specifications may be revised without prior notification to improve quality and performance. |
|
