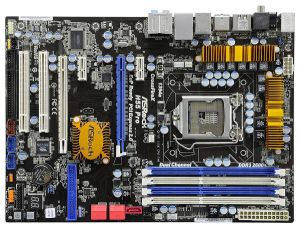

H55PRO | Asrock H55 Pro Motherboard

1. Supports Intel  Core i7 / i5 / i3 and Pentium  G6950 Processors in LGA1156 Package
2. ASRock DuraCap (2.5 x longer life time), 100% Japan-made high-quality Conductive Polymer Capacitors
3. Advanced V8 + 2 Power Phase Design
4. Supports Intel  Turbo Boost Technology
5. Intel  H55 Chipset
6. Supports Dual Channel DDR3 2600+(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory, 4 x DIMM slots, Max. capacity up to 16GB

• Supports ATI CrossFireX , Quad CrossFireX
• 1 x PCI Express 2.0 x16 slot (at x16 mode), 1 x PCI Express 2.0 x16 slot (at x4 mode, 2.5GT/s)
• 5 x SATAII 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions
• 1 x Powered eSATAII/USB Connector
• 2 x IEEE1394 ports (one port on back panel, one header on board)
• PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Supports ASRock Instant Boot, Instant Flash, OC DNA, Good Night LED, Multi-Speed Fan Control, OC Tuner, IES
• EuP Ready
• Combo Cooler Option (C.C.O.)
• Smart Swith Design : 1 x Power Switch with LED, 1 x Reset Switch with LED, 1 x Clear CMOS Switch with LED
• 7.1 CH HD Audio with Content Protection (VIA  VT2020 Audio Codec)
• Premium Blu-ray audio support up to 192 KHz/24 bit 8-channels, SNR 110dB
• Dr. Debug with LED
• Compatible with Windows  7
• Free Bundle : CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial
• I/O Panel: 1 x Coaxial SPDIF Out Port, 1 x Optical SPDIF Out Port, 1 x IEEE 1394 Port, 7 x Ready-to-Use USB 2.0 Ports, 1 x Powered eSATAII/USB Connector, 1 x RJ-45 LAN Port with LED, 1 x Clear CMOS Switch with LED

Features

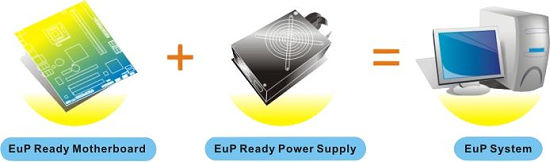

EuP Reday

EuP, stands for Energy Using Product, was a provision regulated by European Union to define the power consumption for the completed system. According to EuP, the total AC power of the completed system shall be under 1.00W in off mode condition. To meet EuP standard, the EuP ready motherboard and the EuP ready power supply are required. (The EuP ready power supply must meet the standard of 5v standby power efficiency is higher than 50% under 100 mA current consumption.).

DDR3 2600+

Delivering the worlds fastest DDR3 memory support up to 2600+ MH/z. ASRock motherboards allow users to enjoy the better computing experience and reach a higher overclocking performance.

Premium Blu-ray Audio

An outstanding technology developed on ASRock motherboard! It provides the excellent audio output of 24-bit/192 kHz with its respective Blu-ray DRM compatible driver/software.

ATI CrossFireX Technology

CrossFireX is a brand name for ATI Technologies multi-GPU solution. The technology allows a pair of graphics cards to be used in a single computer to improve graphics performance.

DuraCap

ASRock DuraCap featuring all solid capacitor design, 100% Japan-made high-quality Conductive Polymer Capacitors which can last 2.5 times longer lifespan.

OC DNA

OC DNA, its an exclusive utility developed by ASRocks outstanding RD team, provides a convenient way for user to share the OC settings with others. It helps you to save your overclocking settings under the operating system and simplifies the complicated recording process of overclocking settings. With OC DNA, you can save your OC settings as a profile and send the profile to your friends! Your friends then can load the OC profile to their own system to get the same OC settings as yours!

Power eSATAII/USB connector

The powered eSATAII/USB connector can not only support USB device, but also eSATAII devices without additional power source. It is compatible with both eSATAII and USB interfaces.

Intel  Turbo Boost Monitor

Intel  Turbo Boost Monitor is a user-friendly tool which allows you to monitor the CPU Turbo Boost frequency more conveniently! Intel  Turbo Boost Monitor not only helps you to further trace your current CPU status with dynamic data, but also gets the optimal performance and energy efficiency!

C.C.O. (Combo Cooler Option)

C.C.O., stands for Combo Cooler Option, is another exclusive hardware design on ASRock boards. C.C.O. provides the flexible options to adopt different CPU cooler types and matches your socket LGA 775 / LGA 1156 CPU cooler in the respective holes. Once again, ASRock has successfully expanded the utilization of PCB by the exclusive C.C.O. design.

ASRock Software Suite

ASRock software suite is designed with the customer-oriented concept, delivers the best possible experience for todays most demanding users. The Sound Blaster X-Fi MB solution ensures you the premium audio quality, effects and features for PC systems equipped with onboard audio. For instance, the X-Fi CMSS-3D technology expands your stereo audio into surround sound via multi-channel speaker, stereo speaker or even headphone; the X-Fi Crystalizer technology restores the compressed sound source and can even let you hear every detail in riveting surround sound. Combined with the Creative user-friendly software and the ASRock high performance motherboard, you will be assured to enjoy a rich variety of programming and be entertained by a better way.
