ASUS P5KPL-AM Motherboard
LGA775, G31, ICH7, 1600FSB, 2xDDR2-1066, 1x PCI-Ex16, 4xSATA-II, 1xATA-100, 1xLAN, 8Chl-HD, VGA, mATX

No Longer Available

Part Number:

135213

(?) Brand:

ASUS Web Site

Manuf No:

P5KPL-AM
P5KPLAM

Shipping Weight:

5 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

P5KPLAM, P5KPL-AM

P5KPL-AM with Intel G31 chipset inside supports Intel Quad-core CPU and features 1600(OC)/1333/1066/800MHz FSB, PCI Express x 16, Serial ATA interface, high performance integrated graphics engine, dual-channel DDR2 1066(O.C.)/800/667 memory, and 8 Channel HD Audio CODEC. Users can experience faster graphics performance and higher video quality today. P5KPL-AM is the most affordable all-in-one solution platform for Intel Core2 Processor with Intel G31 chipset inside.

Intel Quad Core Processor Ready

This motherboard supports the latest Intel Quad-core processors in LGA775 package. It also can support Intel next generation 45nm Multi-Core CPU. Its excellent for multi-tasking, multi-media and enthusiastic gamers with 1600(O.C.)/1333/1066/800 MHz FSB. Intel Quad-core is one of the most powerful CPU in the world.

LGA775 Intel Core2 Processor

This motherboard supports the latest Intel Core2 processors in LGA775 package. With new Intel Core microarchitecture technology and 1600(O.C.)/1333/1066/800 MHz Intel Core2 processor is one of the most powerful and energy efficient CPU in the world.

Intel G31 Chipset

The Intel G31 Express Chipset boosts your gaming and multimedia experience with the integrated graphics engine Intel Graphics Media Accelerator 3100. It supports 1333MHz FSB (front-side-bus), and delivers breakthrough advances in 3D and 2D graphics; and video capabilities. This integrated chipset is able to meet the changing display requirements of visually rich applications and features the Intel Clear Video Technology - which trailblazes new standards in high-definition video, crisp imaging, and accurate color control.

FSB 1600 support (O.C.)

ASUSs exclusive overclocking design now unleashes the ultimate potential of the Intel Core2 processor. With the new Intel 45nm micro-architecture technology and FSB 1600 (O.C.) / 1333 / 1066 / 800 MHz, this motherboard allows you to enjoy the latest technology supported by one of the most powerful and energy efficient CPUs in the world.

Dual-Channel DDR2 1066(O.C.)

Dual-channel DDR2 technology doubles the bandwidth of your system memory and hence boost the system performance to out perform any memory existing solutions in the market.

PCI Express Architecture

PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better than AGP 8X in applications such as 3D gaming. PCI Express x1 and x4 also outperforms PCI interface with its exceptional high bandwidth. The high speed PCI Express interface creates new usages on desktop PCs.

8 Channel High Definition Audio

Enjoy high-end sound system on your PC! The onboard HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.

SATA 3Gb/s

Serial ATA3.0Gb/s is the next generation ATA specification that provides scalable performance foroday and tomorrow. With up to 300MB/s data transfer rate, Serial ATA II is faster than current Parallel ATA, while providing 100% software compatibility.

MyLogo2

Personalize your system with customizable boot logo
You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.

EZ Flash2

Simply update BIOS from a USB flash disk before entering the OS
EZ Flash is a user-friendly BIOS update utility. Simply press the pre-defined hotkey to launch this tool and update BIOS from a floppy disk before entering the OS.

CrashFree BIOS 3

Simply restore corrupted BIOS data from USB flash disk
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.

ASUS Q-Fan

ASUS Q-Fan technology intelligently adjusts CPU fan speeds according to system loading to ensure quiet, cool and efficient operation.

Compliance with the RoHS Directive

The motherboard and its packaging comply with the European Unions Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers health while minimizing the impact on the environment.

Specifications

CPU	Intel Socket 775 Core2 Quad/Core2 Extreme/Core2 Duo/Pentium D/Pentium 4/Celeron E1000 Series and Celeron 400 Series Intel Hyper-Threading Technology ready *Refer to www.asus.com for Intel CPU support list
Chipset	Intel G31 Intel ICH7
Front Side Bus	1600/1333/1066/800 MHz (1600 is overclock speed)
Memory	2 x DIMM, Max. 4 GB, DDR2 1066(O.C.)/800/667 Non-ECC,Un-buffered Memory Dual Channel memory architecture Overclock speed Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List) **When installing total memory of 4GB capacity or more, WindowsR 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots	1 x PCIe x16 1 x PCIe x1 2 x PCI
VGA	Integrated Intel Graphics Media Accelerator (Intel GMA 3100) Max. resolution:2048x1536X32bpp, Horizontal:127.5KHz Vertical:85Hz
Storage	Southbridge 1 xUltraDMA 100/66/33 4 xSATA 3 Gb/s ports
LAN	Realtek RTL8102EL 100/10 LAN
Audio	VIA VT1708B 8 -Channel High-Definition Audio CODEC Anti-Pop Function Jack-detect & Multi-Streaming Support S/PDIF Out connector
USB	8 USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)
Overclocking Features	SFS (Stepless Frequency Selection) - FSB tuning from 200MHz up to 600MHz at 1MHz increment Overclocking Protection - ASUS C.P.R.(CPU Parameter Recall)
Special Features	ASUS MyLogo 2 ASUS EZ Flash 2 ASUS CrashFree BIOS 3 ASUS Q-Fan

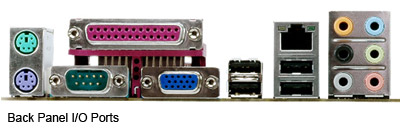

Back Panel I/O Ports	1 x Parallel 1 x VGA 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x LAN(RJ45) port 4 x USB 2.0/1.1 1 x COM port 8 -Channel Audio I/O
Internal I/O Connectors	2 x USB connectors support additional 4 USB ports 1 x Floppy disk drive connector 1 x IDE connector 4 x SATA connectors 1 x internal speaker connector 1 x S/PDIF Out connector 1 x CPU/ Chassis/ Power Fan connector 1 x Front panel High Definition audio connector 1 x Chassis Intrusion connector 1 x CD audio in connector 24-pin EPS 12V Power connector 4-pin ATX 12V Power connector 1 x System Panel connector
BIOS	8 Mb Flash ROM DMI 2.0 AMI BIOS PnP WfM 2.0 SM BIOS 2.5 ACPI 2.0
Manageability	WOL,PXE,RPL,WOR ,PME Wake Up
Accessories	User's manual 1 x UltraDMA 133/100/66 cable 1 x Floppy disk drive cable 1 x SATA cable 1 x SATA power cable I/O Shield
Support Disc	Drivers ASUS PC Probe II Anti-virus software (OEM version) ASUS Update
Form Factor	uATX Form Factor 9.6 inch x8 inch ( 24.4 cm x 20.3 cm )
