All stock codes associated to this product
VL20001W2Z, CASEVL20001W2Z, CASE-VL20001W2Z

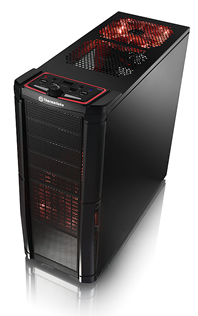

Voodoo - Color shift Fan with 6 color changing pattern for optimal gamingexperience.
Vivid - Three color shifting fans creates most eye catching appearance.
Vary - Adjustable fan speed control for performance mode or silent mode.
Ventilation - Excellent thermal performance with optimized air flow.

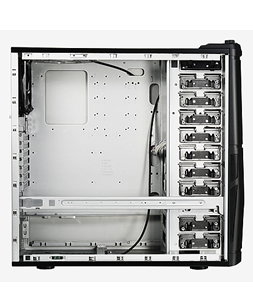

Vast - Support up to 11X5.25 drive bay or 5X5.25 and 6X3.5 with 2 iCage.
Keyboard & mouse security lock
USB 2.0 x 4, eSATA x 1, HD Audio,
Fan Speed & Light Control Knob,
easy access Power & Reset button
Reserved holes for LCS system
Easy remove mechanical
for front pane
Innovative design for water bottle
cage assembly (optional)
Aerodynamic intake design for both superior thermal performance and
Specifications
| |
|
| Case Type |
Full Tower |
| Material |
SECC |
| Front Bezel Material |
Plastic |
| Color |
Black |

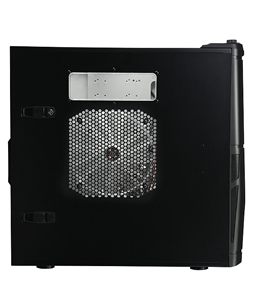

| Side Panel |
solid w/23cm side fan |
| Motherboard Support |
Mini ATX
Full ATX
Extended ATX
|
| Motherboard Tray |
No |
| 5.25" Drive Bay |
5 |
| Ext. 3.5" Drive Bay |
|
| Int. 3.5" Drive Bay |
6
With Additional1 x 2.5" HDD / SSD bay |
| Expansion Slots |
7 |
| Front I/O Ports |
USB 2.0 x 4,
HD Audio ports,
eSATA x 1 |

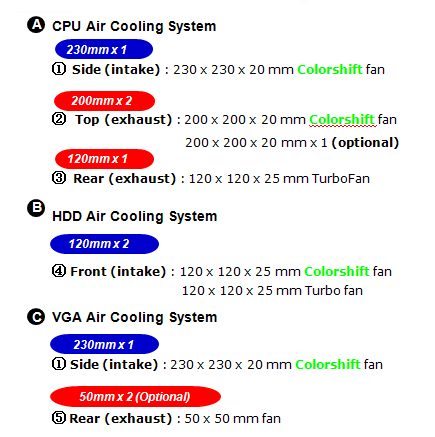

| Cooling System |
Front (intake) :
120 x 120 x 25 mm Colorshift fan (900/1200rpm,17dBA, 35.01/46.67 CFM)
120 x 120 x 25 mm Turbo fan (1400rpm,17dBA, 46.67 CFM)
Rear (exhaust) :
120 x 120 x 25 mm Turbo fan (1400rpm, 17dBA, 50.0 CFM)

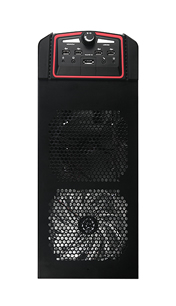

Top (exhaust) :
200 x 200 x 20 mm silent Colorshift fan (600/800rpm, 14dBA, 49.735/65.3 CFM)
200 x 200 x 20 mm x 1(optional)
VGA (exhaust) :optional
50 x 50 mm fan x 2
Side (intake) :
Plug & Play 230 x 230 x 20 mm Colorshift fan (600/800rpm, 14dBA, 57.0/76 CFM)
|
| Liquid Cooling Capable |
Yes- Supports 1/2 , 3/8 , 1/4 water tube |
| Liquid Cooling Embedded |
No |
| Power Supply Supported |
Standard ATX PSII(optional) |
| Power Supply Included |
No |
| Dimension (H*W*D) |
532 (H) x 220(W) x 537(L) mm
20.9(H) x 8.7(W) x 21.1(L) in |
| Net Weight |
14.13 kg
31.15 lb |
| Security Lock |
|
| Application |
|
|
