No Longer Available

Part Number:
136460
Usually Ships:
No Longer Available More info
(?) Brand:
Manuf No:
WD1002FAEX
Shipping Weight:
1 KG (Includes product packaging)
Rating:
5 out of 5 star product rating5 out of 5 star product rating5 out of 5 star product rating5 out of 5 star product rating5 out of 5 star product rating

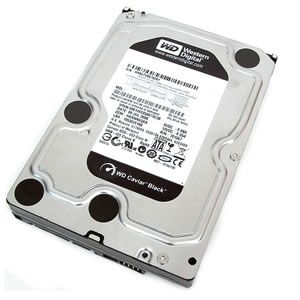

WD CaviarBlack
Desktop Hard Drives
1 TB, SATA 6 Gb/s, 64 MB Cache, 7200 RPM

Maximum performance for power computing.

Power your PC with our top-of-the-line high-capacity drives.

WD Caviar Black drives combine a high performance electronics architecture with a rock solid mechanical architecture to deliver the perfect storage solution for your fully-loaded PC or maxed out gaming machine. Cool drive operation, no-touch head technology, and leading-edge vibration protection ensure enhanced reliability and sustained data throughput. And we back it all up with a 5-year limited warranty.

Key Features

High Performance Electronics Architecture
  • Dual processor - Twice the processing power to maximize performance.
  • Colossal cache - Bigger, faster cache of up to 64 MB means faster performance.
  • Rock Solid Mechanical Architecture
  • Dual actuator technology - A head positioning system with two actuators that improves positional accuracy over the data track(s). The primary actuator provides coarse displacement using conventional electromagnetic actuator principles. The secondary actuator uses piezoelectric motion to fine tune the head positioning to a higher degree of accuracy. (2 TB only)
  • StableTrac - The motor shaft is secured at both ends to reduce system-induced vibration and stabilize platters for accurate tracking, during read and write operations.
  • NoTouch ramp load technology - The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
  • Massive Capacity - WD Caviar Black SATA drives are available in capacities
    up to 2 TB.
    Compatible - We perform tests on hundreds of systems and a multitude of platforms in our FIT Lab and Mobile Compatibility Lab to give our customers confidence that our drives will work in their systems.
    5 Year Limited Warranty
    Ideal For

    Power computing applications such as multimedia, video and photo editing, and maxed out gaming computers.

    How this WD hard drive protects your data
    • Data Lifeguard is an exclusive set of data protection features, including shock protection, an environmental protection system and real-time embedded error detection and repair. WD's Data Lifeguard technology automatically finds, isolates, and repairs problems that may develop over the life of a hard drive.
    • Data Lifeguard Tools are software utilities designed for WD hard drives that work with the embedded Data Lifeguard features to make hard drive installation,diagnostics and repair both simple and worry-free.
    • ShockGuard instantaneously protects the hard drive against damage from bumps and vibrations while it is running. This technology enables WD Caviar drives to achieve industry-leading shock specifications.


    Specifications

    Performance Specifications
    Transfer Rates
    Transfer Rate (Buffer To Disk) 126 MB/s (Max)
    Physical Specifications
    Formatted Capacity 1,000,204 MB
    Capacity 1 TB
    Interface SATA 6 Gb/s
    User Sectors Per Drive 1,953,525,169
    Physical Dimensions
    English
    Height 1.028 Inches
    Length 5.787 Inches
    Width 4.00 Inches
    Weight 1.52 Pounds
    Metric
    Height 26.1 mm
    Length 147 mm
    Width 101.6 mm
    Weight 0.69 kg
    Environmental Specifications
    Shock
    Operating Shock (Read) 30G, 2 ms
    Non-operating Shock 300G, 2 ms
    Acoustics
    Idle Mode 28 dBA (average)
    Seek Mode 0 33 dBA (average)
    Seek Mode 3 29 dBA (average)
    Temperature (English)
    Operating 32 F to 140 F
    Non-operating -40 F to 158 F
    Temperature (Metric)
    Operating -0 C to 60 C
    Non-operating -40 C to 70 C
    Electrical Specifications
    Current Requirements
    Power Dissipation
    Read/Write 6.80 Watts
    Idle 6.10 Watts
    Standby 0.70 Watts
    Sleep 0.70 Watts

    No additional files, specification sheets, guides or documentation found for product.

    Warranty: 5 Years

    Full manufacturers warranty details are available at the manufacturers (Western Digital) web site.

    Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

    To apply for return of a product just go to our returns page.

    These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

    Visitor Reviews

    Average Visitor Review: 5 out of 5 star product rating5 out of 5 star product rating5 out of 5 star product rating5 out of 5 star product rating5 out of 5 star product rating
    Number of Reviews Found: 1 ( 5 / 5 )

    Reviewd By: Cameron
    Visitors Age: 25
    Visitors Rating:

    Accurate and Timely

    The product was delivered in good condition and great care was taken in the packaging. I received the HDD quickly. Thanks Techbuy!

    Click on a thumbnail to view it below
