All stock codes associated to this product
AX5670512MD5H, AX5670-512MD5-H
RADEON HD5670,512MB,GDDR5,PCIE2.1,DVI,HDMI,DX11,VGA
Features:
- 627 Million 40nm Transistors
- Tera Scale 2 Unfied Processing Architecture
- 400 Stream Processing Units
- 20 Texture Units
- 32 Z/Stencil ROP Units
- 8 Color ROP Units
- GDDR5 Memory Interface
- PCI Express 2.1 x16 bus Interface
- DirectXRR 11 Support
- Shader Model 5.0
- Direct Compute 11
- Programmable hardware tesellation unit
- Accelerated multi-threading
- HDR Texture Compression
- Order-Independent Transparency
- OpenGL 3.2 Support
- Image Quality Enhancement technology
- Up to 24x Multi-sample and super-sample anti-aliasing modes
- Adaptive Anti aliasing
- 16x Angle Independent anisotropic texture filtering
- 128-bit floating point HDR rendering
- ATI Streaming Acceleration Technology
- OpenCL Support 1
- Direct Compute - 11
- Accelerated Video Encoding, transcoding, and upscaling 4.5
- Native support for common video encoding instructions
- ATI CrossFireXTM multi-GPU technology6
- Dual GPU scaling
- ATI Avivo HD Video & Display technology7
- UVD 2 dedicated video playback accelerator
- Advanced post-processing and scaling8
- Dynamic contrast enhancement and color correction
- Brighter whites processing (blue stretch)
- Independent video gamma control
- Dynamic video range control
- Support for H.264, VC-1, MPEG-2, and Adobe Flash9
- Dual-stream 1080p playback support10,11
- DXVA 1.0 & 2.0 support
- Integrated dual-link DVI output with HDCP12
- Max resolution: 2560x160013 -
- Integrated HDMI 1.3 output with Deep Color, xvYCC wide gamut support, and high bit-rate audio
- Max resolution: 1920x120013
- Integrated VGA output
- Max resolution: 2048x153613
- Integrated HD audio controller Output protected high bit rate 7.1 channel surround sound over HDMI with no additional cables required
- Supports AC-3, AAC, Dolby TrueHD and DTS Master Audio formats
- ATI PowerPlayTM power management technology7
- Dynamic power management with low power idle state
- Ultra-low power state support for multi-GPU configurations
- Certified drivers for Windows 7, Windows Vista, and Windows XP

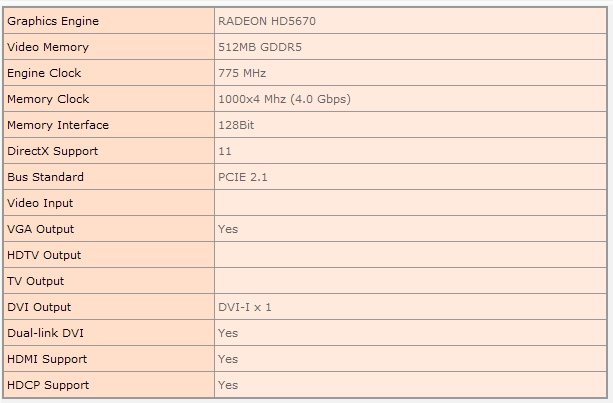

Specifications
