ThermalTake VL84521W2A V3 Black Edition Midi-Tower Case - 450W PSU, Black
2xUSB2.0, 1xAudio, 1x120mm Blue LED Fan, ATX

No Longer Available

Part Number:

136539

(?) Brand:

ThermalTake Web Site

Manuf No:

VL84521W2A

Shipping Weight:

30 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

VL84521W2A

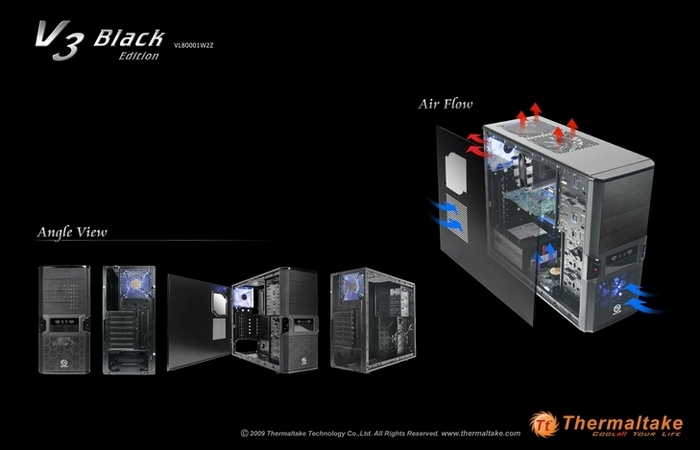

Black Edition V3 with 450w PSU Mid Tower Chassis Manufacturer: Thermaltake. The V3 Black Edition chassis features an internal black powder coating and a brilliant blue LED 120mm fan (17 dBA @ 1300rpm) for a stylish appearance. There are further mounts available in the chassis front, top and bottom

Overview:

	Black coating inside and out
	Bottom-placed PSU easier installation
	Metal mesh front bezel for maximum airflow
	Dust filter included for all 5.25 covers and PSU intake to minimise dust
	120mm silent rear exhaust fan with blue LED
	450W power supply included as standard

Features:

Mesh design for max flow

Easy access buttons

Fine black mesh

All black internals

Blue exhaust fan

Single tool free 5.25" bay

Tool free floppy bay

Single tool free HDD bay

2.5" SSD compatible

PSU dust filter

Easy access front IO

Casel feet

note: front intake fan
is optional extra

Front intake

Kensington security slot

Specifications

Model VL80001W2Z / VL84521W2U(E)

Case Type Middle Tower

Dimension H x W x D 430.0 x 190.0 x 473.0 mm
(16.9 x 7.5 x 18.6 inch)

Net Weight 6.2 kg / 13.7 lb

Side Panel Transparent Window

Color Exterior & Interior: Black

Material SECC

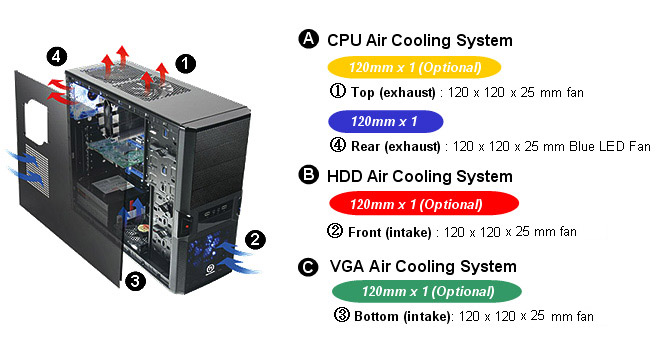

Cooling System Front (Intake) : 120 x 120 x 25 mm (optional)
Rear (Exhaust) : 120 x 120 x 25 mm Blue LED fan, 1300rpm, 17dBA
Top (Exhaust) : 120 x 120 x 25 mm (optional)
Bottom (Intake) : 120 x 120 x 25 mm (optional)

Drive Bays 10
Accessible : 4 x 5.25, 1 x 3.5
Hidden : 4 x 3.5, 1 x 2.5

Expansion Slots 7

Motherboards Micro ATX , Standard ATX

I/O Ports USB2.0 x 2, MIC & Speaker (support AC97 & HD Audio)

PSU 450W ATX 12V V2.2

450W PSU SPECIFICATIONS

P/N

W0276

Maximum Power

450 Watts

Color

Silver

P. G. Signal

100-500 ms

PFC (Power Factor Correction)

N/A

Cooling System

One 8cm Fan

Over Voltage Protection

+5V output : 7.0 V max

+3.3V output : 4.5 V max

+12V output : 15.6 V max

Cables
20+4pin ATX connector x 1
4pin 12V connector x 1
4pin molex connector x 5
4pin floppy connector x 1
6pin PCIE connector x 1
5pin SATA connector x 3
4pin extender x 1
4pin to 8pin converter x 1

DIMENSIONS

Unit Size

14cm(L)x15cm(W)x8.6cm(H)

INPUT

Input Voltage

115 VAC / 230 VAC

Input Current

10A / 5A

Input Frequency Range

60 Hz / 50 Hz

Hold-up Time

17ms(minimum) at 70% Load

ENVIRONMENTAL

Operating Temperature

0 to +25

Operating Humidity

20% to 85%,non-condensing

DC OUTPUT

DC OUTPUT

+3.3V

+5V

+12V1

+12V2

-12V

+5Vsb

Max Output Current

25A

28A

14A

15A

0.3A

2.0A

Min Output Current

0.5A

0.3A

1.0A

1.0A

0A

0A
