Edimax PS-3207UWg Wireless Print Server - 802.11b/g, 2xUSB2.0, 1xParallel

IMG 1 of 1
No Longer Available
Part Number:
137143
(?) Brand:
Edimax
Manuf No:
PS-3207UWg
PS3207UWg
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
PS3207UWg, PS-3207UWg, ED17726
PS-3207UWg
Wired / Wireless 2 USB 2.0 + 1 Parallel ports Print

  • Complies with IEEE 802.3/802.3u standards, and wireless 802.11b/g standards (PS-3207UWg only)
  • Includes multilingual EZmax setup wizard
  • Shares 2 USB 2.0 +1 Parallel printers* with network users
  • Supports TCP/IP, IPX/SPX, NetBEUI and Apple Talk protocols
  • Supports LPR, IPP, SMB/TCP and RAW printing protocols
  • Supports DHCP Server and Client protocols
  • Supports Auto MDI/MDI-X
  • Compatible with Windows 2000/XP/Vista, MAC OS 10.4.x and above

Overview
Broad Selection of Printing Methods
The PS-3207U/UWg print servers support a wide selection of printing protocols such as LPR, IPP, SMB/TCP and RAW printing. They can also work with different network protocols like, TCP/IP, IPX/SPX, NetBEUI, and Apple Talk. This gives you a variety of printing methods to choose from based on your requirements.

Fault-Tolerant Firmware Upgrades
Now, users need not worry about errors occurring in the midst of an upgrade that may subsequently stop its operations. The PS-3207U/UWg print servers incorporate a fault-tolerant upgrade function that permits re-upgrading of the device should problems occur during the initial or previous upgrade session.

Double-purposed DHCP Server/Client
The printer server can act as a DHCP server that lets your LAN clients to automatically obtain an IP address. It can also act as a DHCP client allowing easy integration to your existing network.

Support USB 2.0 High Speed
This print server supports USB 2.0 High Speed which increases the throughput when connected to USB 2.0 printers.

Easy & Multilingual Ezmax Setup Wizard and Utiltiy*
To facilitate connection to your printer the PS-3207U/UWg include a user-friendly EZmax setup wizard. Its easy-to-use windows installation wizard simplifies and enhances driver installation for immediate use of the device. An add-on feature allows you to conveniently configure the print server from any network client that support web-browsing.

* The EZmax Setup CD Wizard only supports Edimax print servers.


Specifications



  • Complies with IEEE 802.3/802.3u standards, and wireless 802.11b/g standards (PS-3207UWg only)
  • Includes multilingual EZmax setup wizard
  • Shares 2 USB 2.0 +1 Parallel printers* with network users
  • Supports TCP/IP, IPX/SPX, NetBEUI and Apple Talk protocols
  • Supports LPR, IPP, SMB/TCP and RAW printing protocols
  • Supports DHCP Server and Client protocols
  • Supports Auto MDI/MDI-X
  • Compatible with Windows 2000/XP/Vista, MAC OS 10.4.x and above

    STANDARDS & HARDWARE INTERFACE

    CPU / MEMORY

    POWER ADAPTER

    IEEE802.3 / 802.3u
    Wireless 802.11b/g (PS-3207UWg only)
    Two USB ports
    One Parallel port
    One 10/100Mbps LAN port
    Reset button
    One 2dBi antenna (PS-3207UWg only)

    		 RISC CPU
    2MB NOR Flash
    16MB SDRAM

    12VDC / 1A

    INSTALLATION & MANAGEMENT KITS

    SECURITY

    LED Indicators

    Multilingual EZmax Setup Wizard
    Admin Utility included
    Web-based Management
    Firmware upgrade utility    		 64/128-bit WEP Encryption, WPA-PSK and
    WPA2-PSK security (PS-3207UWg only)    		 PS-3207U
    Power, Print 1/2/3, LAN

    PS-3207UWg
    Power, WLAN, Print 1/2/3, LAN

    SYSTEM REQUIREMENTS

    OUTPUT POWER

    HUMIDITY & TEMPERATURE

    CPU: Pentium III 1G above or similar
    Memory size : 256MB RAM
    One CD-ROM drive
    Hard Disk : Min/ of 100MB disk space
    USB / Parallel Printer
    Wireless 802.11b/g or Fast Ethernet network

    16dBm - 18dBm (PS-3207UWg only)

    		 10~90% (Non-condensing)
    0~55C

    DIMENSIONS

    CERTIFICATIONS



    187 (W) x 30 (H) x 100 (D) mm

    CE, FCC

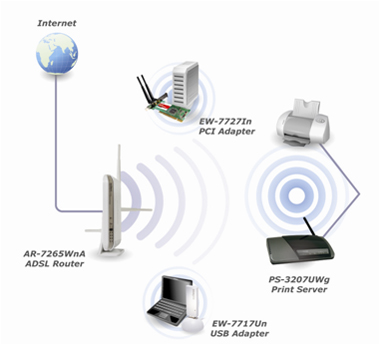

    TYPICAL SETUP DIAGRAM AND RELATED PRODUCTS




    * Please check the list of compatible printers before you make your purchase.
    * Product features and specifications are subject to change without notice.
