Intel Xeon W3530 Quad Core (2.80GHz - 3.06GHz Turbo) - LGA1366, 8MB Cache, 4.8GT/s QPI, HTT, 45nm, 130W - No Heatsink

IMG 1 of 1
No Longer Available
Part Number:
138358
(?) Brand:
Intel Web Site
Manuf No:
BX80601W3530
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
BX80601W3530, 1135470, 735858213844
Intel Xeon Processor W3530 - (8M Cache, 2.80 GHz, 4.80 GT/s Intel QPI)


SPECIFICATIONS

Essentials
Status Launched
Launch Date Q1'10
Processor Number W3530
# of Cores 4
# of Threads 8
Clock Speed 2.8 GHz
Max Turbo Frequency 3.06 GHz
Intel Smart Cache 8 MB
Bus/Core Ratio 21
Intel QPI Speed 4.8 GT/s
# of QPI Links 1
Instruction Set 64-bit
Instruction Set Extensions SSE4.2
Embedded Options Available
 No
Supplemental SKU No
Lithography 45 nm
Max TDP 130 W
VID Voltage Range 0.800V-1.375V
Memory Specifications
Max Memory Size
(dependent on memory type)		 24 GB
Memory Types DDR3-800/1066
# of Memory Channels 3
Max Memory Bandwidth 25.6 GB/s
Physical Address Extensions 36-bit
ECC Memory Supported Yes
Graphics Specifications
Integrated Graphics
 No
Package Specifications
Max CPU Configuration 1
TCASE 67.9C
Package Size 42.5mm x 45.0mm
Processing Die Size 263 mm2
# of Processing Die Transistors 731 million
Sockets Supported FCLGA1366
Halogen Free Options Available Yes
Advanced Technologies
Intel Turbo Boost Technology
 Yes
Intel Hyper-Threading Technology
 Yes
Intel Virtualization Technology (VT-x)
 Yes
Intel Trusted Execution Technology
 No
AES New Instructions
 No
Intel 64
 Yes
Idle States Yes
Enhanced Intel SpeedStep Technology
 Yes
Intel Demand Based Switching
 Yes
Thermal Monitoring Technologies No
Execute Disable Bit Yes

BLOCK DIAGRAMS

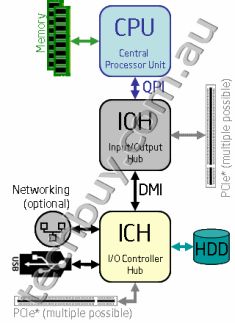

Block Diagram




No additional files, specification sheets, guides or documentation found for product.
