Edimax AR-7284WnA ADSL2/2+ Modem/Wireless Router - 802.11n, 4-Port 10/100 Switch, Up to 150Mbps, QoS

IMG 1 of 1
No Longer Available
Part Number:
138578
(?) Brand:
Edimax
Manuf No:
AR-7284WnA
AR7284WnA
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
AR7284WnA, AR-7284WnA, EDIMAR7284WNA, EDIM-AR-7284WNA
AR-7284WnA
Wireless 150Mbps ADSL2/2+ Modem Router

  • Complies with ADSL2/2+ standards with downstream andupstream data rate up to 24Mbps and1Mbps
  • Compatible with wireless 802.11n standard with data rate up to 150Mbps
  • Increases the wireless speed up to 6 times faster and extendsthe coverage 4 time further *
  • Includes EZMax multi-languages setup wizard for Internetconnection, wireless settings and firmware upgrade
  • Supports WPS configuration button
  • Supports WMM, UPnP, SNMP, DHCP, IP/MAC filter, DMZ and virtual server

Specifications

150Mbps Wireless ADSL2/2+ Modem Router
Edimax AR-7284WnA/B is a high performance router that provides a full rate of ADSL2+ standard with the superb reliability and a cost-effective solution for home and small business. This modem router compatible with 802.11n, the next generation wireless standard. With the advanced MIMO technology, it provides up to 6 times better data transmission rate (up to 150Mbps) and 3 times better coverage than a standard 802.11g/b router.

Wi-Fi Protected Setup (WPS)
Activate the wireless protection and connection by pressing the WPS button. One-Click WPS button helps you to setup a secure wireless network in a minute.

Built-in ADSL2/2+ Modem and lP Sharing
You can share the ADSL broadband connection to all wired and wireless network clients (up to 253 clients) whilst benefit from any ADSL, ADSL2 or ADSL2+ Internet connection, with up to 24Mbps Downstream speed and 1Mbps Upstream speed.

Multi-languages Setup Wizard*
A unique Multi-languages Setup Wizard is provided in the bundled CD. You can select your own language and follow a few simple steps to setup the Internet connection, router's password, SSID, wireless security and firmware upgrade.

Virtual Server and DMZ
For applications that require open port(s) such as online games, VoIP phones, web server and etc, the built-in Virtual Server and DMZ functions are featured.

Supports TR-069 for Remote Management
The AR-7284WnA/B also supports TR-069 which is a protocol specifically defines a common method for CPE devices to communicate with a server. ISP can update the firmware and other settings automatically.
HARDWARE INTERFACE
MANAGEMENT
POWER ADAPTER & BATTERY
  • 1 x RJ-11 WAN Port
  • 4 x RJ-45 Fast Ethernet LAN Ports
  • 1 x USB port
  • Power on/off Button
  • LED Indicators: Power, USB, WLAN, ADSL, LNK/ACT
  • 3dBi RP-SMA Detachable Antenna
  • WPS/Reset Button
  • Supports Remote Management
  • Supports SNMP and TR-069
  • Telnet and SSH
  • Two-level user management
  • System Status and Security Log
  • HTTP/TFTP Firmware Upgrade
  • DC 12V, 0.8A
WAN
INSTALLATION
MEMORY
  • Supports ADSL standard G.992.1 (G.dmt), G.992.2( G.lite ), G.992.3 (ADSL2), G.992.5 (ADSL2+) for Annex A, L
  • CBR, UBR, VBR- rt and VBR- nrt
  • 14-languages EZMax Setup Wizard
  • 4 MB NOR Flash
  • 16 MB SDRAM
SECURITY
FREQUENCY & MODULATION


HUMIDITY & TEMPERATURE

  • NAT/NAPT IP Sharing
  • 64/128-bit WEP Encryption and WPA-PSK, WPA2-PSK security
  • Supports 802.1x
  • DHCP Server/Client and DHCP Relay
  • Anti- DoS Firewall
  • 2400~2484MHz
  • 802.11b: CCK, DQPSK, DBPSK
  • 802.11g: 64QAM, 16QAM, QPSK, BPSK, DSSS
  • 802.11n: 64QAM, 16QAM, QPSK, BPSK
  • 10-90%(Non-condensing)
  • 0 o C ~40 C
FUNCTIONS
DIMENSIONS
CERTIFICATIONS
  • Supports SNTP, QoS
  • Virtual Server and DMZ
  • Supports VLAN, IP Filter and URL Blocking
  • Static/Dynamic Routing & UPnP
  • IGMP Snooping, IGMP data control and IGMP relay
  • VPN Pass Through (IPSec/PPTP)
  • 184 x 118 x 28 mm
  • CE, FCC

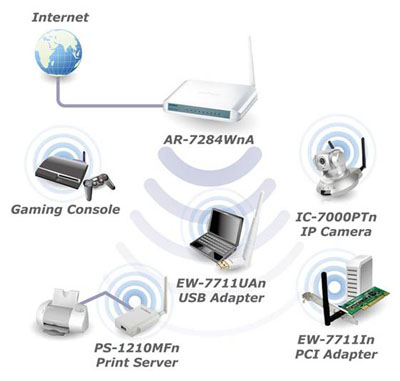

NETWORK SETUP DIAGRAM AND RELATED PRODUCTS

An example of how the AR-7284WnA can be setup:

  • Connect the AR-7284WnA ADSL port to your ISP via phone cable (RJ-11).
  • Connect a computer to the LAN port and setup the Internet connection by running the multi-language setup wizard.
  • Share the Internet connection by connecting a LAN cable to other computers or wireless devices.
  • You can also share your printer using an Edimax print server.
