BIPAC6200NXL
BIPAC6200NXL Billion
Key Features
* Supports 3.5G / HSDPA, 3.75G / HSUPA, HSPA+, EVDO and TD-SCDMA (backward compatible with 3G / 2.75G / 2.5G)
* Dual WAN interfaces for EWAN and 3.5G / 3.75G connections
* 802.11n Wireless AP
* 2 x USB 2.0 ports for multiple functions: 3.5G/3.75G networks, printer server, Webcam server, FTP server, Samba server, FTP client*5 and BT client*5
* Supports Wi-Fi Protected Setup (WPS) and WPA-PSK / WPA2-PSK
* Supports multiple SSIDs for flexibility of network infrastructure
* Expanded wireless coverage of up to 3 times the range of 802.11g products
* Auto fail-over for always-on connection
* Load balancing – Maximizing bandwidth of outbound and inbound
traffic*5
* 3G Management Center for connection monitoring
* Firewall security with DoS prevention and SPI
* Quality of Service control
* Syslog monitoring
* IPTV applications*2 support
* Ideal for SOHO users, Office users, and event organizers
Benefits
Always-On Connection

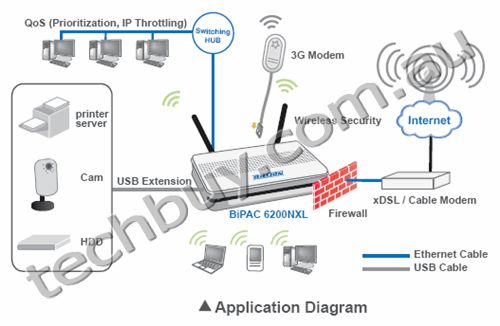

With the Billion’s BiPAC 6200NXL, you can connect a 3G / HSDPA USB modem to its the built-in USB port, enabling you to access to the Internet over a 3.5G / HSDPA, 3.75G / HSUPA, HSPA+, UMTS, EDGE, GPRS, or GSM networks, making downstream rates of up to 14.4 Mbps*1 possible! With a supported Ethernet WAN port, BiPAC 6200NXL can connect with an ADSL / Cable / Fiber modem. The built-in auto fail-over ensures maximum connectivity and minimum interruption by quickly and smoothly connecting to a 3G network in the event that your current wired connection fails. These features are perfect for office situations where constant connection is paramount.
Multiple-function Servers
The BiPAC 6200NXL can serve as a multi-function server with its USB port to help you set up your own network in a short time. You can share the printer in your office, monitor your house with a Webcam, share files with your colleagues or friends, or even download FTP or BT*5 files when you are mobile.
Wireless Mobility and Security
With an integrated 802.11n Wireless Access Point, the router delivers up to 3 times the wireless coverage of a 802.11b / g network device and supports a data rate of up to 300Mbps, so that wireless access is available everywhere in the house or at work. The BiPAC 6200NXL also supports the Wi-Fi Protected Setup (WPS) standard and allows users to establish a secure wireless network by simply pushing a button. If your network requires wider coverage, the built-in Wireless Distribution System (WDS) repeater function allows you to expand your wireless network without the need for any further wires or cables. Multiple SSIDs allow users to access different networks through a single access point. Network managers can assign different policies and functions for each SSID, increasing the flexibility and efficiency of the network infrastructure
3G Management Center
With the BiPAC 6200NXL, monitoring your 3G connection status is a breeze. Billion’s unique 3G Management Center is an utility tool displaying its current 3G-signal status visually for users to maximize their connection. You can monitor the bandwidth with current upload and download speed. This tool also calculates the total amount of hours or data traffic used per month, allowing you to manage your 3G monthly subscriptions.
Features & Specifications
Availability and Resilience
• Dual-WAN ports (3G & Ethernet WAN)
• Load balancing - Maximizing bandwidth of outbound and inbound traffic*5
• Auto fail-over
• Auto fail-back*5
3.5G / 3.75G Broadband Sharing
• Supports 3.5G / HSDPA, 3.75G / HSUPA, HSPA+, EVDO and TD-SCDMA
• True mobile broadband sharing (3.5G / 3.75G)
• Common 3.5G / 3.75G USB modem support
• 3.5G / 3.75G signal strength display
• 3.5G / 3.75G APN and PIN code support
• 3G time state monitor (Current connection time, Monthly total connection time & Monthly total traffic amount)
Network Protocols and Features
• NAT, static routing and RIP-1 / 2
• NAT supports PAT and multimedia applications
• Transparent bridging
• Virtual server and DMZ
• SNTP, DNS relay and DDNS
• IGMP snooping and IGMP proxy
• File sharing with SMB (Samba) / CIFS
Firewall Management
• Built-in NAT Firewall
• Stateful Packet Inspection (SPI)
• Prevents DoS attacks including Land Attack, Ping of Death, etc.
• Remote access control for web base access
• Packet and URL filtering
• Password protection for system management
• VPN pass-through
Quality of Service Control
• Supports the DiffServ approach
• Traffic prioritization based-on IP protocol, port number and address
Wireless LAN
• Compliant with IEEE 802.11n, 802.11g and 802.11b standards
• 2.4GHz - 2.484GHz frequency range
• Up to 300Mbps wireless operation rate
• 64 / 128 bits WEP supported for encryption
• WPS (Wi-Fi Protected Setup) for easy setup
• Wireless Security with WPA-PSK / WPA2-PSK support
• WDS repeater function support
• Multiple SSID
USB Applications Server
• 3.5G / 3.75G network sharing
• Printer server
• Storage: FTP server, Samba server, FTP client*5, BT client*5
• Webcam server
Management
• 3G Management Center
• Quick Installation Wizard
• Web-based for remote and local management
• Firmware upgrades and configuration data upload / download via web-based interface
• Embedded Telnet server for local management
• SNMP v1 / v2 / v3, MIB-I and MIB-II support
• Syslog monitoring
• Supports DHCP server / client / relay
• Mail Alert
• TR-069*4 supports remote management
• Multiple language support
Hardware Specifications
Physical Interface
• USB: 2 x USB 2.0 ports
• WLAN: 2T2R antennas
• Ethernet: 3 x 10 / 100Mbps Auto-MDI / MDI-X RJ-45
Ethernet ports
• WAN: 1 x 10 / 100Mbps Auto-MDI / MDI-X RJ-45
Ethernet port
• Reset button
• WPS push button
• Power jack
• Power switch
Physical Specifications
• Dimensions: 7.28" x 4.86" x 1.38" (185mm x 123.5mm x 35mm)
Power Requirements
• Input: 12V DC, 1.2A
Operating Environment
• Operating temperature: 0 – 40°C
• Storage temperature: -20 – 70°C
• Humidity: 20 – 95% non-condensing
Compatible 3G USB modems*7
Brand Model
Model
Huawei E169, E172, E220, E270, E272
ZTE MF622, MF626, MF636, MF638
NOVATEL MC950D, MC 930D, MC950D
Sierra Aircard 880U, 875U, 885U
*Note:
1. The 3G / HSDPA data rate is dependent on your local service provider and your 3G / HSDPA modem.
2. IPTV applications may require subscribing to IPTV services from a Telco / ISP.
3. Specifications in this datasheet are subject to change without prior notice.
4. By request of the Telco / ISP projects.
5. Future release
6. Updated 3G compatible list is continuously available at
https://www.billion.com/compatible-3G.html
