All stock codes associated to this product
CNPS10XPERFORMA, CNPS10X-PERFORMA
CNPS10X Performa
Dual Fan Support
Pentium 4, Celeron D, Pentium D, Core 2 Duo, Core 2 Quad, Core 2 Extreme, Pentium Dual Core, Core i7, Core i5, Core i3, Sempron, Athlon, Athlon FX, Opteron, Dual-Core Opteron, Phenom, Athlon X2, Phenom II, Athlon II
| Dimensions |
132(L) x 100(W) x 152(H)mm |
| Weight |
748g |
| Materials |
Fins: Aluminum / Base: Copper |
| Dissipation Area |
7,900 |
| Heatpipes |
5 U-shaped heatpipes |
| Fan |
4-Pin 120mm PWM Fan |
| Fan RPM |
900~1,350 10% (RC24P Connected), 900~2,000 10% (RC24P Not Connected) |
| Noise |
17~24dBA 10% (RC24P Connected), 17~36dBA 10% (RC24P Not Connected) |
| Fan Bearing |
Long life bearing |
| Color |
Gray |
| Capacity |
1g |
| Temperature Stability |
-40C ~ +150C (-40 ~ +302) |
Powerful Cooling Performance Optimally designed aluminum fins disperse heat away from the CPU via 5 heatpipes, while switching noise free, high capacity 120mm fan quickly cools the heatsink for stable operation of high performance CPUs.
Switching Noise is the high frequency harmonic noise that can result from voltage regulation

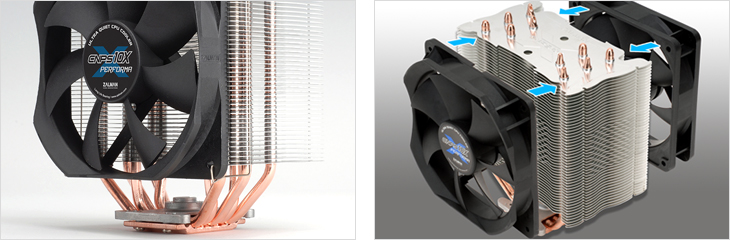

Dual Fan Support The heatsink is designed to mount one or two fans according to the users preferences.
Switching Noise is the high frequency harmonic noise that can result from voltage regulation.

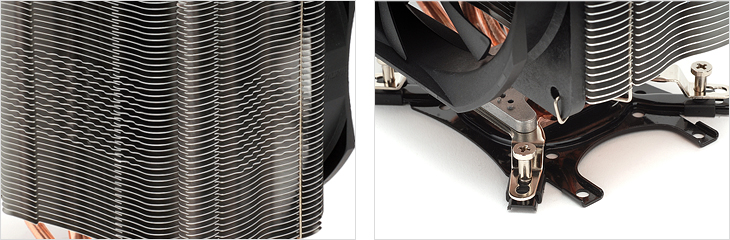

Differentiated Design Differentiated from typical U-shaped heatpipe coolers, a central band of rippled aluminum fins adds a sleek and cool aesthetic finish.

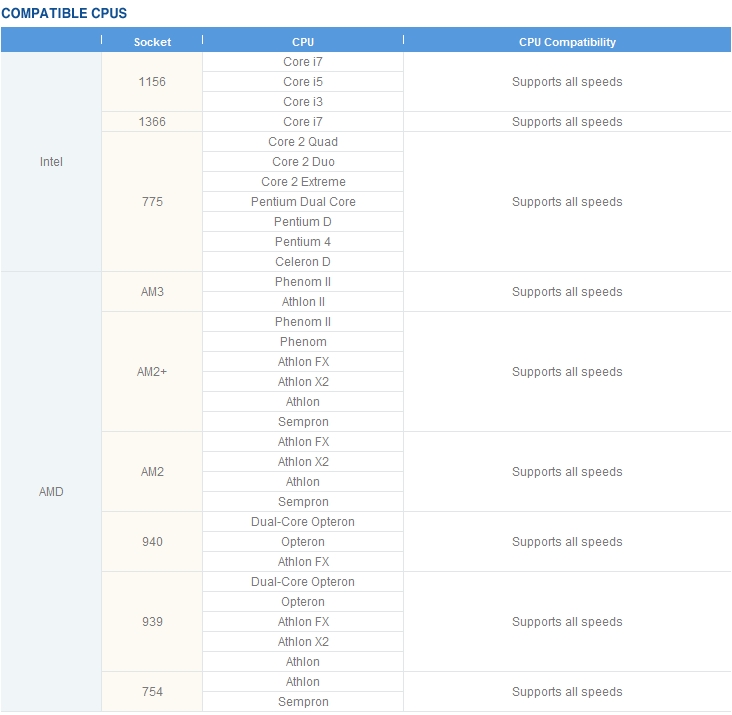

Versatile Compatibility The CNPS10X Performa accommodates a broad range of sockets.
Intel LGA1156 / 1366 / 775
AMD AM3 / AM2+ / AM2 / 754 / 939 / 940

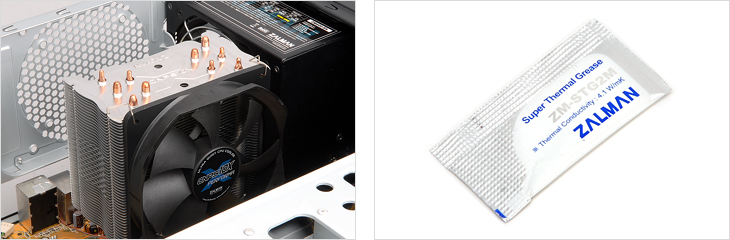

180mm Wide Case Compatibility For optimum case compatibility the heatsinks height is set to 152mm which ensures compatibility with case width of 180mm or greater.
High Performance Super Thermal Grease
ZM-STG2M The high performance super thermal grease ZM-STG2 maximizes heat transfer from the CPU to the base of CNPS10X Performa for intensified cooling performance.

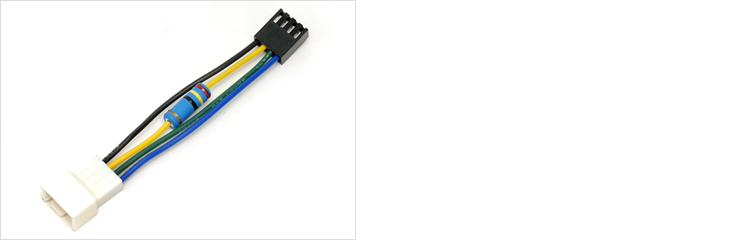

PWM Fan Speed Resistor
When connected to the resistor cable (RC24P), the input voltage of the PWM Fan can be adjusted to control the fan speed and noise level according to user preference.
Quiet Mode (RC24P Connected): 900~1,350RPM / 17~24dBA 10%
Performance Mode (RC24P Not Connected): 900~2,000RPM / 17~36dBA 10%

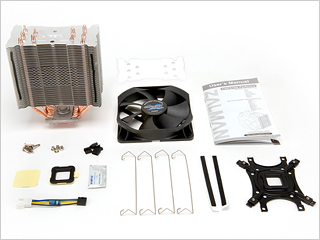

| Common Components |
- CNPS10X Performa
- 120mm Fan
- Backplate
- Resistor[RC24P]
- Side Caps
- Bolts
- Nuts
- Fan Fixing Clips
- Vibration Pads
- Loading Block
- Thermal Grease(ZM-STG2)
- Double-Sided Tape
- Users Manual |

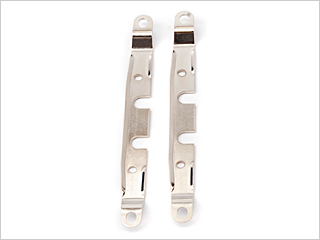

 Component for AMD Socket AM3/AM2+/AM2 |
| - AMD Clip |

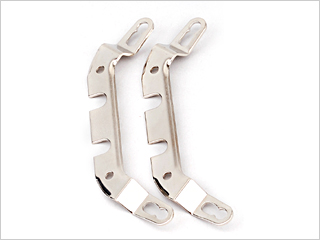

| Component for AMD Socket 754/939/940 |
| - AMD Clip |
