All stock codes associated to this product
ZMVF770, ZM-VF770, ZalmanZMVF770, Zalman ZM-VF770
VF770
The 80mm fan cools not only the heatsink and VGA RAM, but all other peripheral components surrounding the VGA chipset.
Ultra Quiet Design The patented VFHS(Variable Flower Heatsink) technology is incorporated for enhanced air flow structure and the optimized heatsink provides high performance cooling in Quiet Mode.

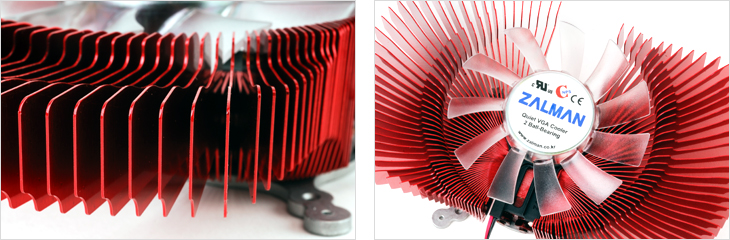

Powerful Cooling Performance
The 0.4mm pure aluminum fins with maximized dissipation area and the fan embedded inside the heatsink optimize cooling performance.

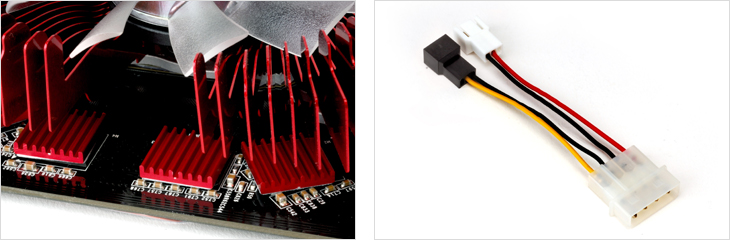

Excellent Peripheral Component Cooling
The 80mm fan cools not only the heatsink and VGA RAM, but all other peripheral components surrounding the VGA chipset.
Fan Speed Control
The included Fan Speed Control Connector enables users to select fan speed for their needs.

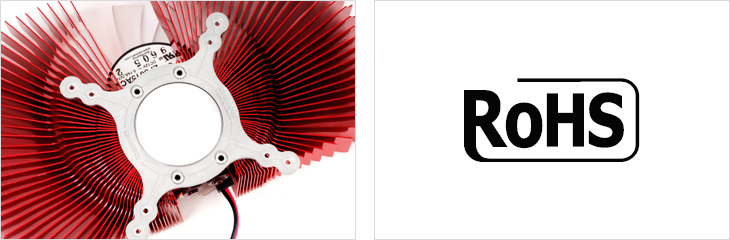

Excellent Compatibility
The coolers optimized installation structure allows easy installation and excellent VGA card compatibility.
Environment Friendly Design
Only environment friendly materials are utilized for compliance with the RoHS (Restriction of Hazardous Substances) standard of the European Union.
| Dimensions: |
150(L) x 85(W) x 31(H)mm |
| Weight: |
160g |
| Base Material: |
Pure Aluminum |
| Dimensions: |
80(L) x 80(W) x 15(H) mm |
| Bearing Type: |
2 Ball-Bearing |
| Speed: |
Silent Mode |
1,350rpm 10 % |
Normal Mode |
2,650rpm 10 % |
| Noise Level: |
Silent Mode |
18.5dBA 10 % |
Normal Mode |
28.5dBA 10 % |
Nipple Installation Holes
VGA Card
ATI Radeon HD5670
ATI Radeon HD4650 Series
ATI Radeon HD4670 Series
ATI Radeon HD3650 Series
ATI Radeon HD2600 Series
ATI Radeon X1600 Series
ATI Radeon X1650 Series
NVIDIA GeForce GT240
NVIDIA GeForce 7600 Series
NVIDIA GeForce 6600 Series (except 6600 AGP Series)
ATI Radeon HD4850 Series
ATI Radeon HD4830 Series
ATI Radeon HD3870 Series
ATI Radeon HD3850 Series
ATI Radeon HD2600XT(DDR4) Series
ATI Radeon X1800XL Series
NVIDIA GeForce GT240
NVIDIA GeForce 9600GT Series
NVIDIA GeForce 9600GSO Series
NVIDIA GeForce 9500GT Series
NVIDIA GeForce 9400GT Series
NVIDIA GeForce 8600GTS Series
NVIDIA GeForce 8600GT Series
NVIDIA GeForce 7950GT Series (except 7950GX2)
NVIDIA GeForce 7900 Series
NVIDIA GeForce 7800 Series
NVIDIA GeForce 6600 Series (except 7800GS)
- VGA Cooler
- VGA RAM Heatsinks
- Thermal Grease
- Dual Connector
- PET Washers
- Rubber Washers
- Fixing Bolts
- Springs
- Users Manual
