HC3900U | Mitsubishi 13MIT-HC3900 DLP Portable Projector - 3000 Lumens

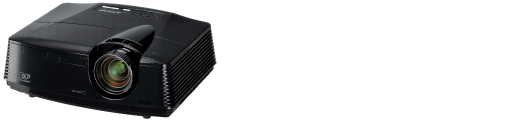

The Mitsubishi Electric HC3900 projector delivers Full HD resolution with big-screen impact even in well lit areas.

The HC3900 1080P projector comes equipped with all the great features you've come to expect from a Mitsubishi Home Theatre projector: Amazing 3000 ANSI Lumens Brightness

Even in a well-lit room, the highbrightness of the HC3900 ensures thathigh definition images areclear and easy to view.



1000 ANSI Lumens 3000 ANSI Lumens

Latest generation 0.65"DLP^TM chip



Latest DLPTM chip with new DMD









One of the key features of the HC3900 home theatre projector isits state-of-the-artDLP chip, which incorporates a new digital micromirror device(DMD) comprised of denselyembedded micromirrors. A smaller mirror cavity diameter and narrowergaps between mirrors improves the aperture ratioof the chip for a smoother image. Reflective light diffusion is also greatly reduced, which translates to a higher contrast ratio for better overall blacks, whites and colour reproduction.







1.5x Short Throw HD ZoomLens

Short Throw HD Zoom Lens

The newly designed short throw zoom lens in the HC3900 provides excellent focusing performance with1.5x magnification of high definition images. the 4-cluster, 13-piece all glass lens ensures images retain their sharpness right to the edges of the screen.



FiveSegment Colour Wheel and Built-in Colour Management

The HC3900's five segment colour wheel ensures vivid and accurate image reproduction, while the built-in colour management function allows users to adjustindividual colours to suit their tastes.





DDP3021 Full 10-bitPanel Driver



The built-in DDP3021 10-bit panel driver delivers approximately four times the gradation of 8-bit models, providing smoother dark tones.





Equipped with 5000-hour* long-life lamp



Long-life lamp

The optimum design for temperature control of the new colour light source lamp, as well as Mitsubishi Electric's unique lighting timing, have extended the useful life of the lamp to a maximum of 5000 hours.

BrilliantColor^TM Technology



Blu-ray 24P direct output compatible



Adjustable Overscan



Screen Trigger



Vertical Keystone Correction



^{*Maximum of 5000 hours at low mode and 3000 hours at standard mode. Lamp life is defined as the average time until brightness is reduced by half; it is not a guaranteed life for all lamps. Lamp life will vary considerably depending on the usage environment and conditions, and whether regular maintenance such as cleaning is performed.}

Specification Overview

Model	HC3900
Display technology	0.65" 1-Chip DMD, 12deg.LVDS, DDP3021
Resolution	1920 x 1080 (Total 2,073,600 pixels)
Brightness (Maximum)	3000 ANSIlumens
Contrast	2000 : 1 (on/off)
Picture Size	50" ~ 300" (Wide)
Source lamp*	230W (Shut Off Time 3000Hrs) with Low Mode (190W : Shut Off Time 5000Hrs)
Computer compatibility	Resolution ; 640 x480(Expand) - 1920 x 1080(Real) - 1600 x 1200 (Compressed); Sync on Green available
Video compatibility	NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60 480i/p(525i/p), 576i/p(625i/p), 720p(750p 50/60Hz), 1080i(1125i 50/60Hz), (1080i(1250i 50Hz) is not available), 1080P(50Hz,60Hz,24Hz)
PC input terminals	Mini D-Sub 15pin x 1
Video input terminals	HDMI x 1, RCA x 1, S-VIDEO x 1, RCA Component(Y,PB,PR) x 1
Communication terminals	RS232C; Mini DIN 8pin x 1
Fan noise	25 dB(A) (Lamp low mode)
Dimensions (W x H x D)	345(W) x 129(H) x 270(D)mm
Weight	3.5kg
Power supply	AC 100 - 240 V, 50/60Hz
Optional lamp	VLT-XD600LP
Included accessories	RGB PC Cable (15 pin D-sub) x 1; Power Cord x 1; Remote Control (with Batteries); Lens Cap; Lamp replacement attachment;User Manual Paper; User Manual CD; Safety Manual
