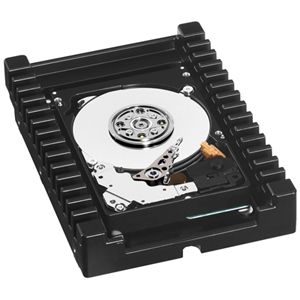

Western Digital 600GB 10,000rpm SATA-III 6Gbps HDD w. 32MB Cache (WD6000HLHX) VelociRaptor

IMG 1 of 5
No Longer Available
Part Number:
140210
(?) Brand:
Western Digital Web Site
Manuf No:
WD6000HLHX
Shipping Weight:
0.8 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
WD6000HLHX
WD VelociRaptor
Enterprise Hard Drives
600 GB, SATA 6 Gb/s, 32 MB Cache, 10,000 RPM

Bigger. Faster. Hungrier.

The PC enthusiasts' favorite 10,000 RPM hard drive is still the fastest, most dangerous carnivore around - now with an ultra-fast 32 MB cache and SATA 6 Gb/s interface and twice the capacity of previous generations.


Fastest SATA hard drive
on the planet.

 10,000 RPM, 32 MB cache and a SATA 6 Gb/s interface gives gamers the speed advantage they crave.



Monstrous capacity.

 Twice the capacity of previous generations makes this the largest capacity 10,000 RPM SATA drive ever.


Rock-solid reliability.
Best-in-class 1.4 million hour MTBF and 5-year limited warranty, makes these the most reliable SATA hard drives around.

WD VelociRaptor hard drives deliver maximum speed and reliability for performance enthusiast systems, workstations, and low-end servers. With a superbly engineered combination of 10,000 RPM spin speed, SATA 6 Gb/s interface and a 32 MB cache, these drives are truly an evolution in performance.

Product Features
Killer speed - SATA 6 Gb/s interface and 32 MB cache enhance the next generation 10,000 RPM WD VelociRaptor making it up to 15% faster than the award-winning previous generation.
Monstrous capacity - WD VelociRaptor SATA drives are available in capacities up to 600 GB, double the capacity of the previous generation.
Rock-solid reliability - Designed and manufactured to mission-critical enterprise-class standards to provide enterprise reliability in high duty cycle environments. With 1.4 million hours MTBF, these drives have the highest available reliability rating on a high capacity SATA drive.
Ultra-cool operation - Consumes less idle power and uses similar active power as the previous generation WD VelociRaptor, while offering double the capacity and higher performance.
IcePack mounting frame - The 2.5-inch WD VelociRaptor is enclosed in a backplane-ready 3.5-inch enterprise-class mounting frame with a built-in heat sink that keeps this powerful little drive extra cool when installed in high-performance desktop chassis.
Rotary Acceleration Feed Forward (RAFF) - Optimizes operation and performance when the drives are used in vibration-prone, multi-drive chassis.
NoTouch ramp load technology - The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
Environmentally conscious - In addition to being ROHS compliant, this generation of WD VelociRaptor is also a halogen-free design.
Ideal For

Performance enthusiast systems, workstations, and low-end servers.

Compatibility

Windows 7/Vista/XP/2000, Windows servers, Linux, and Mac OS.

Specifications
Performance Specifications
Rotational Speed 10,000 RPM (nominal)
Buffer Size 32 MB
Average Latency 3.00 ms (nominal)
Load/unload Cycles 600,000 minimum
Seek Times
Read Seek Time 3.6 ms (average)
Write Seek Time 4.2 ms (average)
Track-To-Track Seek Time 0.4 ms (average)
Transfer Rates
Buffer To Host (Serial ATA) 6 Gb/s (Max)
Physical Specifications
Formatted Capacity 600,127 MB
Capacity 600 GB
Interface SATA 6 Gb/s
User Sectors Per Drive 1,172,123,568
Physical Dimensions
English
Height 1.028 Inches
Length 5.787 Inches
Width 4.00 Inches
Weight 1.08 Pounds
Metric
Height 26.1 mm
Length 147 mm
Width 101.6 mm
Weight 489 g
Environmental Specifications
Shock
Operating Shock (Read) 65G, 2 ms
Non-operating Shock 300G, 2 ms
Acoustics
Idle Mode 30 dBA (average)
Seek Mode 0 37 dBA (average)
Temperature (English)
Operating 41 F to 131 F
Non-operating -40 F to 158 F
Temperature (Metric)
Operating 5 C to 55 C
Non-operating -40 C to 70 C
Humidity
Operating 5-95% RH non-condensing
Non-operating 5-95% RH non-condensing
Altitude (English)
Operating -1,000 feet to 10,000 feet
Non-operating -1,000 feet to 40,000 feet
Altitude (Metric)
Operating -305M to 3,050M
Non-operating -305M to 12,200M
Vibration
Operating
Linear 20-300 Hz, 0.75G (0 to peak)
Random 10-300 Hz, 0.008 g / Hz
Non-operating
Low Frequency 0.05 g/Hz (10 to 300 Hz)
High Frequency 20-500 Hz, 4.0G (0 to peak)
Electrical Specifications
Current Requirements
12 VDC
Read/Write 320 mA
Idle 210 mA
Standby 5 mA
Sleep 5 mA
5 VDC
Read/Write 470 mA
Idle 360 mA
Standby 130 mA
Sleep 120 mA
Power Dissipation
Read/Write 6.20 Watts
Idle 4.30 Watts
Standby 0.70 Watts
Sleep 0.70 Watts

Specification Sheets / Installation guides / Associated files
