AM5067
AM506756K USB Modem
- USB bus powered no external power supply needed
- V.92 and V.90 technology. 56Kbps receiving and 48Kbps transmitting data rates
- Fax Class 1 modem supported with receiving and transmitting data rates up to 14.4 Kbps
- Telephone Answering Machine (TAM) functional via audio sound device
- Connects to computer through USB port
- Compact design

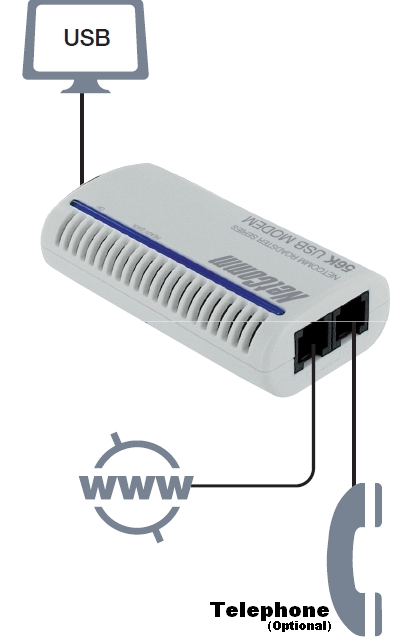

Plug & Play and youre away. The AM5067 delivers full V.92* 56K speed which gives you a reliable connection to the Internet. Designed for home, small offices and remote deployments, the compact and lightweight AM5067 can plug into any telephone port to provide you with instant access to the Internet via a dial-up connection.
To complete your small business office, the AM5067 can send and receive faxes directly from your PC with the minimum of fuss and is also equipped with TAM (Telephone Answering Machine) support
* Your Internet Service Provider must support the V.92 standard. If a V.92 connection is not available, this modem automatically reverts to the 56K V.90 mode.
KEY FEATURES
USB bus powered – no external power supply needed
V.92 and V.90 technology. 56Kbps receiving and 48Kbps transmitting data rates
Fax Class 1 modem supported with receiving and transmitting data rates up to 14.4 Kbps
Telephone Answering Machine (TAM) functional via audio sound device
Connects to computer through USB port
Compact design
NetComm Roadster Series
56K USB Modem
56Kbps V.92/V.90 Modem With USB Connection
Plug & Play and you’re away. The AM5067 delivers full V.92* 56K speed which gives you a reliable
connection to the Internet. Designed for home, small offices and remote deployments, the compact
and lightweight AM5067 can plug into any telephone port to provide you with instant access to the
Internet via a dial-up connection.
To complete your small business office, the AM5067 can send and receive faxes directly
from your PC with the minimum of fuss and is also equipped with TAM (Telephone Answering
Machine) support
* Your Internet Service Provider must support the V.92 standard. If a V.92 connection is not available, this modem automatically
reverts to the 56K V.90 mode.
TECHNICAL SPECIFICATIONS
GENERAL DESCRIPTION
• AGERE Olympia SV92U2 / 1040 chipset solution
• USB bus powered / system powered
• USB ver.2.0 supported as an option under Windows
XP / Windows 2000 and Windows 2003 server.
• Windows 2000 / ME / XP / Vista and Windows Server
2003 operation supported
• Pentium Host-based Controller / CPU required
• V.92 and V.90 technology present Receiving Data
Rate up to 56Kbps, from a digitally connected central
site modem.
• Modem on Hook (MoH), Fast connection, PCM
upstream 48Kbps supported.
• Fax Class 1 modem supported, up to 14.4Kbps Data
transmission / Receiving rate.
• Telephone Answering Machine (TAM) Functional via
Audio Sound device
• V.42 LAPM and MNP error correction.
• V.44, V.42, V.42bis and MNP 5 data Compression
• AT command set compatible
DATA MODEM
• V.92, V.90, V.34bis, V.34, V.32bis, V.32, V.22bis, V.22
A/B, V.23, V.21, Bell 212A, and Bell 103.
• 56Kbps speed over the telephone network with V.92
and V.90 compatibillity.
FAX MODEM
• ITU-T V.17, V.29, V.27ter and 21 channel 2.
• TIA / EIA 578 Class 1 FAX send and receive speeds
of 14400, 12000, 9600, 7200, 4800 or 2400bps.
VOICE/AUDIO MODE
• TAM through the microphone / speaker interface on
Audio Sound card
ERROR CORRECTION
• Support V.42 LAMP, MNP 2-4
DATA COMPRESSION
• Support V.44, V.42bis and MNP 5
DAA Line interface Capabilities
• DTMF Tone Dial / accurate make-break ratio
Pulse Dial
• Proprietary transformer-based isolation barrier
• Programmable for Caller-ID reception and Power
Ring detection
• Programmable AC / DC impedance termination for
Return-Loss / Specific Countries homologations
FLOW CONTROL
• Both transmit and receive fax data are buffered Data
transmission over DTE is Flow controlled by XON /
XOFF and RTS / CTS.
System Requirements
• PC with 1GHz Processor with 256Mbytes system
memory or better.
• USB port
• Windows 98se, ME, 2000, XP, Vista, 7
• 50Mbytes of free disk space for driver installation
• CD-ROM Drive
PACKAGE CONTENTS
• NetComm AM5067 56K USB modem
• Telephone cable
• USB cable
• Installation documentation
• NetComm CD-Rom
