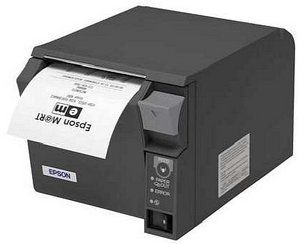

In retail and hospitality, space is always at a premium. Thats why Epson has developed the smallest thermal receipt printer to have all its controls facing the front. Quiet, compact and space-saving, the TMT70 is specifically designed for undercounter operations offering total easeofuse for ultrafast transactions.
Key features
- Frontfacing controls offering total convenience
- Spacesaving design ideal for undercounter operations
- Highresolution graphics, text and barcodes for maximum impact
- Easeofuse features include dropin paper load and auto cutter
- 170mm per second print speed for both graphics and text
- Flexible interface options offer complete versatility
Designed for easeof use and convenience
Built with the same highquality and reliability as our worldrenowned TMT88 printer series, the TMT70s unique design, functionality and speed makes it the ideal solution for many applications, from highvolume sales environments such as convenience stores to the most demanding fast food outlet, restaurant or bar. To enable you to offer an even faster,most efficient service, weve equipped the TMT70 with a range of convenient, user-friendly features. Designed to be operated with the minimum of effort, the TMT70s functionality includes front paper feeding with dropin paper rolls, front-facing operator controls, an autocutter and optional annunciating buzzer. Weve also made maintaining the TMT70 so simple, with easy access operator covers, Auto Status Back (ASB) messages and a remote maintenance counter for monitoring printer functions.
Reinforce your image, build your brand
Whether you need to print text, graphics or barcodes, or a combination of all three the TMT70 delivers advanced results. Unlike many other printers, it boasts the same quiet, high, 170 millimetres per second print speed for both text and graphics. With a 180dpi print head, the TMT70 delivers sophisticated, intelligent receipts for maximum customer impact in an instant. Use the TMT70 to reinforce your brand and build allimportant customer loyalty you can print logos and graphics that reinforce your marketing message or scannable horizontal or vertical barcodes for special offers and promotions.
Integration and installation made easy
The TMT70 offers increased connectivity for seamless integration with your existing retail systems. Interface options are available for highspeed USB, serial, parallel, powered USB, Ethernet and wireless. It benefits from new drivers including OPoS ADK, Java and Windows advanced printer driver.
Robust and resilient
Environmentally hardened, theTMT70 can withstand even the most demanding point of service. An optional external rear splash cover provides increased resilience, ideal for the hospitality sector. Whats more, the cover also incorporates an enhanced cable management system which helps to prevent accidental disconnection whilst in use. With a MCBF (Mean Characters Between Failure) of 52 million lines, a MTBF (Mean Time Between Failure) of 360,000 hours and an auto-cutter life of 1.5 million cuts, the TM-T70 has all the reliability needed for high-volume environments.
Developer Support
As with most of Epson's range of POS products, we provide a comprehensive suite of drivers and utilities, to reduce the costs of development and integration. Please contact us for more information on your application requirements.
Specifications
| Print method |
Thermal line printing |
| Print resolution |
180 x 180 dpi |
| Print fonts (True Type) |
Font A 12(W) x 24(H) mm |
| |
Font B 9(W) x 17(H) mm |
| Column capacity |
42/56 |
| Character size |
1.1(W)*2.1(H)/1.5(W)x3(H)mm |
| Character set |
95 Alphanumeric |
| |
48 International |
| |
128x11Graphic |
| Print width |
72mm |
| Barcodes |
9 one-dimensional, 3 two-dimensional |
| Print Speed |
170mm/sec |
| Data Buffer |
4K or 45 Bytes selectable |
| NV RAM |
256KB |
| Interface |
RS-232, RS-485, Parallel, USB, Powered USB, |
| |
Ethernet 10 Base 100 Base TX, IEEE 802.11b |
| Paper specification |
|
| Dimmensions |
79.5 0.5mm x 93mm |
| Paper Thickness |
Thermal roll paper: 0.06 to 0.07mm |
| Paper roll |
Drop in |
| Auto cutter |
Partial cut |
| Sensors |
Paper end and Paper near end |
| Current comsumption |
1.8A (mean) |
| Power |
24 Volts DC |
| Power supply |
External PS-180 |
| D.K.D. Function |
2 drivers in 1 port |
| Reliability |
|
| MTBF |
360,000 hours |
| MCBF |
52 million lines |
| Autocutter |
1.5 million cuts |
| Operating temperature |
5 to 45 C |
| Overall dimensions |
125mm x 194mm x 114mm (w x d x h) |
| Mass Approx. |
1.8kg |
| Printer options |
|
| Colour |
Epson Cool White, Epson Dark Grey |
| EMC standard |
FCC class A,
CE marking, AS / NZS CISPR22 class B |
| |
|
| Safety standard |
UL / CSA / EN |
| Drivers Available |
APD (Advanced Printer Driver), OPOS and Java POS |
| |
|
Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability.
