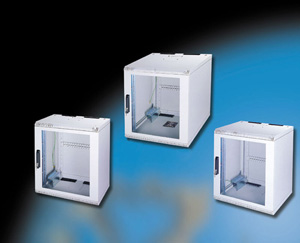

PCI Case CLM-23010-612B - 12U Under-Desk Rack 600(W) X 600(D) W/l, Shaped Mounting Angle, w.Glass

IMG 1 of 1
No Longer Available
Part Number:
143973
(?) Brand:
PCI Case
Manuf No:
CLM-23010-612B
CLM23010612B
Shipping Weight:
35 KG (Includes product packaging)
Estimate Shipping
Date Added:
31/5/2010
Details Files Finance Images & Video
All stock codes associated to this product
CLM23010612B, CLM-23010-612B

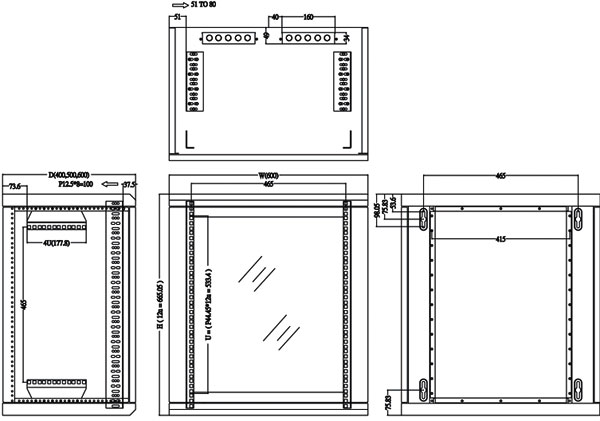

12U Under-Desk Rack 600(W) X 600(D) w/l, Shaped Mounting Angle, w/GLASS


Standard Mechanism (Included):
Material: Sheet Steel by strengthened stamping skills
Front Door: 1 pc CLM-882163-00 Sheet Steel frame with 3.0mm thickness strengthened glass with swing handle security Key-Lock, Removable.
Rear door: 1 pc CLM-882082-00, fixed 2 pcs CLM-612402 strips Removable
Side panels: 2 pcs CLM-882073-00 swing Desigh, with 2 pcs CLM-312002 Earth straps, Removable
Roof & Bottom (plinth): Vented 2 pcs CLM-612401-xx mounted 4 pcs CLM-612409 corner supporters, with 2 cable entries with brush strips & 1 Fan cutout, Removable
Support Angle: 2 pcs CLM-882134 in "U" Shaped Steel pipes
Mounting Angle: 2 pcs CLM-882083-00 L-Shaped, Zinc-plated.
Guide Frame: 4 pcs CLM-882079-00 for mounting 19" components on left or right side through 4 pcsCLM-612079 transfer Bases.
Finished : Powder coating in color RAL7035 or RAL9011

Model
Color
W (mm)
D (mm)
H (U)
CLM-23010-612B
Black
600
600
12U


No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.
