EVGA X58 FTW3
132-GT-E768-KR

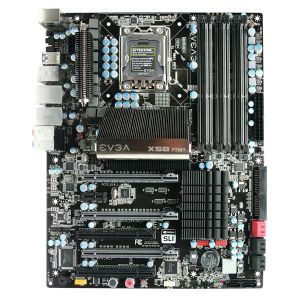

The EVGA X58 FTW3 Motherboard brings all the performance from the award-winning EVGA X58
lineup and now includes USB 3.0 and SATA III 6Gb/s!
The EVGA enthusiast board layout makes sure 2-way and 3-way SLI® configurations are compatible
with all chassis, and award winning overclocking features make this board the perfect choice for any
performance enthusiast. With all these features and much more, it's no wonder why EVGA products
are for those who demand no less than the ultimate in performance!
Key Features
NVIDIA SLI Technology
Dramatically scales performance by allowing two graphics cards to be run in parallel. Only available on select PCI-Express models.
USB 2.0 Support
A standard plug and play interface providing easy-to-use connectivity for USB devices.
PCI Express 2.0 / 1.1 Support
Allows 500MB a lane or up to 8 GB/s at 16x speeds - allows for full support for new PCI-E 2.0 graphics cards.
Serial ATA II
Also known as SATA2, features a 3.0 Gbit/s transfer speed, faster than Standard Serial ATA.
Solid Capacitors
Offers a longer lifespan, better stability when at high frequencies, can operate at higher temperatures, and no longer runs the risk of exploding.
Passive Heatsink
Consist of a metal heatsink.
8 - Phase Power Design
For excellent power-stability, an 8 - Phase Power Design is used.
On-Board Clear CMOS Button
An onboard clear CMOS button which allows you to easily clear your BIOS without moving a jumper.
On-Board Power Button with Integrated Power Light
An onboard power button for easily powering on or off your system. Also shows a power indication light.
On-Board Reset Button with Integrated HDD Activity Light
An onboard reset button for easily rebooting your system as well as gives current status of your HDD via an activity light.
On-Board Diagnostics LED Readout
Helpful for when diagnosing a problem is needed.
2-Way SLI Support
Feel free to turn up the eye candy and experience the performance of 2 Graphics Cards running together.
3-Way SLI Support
Experience the amazing performance that only 3 Graphics Cards can deliver, a visual experience that will take you to the next level.
Windows XP Support
Windows Vista / Windows 7 Support
DDR3 Support
Full support for the latest in DDR technologies.
Triple-Channel Support
Supports Triple-Channel memory configurations for extreme amounts of system memory bandwidth.
Dual-Channel Support
Supports Dual-Channel memory configurations for increased amounts of system memory bandwidth.
Intel X58/ICH10R Chipset
This chipset supports Triple-Channel DDR3 system memory configurations as well as Intel Core i7 (Socket 1366) support and NVIDIA 2-Way and 3-Way SLI support.
SATA 6G Support
USB 3.0
Specifications
Performance
Based on Intel X58/ICH10R chipset
Supports Intel Core i7 Processors
Memory
6 x 240-pin DIMM sockets
Triple Channel DDR3
Maximum of 24GB of DDR3 1600MHz+
Expansion Slot
1 x PCIe x16, 1 x PCIe x8/x16, 1 x PCIe x8, 1 x PCIe x1, 2 x PCI
2 x 32-bit PCI, support for PCI 2.1
Storage I/O
1 x UltraDMA133
8 x Serial ATA 300MB/sec / 600MB/sec with support for RAID 0, RAID1, RAID 0+1, RAID5, JBOD,
Integrated Peripherals
8 Channel High Definition
2 x 10/100/1000
Multi I/O
1 x PS2 Keyboard
12 x USB2.0 ports (4 external + 8 internal headers)
Audio connector (Line-in, Line-out, MIC)
FireWire 1394A (1 external, 1 header)
Form Factor
ATX Form Factor
Length: 12.0in - 304.8mm
Width: 9.6in - 243.6mm
