Swann SW344-WD2 Motion Detection Security Kit - w. Wireless Camera - 2 Channels, 2GB SD Card, 400 TV Lines, Goodnight Vision

IMG 1 of 1
No Longer Available
Part Number:
145006
(?) Brand:
Swann
Manuf No:
SW344-WD2-AU000
SW344WD2AU000
Shipping Weight:
5 KG (Includes product packaging)
Estimate Shipping
Date Added:
11/6/2010
Details Files Images & Video
All stock codes associated to this product
SW344WD2AU000, SW344-WD2-AU000, 1085792, 9325481011767
 RedAlert2 & PPW-245 Wireless Camera

SW344-WD2

Portable & discreet surveillance / Wireless Camera included / Record onto 2GB included SD Card / Motion triggers recording as still JPEG photos or 5 or 10 second AVI video clips


Product Info

  • Easy viewing
    Includes a wireless camera & you can add a wired camera to view 2 channels at a time in picture-in-picture mode. When moiton is detected on a camera, the RedAlert 2 automatically switches camera views & begins

  • Do it yourself

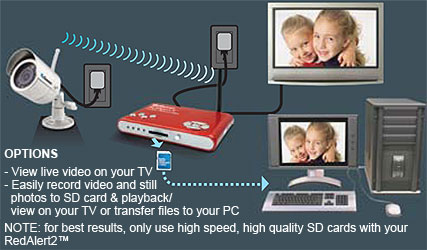

    Connect to power then view / playback on your TV. you can also play recorded footage on your PC via SD card

  • Higher resolution
    Now with 720 x 480 (NTSC) / 720 x 576 (PAL) D1 image quality you can see greater detail in live & recorded modes

  • Motion detection
    Motion triggers still JPEG photos or AVI video clips (5 or 10 seconds in length)

  • Longer recording
    Includes a 2GB SD card to record 225 video clips or 3,500 still photos. Upgrade to 16GB for greater storage capacity

  • Affordable Surveillance
    With its tiny footprint & camera included, this unit is a powerful home or business surveillance tool
    • Specifications
    RedAlert2

    		 Video
    Video Format
    		 NTSC or PAL
    Video Inputs
    		 1 Composite Input
    Video Outputs
    		 1 Composite Output
    Display Resolution
    		 NTSC: 720 x 480
    PAL: 720 x 576
    Display Frame Rate
    		 NTSC: 30fps
    PAL: 25fps

    		 Audio
    Audio Input
    		 1
    Audio Output
    		 1

    		 Recording
    Compression Format
    		 Video: MPEG
    Photo: JPEG
    Recording Resolution
    		 NTSC: 720 x 480
    PAL: 720 x 576
    Recording Frame Rate
    		 NTSC: Up to 30fps
    PAL: Up to 25fps
    Recording Modes
    		 Manual / Motion
    Multiplex Operation
    		 Simplex
    HDD Interface / Memory Type
    		 SD Card
    Hard Drive Support
    		 Up to 16GB SD

    		 General
    Operating Power
    		 DC 9V
    Dimensions
    		 5.25 x 3.33 x 0.75
    133mm x 85mm x 20mm
    Weight
    		 148g
    Backup Method
    		 SD Card
    Wireless Camera

    Video
    Image Sensor
    		 1/3" CMOS
    Video Quality
    		 400 TV Lines
    Number of Effective Pixels
    		 NTSC: 510 x 492
    PAL: 628 x 582
    Minimum Illumination
    		 0 Lux (IR on)
    Day/Night Mode
    		 Color during day / switches to B&W at night
    White Balance
    		 Automatic
    Signal / Noise Ratio
    		 > 48dB
    Electronic Shutter
    		 1/60 - 1/15,000 NTSC
    1/50 - 1/15,000 PAL
    Gain Control
    		 Automatic
    Backlight Compensation
    		 Yes
    Wide Dynamic Range
    		No
    Lens
    		 6mm
    Viewing Angle
    		 53

    Audio
    Microphone
    		 Yes
    Audio Range
    		 9ft / 3m

    Night Vision
    Night Vision Distance
    		 Up to 26ft / 8m
    IR Cut Filter
    		 No
    Number of Infra-Red LEDs
    		 11
    Infra-Red Wavelength
    		 850nm
    Infra-Red LED Life
    		 10,000 hours

    General
    Operating Power
    		 DC 12V
    Operating Temperature
    		 -14F ~ 122F / -10C ~ +50C
    Body Construction
    		 Aluminum
    Dimensions - Camera & Stand
    		 5.1" x 2.0" x 2.0"
    130mm x 50mm x 50mm
    Weight Camera & Stand
    		 8.6oz / 245g
    Dimensions - Receiver
    		 1.0" x 3.1" x 4.3"
    25mm x 80mm x 110mm

    Wireless
    Digital or Analog
    		 Analog
    Max. Transmission Range
    		 Up to 165ft / 50m
    Typical Range
    		 65ft / 20m
    Frequency
    		 2.4 GHz

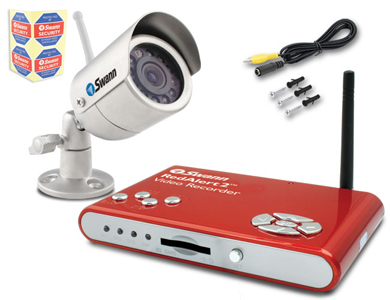

    Contents

    - RedAlert2 Video Recorder
    - Antenna
    - PPW-245 Wireless Camera
    - SD Card 2GB
    - RCA Video Cable 3ft/1m
    - Power Adapters
    - Mounting Screws & Plugs
    - Operating Instructions
    - Theft Deterrent Stickers x 4
    *Note: Product contents may change without notice.



















    No additional files, specification sheets, guides or documentation found for product.

    Warranty: 1 Year Return to Base
