CLP0534
CLP0534
Ultra low height designed for slim type case
80mm PWM fans with low noise
Dual Heatpipes Design
Easy installation
Specifications
Compatibility Intel Core i5 (Socket LGA1156)
Intel Core i3 (Socket LGA1156)
Intel Core 2 Extreme (Socket LGA775)
Intel Core 2 Quad (Socket LGA775)
Intel Core 2 Duo (Socket LGA775)
Intel Pentium D(Socket LGA775)
Intel Pentium 4 (Socket LGA775)
Intel Pentium (Socket LGA775)
Intel Celeron D (Socket LGA775)
Intel Celeron (Socket LGA775)
* Supports All CPUs up to 75W TDP

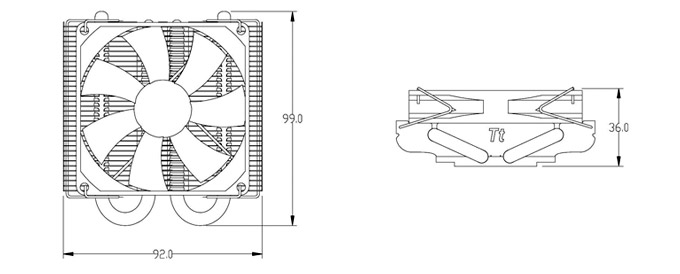

Heatsink Dimension - 92(L) x 99(W) x 36(H) mm
Heatsink Material - Aluminum Fins & Base Heatpipe
Heatpipe - (x2)
Fan Dimension - 92 x15 mm
Fan Speed - 1,200 ~ 2,400 RPM
Bearing Type ----
Noise Level - 20~26.9 dBA
Max. Air Flow - 10.814 ~ 22.35CFM
Max. Air Pressure - 0.458 ~ 1.93mmH2O
LED Fan ----
Power Connector - 4 Pin (PWM)
Rated Voltage - 12 V
Started Voltage ----
Rated Current ----
Power Input ----
MTBF - 30,000 Hrs
Weight - 180 g
