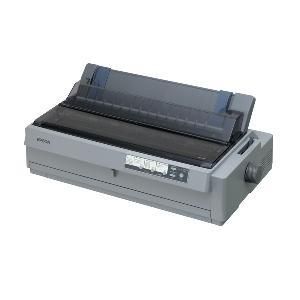

Epson LQ-2190 24-Pin Dot Matrix Printer - Wide Carriage
  • High Speed Draft 10 CPI(480CPS), Push Tractor/Pull Tractor, Bi-Directional Parallel, ESC/P2/IBM PPDS Emulation, Logic Seeking, USB2.0

IMG 1 of 1
No Longer Available
Part Number:
147267
(?) Brand:
Epson Web Site
Manuf No:
LQ-2190
LQ2190
Shipping Weight:
15 KG (Includes product packaging)
Estimate Shipping
Date Added:
9/7/2010
Details Files Finance Images & Video
All stock codes associated to this product
LQ2190, LQ-2190, 10343605480

Epson LQ-2190

24-Pin Dot Matrix Printers

High speed, wide carriage 24-pin printer

Overview

When you need to deal with high volume data processing this 24-pin 136 column printer does the job quickly and efficiently.

The Epson LQ-2190 is a 24-pin wide-format printer and like its predecessor the LQ-2180 it is a fast, flexible, cost-effective and highly reliable printing solution which combines large print volumes with high letter quality ideal for applications such as invoices, delivery notes, inventory listings or even labels.

Key Features

  • Robust and durable 24-pin wide format impact printer
  • Very high print speed up to 480 cps (10 cpi)
  • Equipped with Print Speed Enhancer for even faster printing
  • Highly reliable with an MTBF of 20,000 power-on hours
  • Reliable print head life of 400 million strokes/wire
  • Long-lasting ribbon, approx. 15 million characters
  • Copy capability of 1 original + 5 copies
  • Two tractor units as standard
  • Versatile front, bottom and rear paper paths
  • USB and parallel interfaces
  • Low power consumption

Reliability


With MTBF (mean time between failure) of 20,000 power-on hours and a print head life of 400 million strokes per wire, this extremely robust printer is suitable for medium and large print volumes. Both features guarantee uninterrupted operation and less maintenance, in turn enhancing your productivity and reducing your total cost of ownership.



Speed
Its high print speed of up to 480 cps (10 cpi) makes it an ideal solution for high volume applications. For those who demand even higher productivity especially for complex fonts like Arabic, the new unique Epson Print Speed Enhancer accelerates the print speed even further.

Flexibility
Flexible paper management allows insertion at the front, rear and bottom and dual tractor units allow you to load two sizes of paper at the same time, ready for use. The ability to print on 6-part stationery is useful for multipart forms. With the addition of USB interface, the LQ-2190 also provides flexible stand-alone connectivity.

High Ribbon Yield
At 15 million characters per ribbon, the LQ-2190 also offers a very long ribbon life. The benefits are long ribbon replacement intervals, low running costs and lower total cost of ownership.

Low Power Consumption
By improving the control, the power consumption has been significantly reduced, so LQ-2190 becomes more environmentally-friendly and reduces the effects on the environment.

Specifications

PRINTER TYPE Impact Dot Matrix
Product Name LQ-2190
Product Code C11CA92011
Number of Pins in Head 24 pins
Print Direction Bi-directional with logic seeking
Control Code ESC/P2 and IBM PPDS emulation

PRINT SPEED

High speed draft 10 cpi 480 cps
High speed draft 12cpi 576 cps
Draft 10 cpi 360 cps
Draft 12 cpi 432 cps
Draft 15 cpi 540 cps
Draft 17 cpi (condensed) 308 cps
Draft 20 cpi (condensed) 360 cps
LQ 10 cpi 120 cps
LQ 12 cpi 144 cps
LQ 15 cpi 180 cps
LQ 17 cpi condensed 180 cps
LQ 20 cpi condensed 240 cps
  cpi : characters per 25.4 mm (characters per inch)
cps : characters per second

PRINT CHARACTERISTICS

Character sets 14 international character sets and one legal character sets.
1 Italic and 12 graphical character tables
Italic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860
(Portuguese), PC861 (Icelandic), PC863 (Canadian-French), PC865
(Nordic), BRASCII, Abicomp, Roman 8, ISO Latin 1, PC 858, ISO 8859-15

Fonts

Bitmap Fonts Epson Draft 10, 12, 15cpi
Epson Roman 10, 12, 15 cpi proportional
Epson Sans Serif 10, 12, 15 cpi, proportional
Epson Courier 10, 12, 15 cpi
Epson Prestige 10, 12 cpi
Epson Script 10 cpi
Epson Script C Proportional
Epson OCR-B 10 CPI
Epson Orator 10 cpi
Epson Orator-S 10 cpi
Scalable Fonts Epson Roman 8 to 32 points
Epson Sans Serif 8 to 32 points
Epson Roman T 8 to 32 points
Epson Sans Serif H 8 to 32 points
Bar Code Font EAN-13, EAN-8, Interleaved 2 of 5, UPC-A UPC-E, Code 39, Code 128, POSTNET
Coda bar(NW-7), Industrial2 of 5, Matrix2 of 5

cpi : characters per 25.4 mm (characters per inch)
PRINTABLE COLUMNS
Characters per line 10cpi 136 cpl
12cpi 163 cpl
15cpi 204 cpl
17cpi condensed 233 cpl
20cpi condensed 272 cpl

cpi : characters per 25.4 mm (characters per inch),
cpl : characters per line
PAPER HANDLING
Standard Manual Insertion (Front or rear in, top out),
Push Tractor (Front or rear in, top out),
Pull Tractor (Front or rear or bottom in, top out)

PAPER MEDIA


Cut Sheet (Single sheet)
Entry : Front
Width
Length
Thickness

100 - 420 mm (3.9 - 16.5 inch)
148 - 420 mm (5.8 - 16.5 inch)
0.065 - 0.14 mm (0.0025 - 0.0055 inch)
Entry : Rear
Width
Length
Thickness
100 - 420 mm (3.9 - 16.5 inch)
100 - 420 mm (3.9 - 16.5 inch)
0.065 - 0.14 mm (0.0025 - 0.0055 inch)
Cut Sheet (Multi part)
Entry : Front
Width
Length
Copies
Thickness

100 - 420 mm (3.9 - 16.5 inch)
148 - 420 mm (5.8 - 16.5 inch)
1 original + 5 copies
0.12 - 0.46 mm (0.0047 - 0.018 inch)
Entry : Rear
Width
Length
Copies
Thickness
100 - 420 mm (3.9 - 16.5 inch)
100 - 420 mm (3.9 - 16.5 inch)
1 original + 5 copies
0.12 - 0.46 mm (0.0047 - 0.018 inch)
Continuous paper (Single sheet and Multi part)
Entry : Front, Rear, Bottom
Width
Length
Copies
Thickness


101.6 - 406.4 mm (4 - 16 inch)
101.6 - 558.8 mm (4 - 22 inch)
1 original + 5 copies
0.065 - 0.46 mm (0.0025 - 0.018 inch)
Roll Paper
Entry : Rear
Width
Length
Diameter
Thickness

216 mm (8.5 inch)
-
127 mm (5 inch)
0.07 - 0.09 mm (0.0028 - 0.035 inch)
Envelope (NO.6)
Entry : Rear
Width
Length
Thickness

165 mm (6.5 inch)
92 mm (3.6 inch)
0.16 - 0.52 mm (0.0063 - 0.020 inch)
Envelope (NO.10)
Entry : Rear
Width
Length
Thickness

241 mm (9.5 inch)
105 mm (4.1 inch)
0.16 - 0.52 mm (0.0063 - 0.020 inch)
Label
Entry : Bottom
Base Sheet Width
Base Sheet Length
Total Thickness

101.6 - 406.4 mm (4 - 16 inch)
101.6 - 558.8 mm (4 - 22 inch)
0.16 - 0.19 mm (0.0063 - 0.0075 inch)
Card
Entry : Front, Rear
Width
Length
Thickness

100 - 200 mm (3.9 - 7.8 inch)
148 - 200 mm (5.8 - 7.8 inch)
0.22 mm (0.0087 inch)
Line Spacing 4.23 mm (1/6 inch) or programmable in increments of 0.0706 mm (1/360 inch)
INTERFACE
Standard Bi-directional parallel interface (IEEE-1284 nibble mode supported), USB 2.0 (Full Speed), Type B I/F level 2 (Option)
INPUT DATA BUFFER 128 KB
RIBBON CARTRIDGE
Colour Black
Type Fabric Ribbon Cartridge
Ribbon life Approx.15 million characters
RELIABILITY
Mean Print Volume Between Failure 40 million lines (except print head)
Mean Time Between Failure 20,000 Power on Hours (25% duty cycle)
Print Head Life 400 million strokes/wire
CONTROL PANEL
  6 switches and 10 LEDs are located on the panel
ENVIRONMENTAL CONDITIONS (operating)
Temperature 5 to 35 C
Humidity 10 to 80% RH
ELECTRICAL SPECIFICATIONS
Rated Voltage 220V~240V
Rated frequency 50 to 60 Hz
Power consumption


Energy Star Compliant		 46W (ISO 10561 Letter pattern)
Approx. 3 W in sleep mode
0 W in powered off mode
DIMENSIONS
Width 639 mm
Depth 402 mm
Height 256 mm
Weight Approx. 13 kg
Acoustic Noise 54 dB
PRINTER DRIVER / UTILITY
Operating System
EPSON Status Monitor 3
EPSON Printer Setting		 Microsoft  Windows  2000 / XP / 7, Microsoft  Windows Vista
Microsoft  Windows 2000 / XP / 7, Microsoft  Windows Vista
Microsoft  Windows  2000 / XP / 7, Microsoft  Windows Vista
Standard Warranty 12 months return to base)
Optional Additional 2 years return to base warranty - 3YWLQ2190
* For more information visit www.epson.com.au/warranty/

Product Options

Product Code Description
  Media Handling Options
C12C811141 Roll Paper holder
C12C800322 Pull tractor
  Interfaces
C12C824432 Type B serial interface
  Options
C12C824352 10/100 BaseTX Internal Print Server
