All stock codes associated to this product
ES5500G, ES-5500G, ED15705
5 Ports Gigabit Ethernet Switch
- Complies with the IEEE 802.3 , IEEE 802.3u and IEEE 802.3ab standards.
- Smart Green Ethernet technology to reduce power consumption 30%~50%.
- Supports Auto-MDI/MDI-X, full/half duplex modes and auto-negotiation.
- Supports flow control , Non-blocking and Jumbo Frame.
Overview
SMART GREEN ETHERNET AND GIGABIT-SPEEDS
Take advantage of energy-saving solutions with increased transfer capacities with Edimaxs ES-5500G. It is an ideal energy-saving switch integrated with five 10/100/1000Mbps gigabit ports designed to meet the demands of transferring large files across the network in shorter periods. With built-in Ethernet cable-length detection, the switch automatically supplies the right amount of energy to each connection. It also reduces power consumption if ports are idle.
SUPPORT S WIRE-SPEED AND FLOW CONTROL
The ES-5500G complies with IEEE802.3, IEEE802.3u and IEEE802.3ab standards. Use it to create a gigabit high-speed network, and benefit from its ultimate performance and reliability. The switch uses non-blocking switching architecture to provide your network with full-wire speed connections. It accommodates flow control for full-duplex mode and back pressure for half-duplex mode, which ensure reliable data transfer and help prevent data loss.
SUPPORTS JUMBO FRAME
In addition, the ES-5500G supports jumbo frame that allows the extension of the Ethernet frame size to a maximum of 9600 bytes for increased data rates. This cost-efficient switch is the best choice for Small office/Home office needs.
SUPPORTS AUTO-MDI/MDI-X
It exemplifies the easy plug and play installation, because ES-5500G supports auto-MDI/MDI-X. Use either straight-through or cross-over Ethernet cable and combine 10, 100 and 1000 Mbps devices into ES-5500G. The switch will automatically detect the right cable and speed for your device.
Specifications
 |
SMART GREEN ETHERNET AND GIGABIT-SPEEDS
Take advantage of energy-saving solutions with increased transfer capacities with Edimaxs ES-5500G. It is an ideal energy-saving switch integrated with five 10/100/1000Mbps gigabit ports designed to meet the demands of transferring large files across the network in shorter periods. With built-in Ethernet cable-length detection, the switch automatically supplies the right amount of energy to each connection. It also reduces power consumption if ports are idle.
SUPPORT S WIRE-SPEED AND FLOW CONTROL
The ES-5500G complies with IEEE802.3, IEEE802.3u and IEEE802.3ab standards. Use it to create a gigabit high-speed network, and benefit from its ultimate performance and reliability. The switch uses non-blocking switching architecture to provide your network with full-wire speed connections. It accommodates flow control for full-duplex mode and back pressure for half-duplex mode, which ensure reliable data transfer and help prevent data loss.
SUPPORTS JUMBO FRAME
In addition, the ES-5500G supports jumbo frame that allows the extension of the Ethernet frame size to a maximum of 9600 bytes for increased data rates. This cost-efficient switch is the best choice for Small office/Home office needs.
SUPPORTS AUTO-MDI/MDI-X
It exemplifies the easy plug and play installation, because ES-5500G supports auto-MDI/MDI-X. Use either straight-through or cross-over Ethernet cable and combine 10, 100 and 1000 Mbps devices into ES-5500G. The switch will automatically detect the right cable and speed for your device.
|
|
|
|
HARDWARE INTERFACE
|
FUNCTIONS
|
POWER ADAPTER
|
- 5 10/100/1000Mbps Ethernet Ports
- LED Indicators: Power and Link/Activity
|
- Jumbo Frame (9K bytes)
- Non-Blocking
- Store-and-Forward architecture
- Full wire speed filtering
- Auto-MDI/MDI-X and auto learning
- A uto -negotiation
|
|
|
STANDARD
|
HUMIDITY & TEMPERATURE
|
MEMORY BUFFER
|
- IEEE802.3, IEEE802.3u and IEEE802.3ab
- IEEE802.3x
|
- 10-95% (Non-condensing)
- 0~40 Degree Celsius
|
|
|
MAC Address
|
DIMENSION
|
|
|
|
|
|
 |
GREEN ETHERNET
|

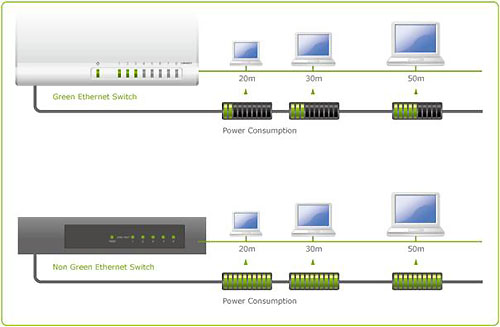

(a) ES-5500G is capable of automatically detecting the length of the Ethernet cable and dynamically adjusts the power consumption accordingly.

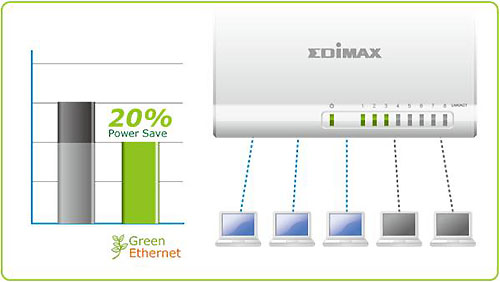

(b) ES-5500G can detect the link status of each port. When the port is idle,the ES-5500G willreduce it's power usage.
|
Networking
