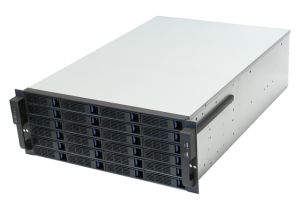

IMG 1 of 9
9 image(s) are available
for this product
Note: physical product may
vary from images displayed.
Our Price:
$479.00

Part Number:
149123
Usually Ships:
Back Order More info
(?) Brand:
Manuf No:
RPC-4224
RPC4224
Shipping Weight:
25 KG (Includes product packaging)
IN STOCK

Features
  • 4U rackmount design
  • 24x hot-swappable SATA/SAS 6G drive bays
  • Six internal SFF-8087 Mini SAS connectors support up to twenty-four 3.5" or 2.5" SATA (II or III) or SAS hard drives;
  • Backplanes are horizontal mounted for better ventilation
  • LED indicators for power and activity on each HDD tray
  • Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6") motherboard
  • RoHS Compliant
  • Redundant 4pin molex PSU connectors support redundant power supply
  • Two front USB ports
  • Smooth border prevent lacerating your skin


Specification
Drive Bay 24 x hot-swappable SATA/SAS 6G drive bays
Cooling Fan 4 x 80mm middle fans wall, 2 x 80mm rear fans
Switch Power ON/OFF x 1, System reset x 1
Indicator Power ON/OFF x 1, HDD x 1, NETWORK X 2
Connector Two front accessible USB ports, six internal SFF-8087 Mini SAS connectors, ten 4-pin redundant molex power connectors
Motherboard Compatibility Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6")
Power Supply Options Standard ATX power supply, mini redundant power supply (H x W 5.91x3.39 inch)
Dimensions ( W x D x H ) 19" x 25.5" x 7.0" (483mm x 650mm x 176mm)
Packing Double boxes
Weight (without hard drive) 18 kg/39.7 lb (NET) 21.2 kg/46.7 lb (GROSS)
Environment Temperature 0/40 C, 32/104 F (Operating) -20/60 C, -4/140 F (Non-Operating)
Relative Humidity 5% to 95%,non-condensing

No additional files, specification sheets, guides or documentation found for product.

A list of products relating to this item are shown below. To add one/more to your cart along with the product shown above, simply click on the check box for each item and then click on the "Add to Cart" button.

Current Displayed Product (Preselected for you) RPC-4224 Rackmount Server Chassis, No PSU - 4..

Price
$479.00

Cables - Hard Drive - SATA RPC-4224 Rackmount Server Chassis, No PSU - 4..

125971, Norco 0.5M Mini-SAS(SFF-8087) to 4xSATA Discrete Cable $33.00

Cables - Hard Drive - SAS RPC-4224 Rackmount Server Chassis, No PSU - 4..

125972, Norco 0.5M Mini-SAS(SFF-8087) to Mini-SAS(SFF-8087) Multilane SAS Cable $25.40

Cases - Server - Accessories RPC-4224 Rackmount Server Chassis, No PSU - 4..

152644, Norco 120mm Fan Wall Bracket $12.10
125973, Norco 26" Sliding Rail Kit - 3 Section, Ball Bearing, Supports from 2U to 5U chassis $85.80
151997, Norco Hard Drive Tray (Spare) - Supports 3.5" and 2.5" drives $5.50

Networking - Rack Cabinets & Accessories RPC-4224 Rackmount Server Chassis, No PSU - 4..

156666, Norco SA-2100 Rack Mounting Screw & Nut - 10 Pieces $8.50
125975, Norco SA-2100 Rack Mounting Screw & Nut - 20pcs $13.95
156667, Norco SA-2100 Rack Mounting Screw & Nut - 4 Pieces $4.75

Power Supplies - Server Rated - Redundant RPC-4224 Rackmount Server Chassis, No PSU - 4..

157946, Zippy 800W EPS12V Dual Redundant Power Supply (MRG-5800V4V)
Suits Norco 4U Chassis (RPC-4224, RPC-4020, RPC-4220, RPC-4224, RPC-450, RPC-470)
$812.90

Full manufacturers warranty details are available at the manufacturers (Norco) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
