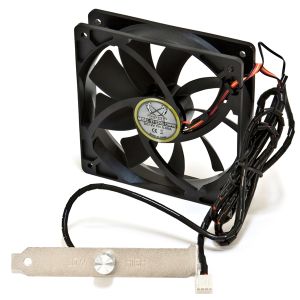

Scythe Slip Stream PWM Adjustable Fan - 120x120x25mm Fan, Sleeve Bearing, 1900rpm, 110.31CFM, 37dBA - Black Fan/Yellow Sticker

IMG 1 of 1
No Longer Available
Part Number:
149306
(?) Brand:
Scythe Web Site
Manuf No:
SC-SY1225SL12HPVC
SCSY1225SL12HPVC
Shipping Weight:
0.3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
SCSY1225SL12HPVC, SC-SY1225SL12HPVC

Slip Stream 120 PWM Adjustable

Slip Stream Adjustable PWM fan is the third new version of the PWM
Slip Stream series. As needed, users can adjust the PWM bandwidth
manually to control the fan speed by sliding the switch on a PCI
bracket, so the fan is optimized for quiet operation or highest
performance. PWM function is still maintained as the general feature. Speed of this fan variation is continuously adjustable between 470 ( 30%) to 1,340 rpm ( 10%) and 740 ( 25%) to 1,900 rpm ( 10%).


Features

PWM Adjustable








Equipped with Scythe original Slip Stream
PWM 120 mm PWM Adjustable fan, it
allows a user to choose the fully
automatic PWM feature fan speed control
or alternatively adjust the PWM band
range to fulfill demands from silent to high performance users!

Performance








By reducing the dimension of the center
hub and enlarging the blade surface area,
high airflow is generated at low RPM.

4-Pin Peripheral Adapter Provided






To be versatile, this case fan comes with
the 4-pin peripheral adapter.


Specifications

Model Name:
Slip Stream 120 PWM Adjustable

Model No.:
SY1225SL12HPVC

Fan Dimensions:
120 x 120 x 25 mm

Fan Speed:
Max. Band 740 (25%) - 1,900 rpm (10%)
Min. Band 470 (30%) - 1,340 rpm (10%)

Noise Level:
Max. Band 9.8 - 37.0 dBA
Min. Band: 7.05 - 27.3 dBA

Air Flow:
Max. Band 37.15 - 110.31 CFM = 63 - 187 m/h
Min. Band: 23.0 - 76.53 CFM = 39 - 130 m/h

Weight:
117 g

Connector:
3-Pin (4-Pin Molex Adapter include)

Bearing Type:
Sleeve Bearing

MTBF:
30,000 Hours

Mounted in following CPU Cooler:

Yasya
