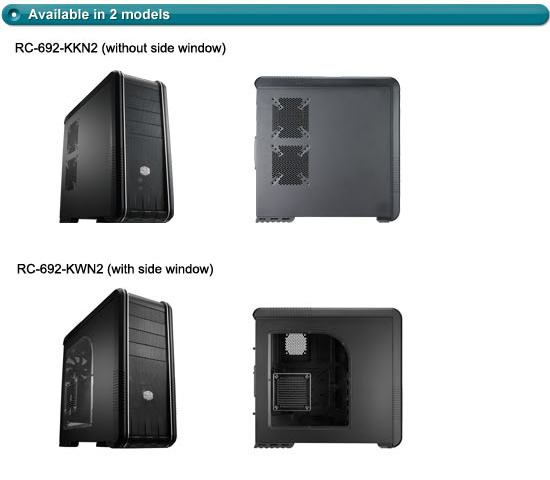

CoolerMaster RC-692 Advanced Midi-Tower Case - No PSU, Black
  • 2xUSB2.0, 1xeSATA, 1xHD-Audio, Side Window Panel, 1x140mm Blue LED Fan, 1x140mm Fan, 1x120mm Fan, ATX

IMG 1 of 1
No Longer Available
Part Number:
149371
(?) Brand:
CoolerMaster Web Site
Manuf No:
RC-692-KWN2
RC692KWN2
Shipping Weight:
15 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
RC692KWN2, RC-692-KWN2, CSCORC692KWN2
Introduction
CM 690 II Advanced raises the bar again with practical improvements over the top-selling CM 690. The spacious mid-tower will keep enthusiasts happy with room for up to 3 vga cards, high-end CPU coolers, top or bottom mount water cooling radiator and 1.8"/2.5" drive adapter. It also features much improved airflow with oversized mesh and enough space for up to 10 fans. Maintenance will be a breeze with the tool-free drive bays, new cable management and CPU cooler retention hole.

Features

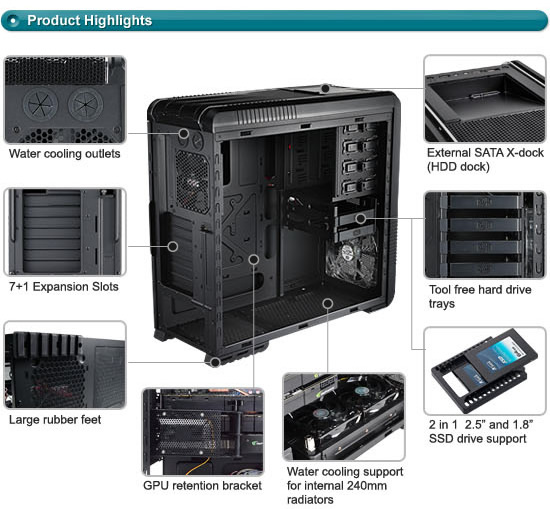

  • Oversized front and top mesh design for superb ventilation
  • Accommodates 120 x 240 mm radiator inside the top or bottom
  • Dust-control filters for all meshed areas

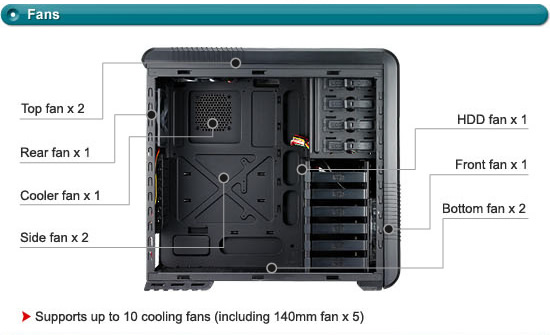

  • Air cooling support for up to 10 fans (with support for up to 5 x 140mm fans)
  • External SATA X-dock
  • Front blue LED fan on/off switch
  • Rear retaining holes for water cooling kit
  • Includes 1.8" & 2.5" HDD and SSD adapter
  • Cable managment and CPU retaining hole for easy maintainence
  • Includes VGA card bracket (supports triple GPU card)


Specifications
Available Color Black

Material Steel body / Plastic + Mesh bezel

Dimension (W / H / D) 214.5 x 511.8 x 528.8 mm / 8.4 x 20.1 x 20.8 inch

Weight Net Weight: 9.56 kg / 21.08 lbs
Gross Weight: 11.56 kg / 25.49 lbs

M/B Type Micro - ATX / ATX / Mini-ITX(supports)

5.25" Drive Bay 4 (without the use of exposed 3.5drive bay)

3.5" Drive Bay 6 Hidden
1 Exposed (converted from one 5.25 drive bay)

I/O Panel USB 2.0 x 2 , eSATA x 1 , MIC x 1 , Audio x 1 (supports HD / AC97 audio)

Expansion Slots 7 + 1

Cooling System Front: 140 x 25 mm Blue LED fan x 1 / 1200 RPM / 19 dBA

Rear: 120 mm fan x 1 / 1200 RPM / 17 dBA

Top: 140 x 25 mm fan x 1 / 1200 RPM / 19 dBA (supports 120 / 140 mm fan x 2)

Bottom: 120 mm fan x 2 (optional)

Left side: 120 / 140 mm fan x 2 (optional)

Right side: 80 x 15 mm x 1 (optional)

HDD cage: 120 mm fan x 1 (optional)

VGA holder: 80 x 15 mm fan x 1 (optional)


No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (CoolerMaster) web site.
