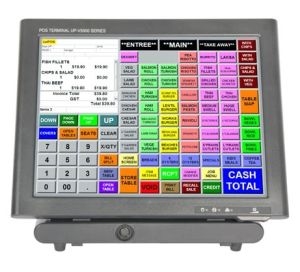

Sharp UP-V5500 Point Of Sale Terminal System
  • 15" TFT LCD Touchscreen, Atom N270(1.60GHz), 1GB-RAM, 160GB-HDD, 10/100 LAN

IMG 1 of 4
No Longer Available
Part Number:
150003
(?) Brand:
Sharp
Manuf No:
UP-V5500
UPV5500
Shipping Weight:
6 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
UPV5500, UP-V5500, 1305786
PC/POS Systems

PC POS Terminal in popular Sharp UP / UPX style housing

Efficiency and a large full colour touch screen .... all within a minimum of space

Model - UPV5500

Features

Sleek and modern, The UP-V5500's brilliant 15-inch TFT colour LCD touch-screen display offersexceptional clarity,wide viewing angle and adjustable operator display.

With a high performance processor, powerful system I/O ports and memory, the UP-V5500 is the reliable solution for businesses looking for operational efficiency and quality in a compact design.

Combining the latest technology with Microsoft Windows R Embedded POS ready 2009 operating system pre-installed, the UP-V5500 gives you the flexibility you require to meet todays challenges in the hospitality environment.

Key features:

  • Bright and clear 15" TFT Colour LCD Touch screen
  • Efficient 1.6 Ghz Intel Atom N 270 CPU
  • 1 GB of Ram and 160 GB 2.5" SATA Harddisk drive
  • Compact footprint, ideal for many hospitality and retail environments
  • Sharp Contactless Clerk Key System for identification and log-on

    • Supported peripherals :

    UP-I20DP Integrated 2-line (20 character) display
    UP-P20DPB 2-line (20 character) remote pole display
    UP-E55MR / UPV5500MCR Magnetic Card reader
    UP-R10CL2 Contactless Clerck key (10 pcs.)
    ER-03DWB4 4-note / 8-compartment cash drawer (black)
    ER-05DWB5 5-note / 8-compartment cash drawer (black)
    ER-48CC3 Coin case insert for ER-03DWB4
    ER-58CC Coin case insert for ER-05DWB5

    Specifications
    Operator Display 15-inch TFT LCD with backlight
    XGA 16 bit-colour resolution
    Analogue touch-screen
    CPU Intel ATOM 1.6 GHz N270 processor
    Main Memory DDR2 : 1 GB standard, Slot 1
    Maximum 2 GB - 200 pin SODIM module
    Video RAM : 64 MB
    Hard Drive 160 GB, 2.5 inch SATA
    Ethernet LAN Standard RJ45 10Base-T/100Base-TX/1000 Base-Gigabitport
    I/O Ports Parallel : 1 standard LPT-1 Port
    RS232: 4 standard D-Sub ports
    USB : 4 standard USB 2.0 ports
    VGA : 1 standard VGA -out port
    2 x Cash drawer port (Sharp standard)
    1 x Cash drawer port (RJ11)
    Audio - output
    Customer Display Optional integrated Or remote pole
    2 lines x 20 charecters
    Power source External AC adapter
    Power requirements 19V 4.74A max. (90 Watts)
    Dimensions (W xD X H) 380 x 311 x 320 mm
    Weight 6.4 Kg

    No additional files, specification sheets, guides or documentation found for product.

    Warranty: 1 Year Return to Base

    Full manufacturers warranty details are available at the manufacturers web site.

    Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

    To apply for return of a product just go to our returns page.

    These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
