All stock codes associated to this product
DTU2231A/G0C, DTU-2231A/G0-C, 1207865, 4949268702102

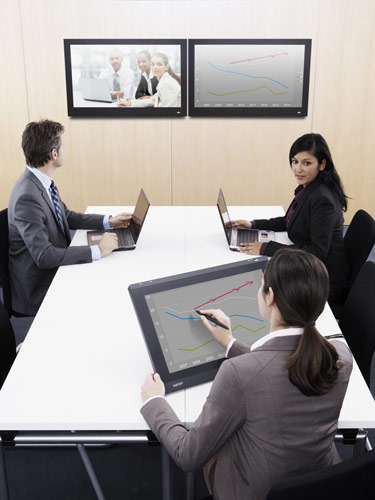

With its full HD (1920 x 1080 pixels) resolution and generous 21.5" screen size, the DTU-2231A is Wacom's top non-graphics interactive pen display. The DTU-2231A features a wide viewing angle for excellent visibility in a variety of situations. The pen registers 512 levels of pressure sensitivity and is even compatible with many Tablet PCs that are on the market.
The size and resolution of the DTU-2231A makes it an ideal tool for many different markets. The excellent pen performance allows for natural handwriting, annotation and drawing directly on the screen. The direct pen input is perfectly matched for usage such as electronic medical records in the medical and dental industries. More recently, direct pen input is finding widespread use in GIS/mining for interactive map plotting, air traffic control for intuitive operation, and in teleconferencing for real-time annotation.
Case studies involving Wacom pen displays
* Education:
Wacom pen displays as used at university lecture halls
Wacom pen displays used to create a "digital classroom"
* Healthcare:
Wacom pen displays in the healthcare industry
* Control Systems:
The Jands Vista Lighting Console
Features & Benefits
Advanced Technology, Superior Quality
* 21.5-inch Display - the DTU-2231A's 21.5-inch active matrix TFT LCD display is Wacom's first full HD display and offers 1920 x 1080 pixel resolution.
* Features excellent viewing angles with 170 degrees visibility from all directions.
* Built-in video scaler reformats DVI signals that are in widescreen mode (16:10) to standard mode (4:3) preventing screen distortion.
* Connectivity -- DVI-I digital video input for high quality display images, and DVI-I digital video out for connecting to a projector. DVI to VGA cable also provided.
Wacom Pen Technology, a natural experience
* 512 levels of pressure sensitivity and based on over 25 years of experience in building digital pens that feel like the real thing, Wacom's patented electro-magnetic resonance pen technology provides the world's most sophisticated pen input experience. Even first time users will be surprised at how similar writing on-screen is to writing on paper.
* With a high reporting rate of 133 points/sec combined with sophisticated pressure sensitivity, Wacom's refined pen technology offers smooth, natural, on-screen mark up.
* Compatible with most Tablet PCs using Wacom's Penabled technology.
Convenience
* Cordless & battery-free pen for free movement and consistent reliability.
* Customisable pen buttons for right clicking or setting to various functions & keyboard shortcuts.
* Pen eraser for fast erasing of marks and text (in Windows).
* Security hole to deter theft.
* Conveniently store your pen in the pen holder, and attach it with a tether to prevent misplacement.
* 2 USB hubs for connecting flash drives and other devices

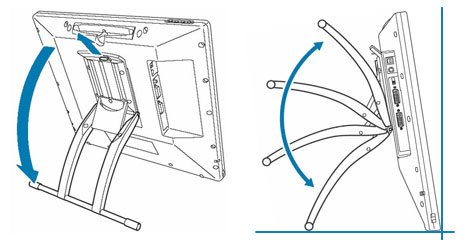

* Adjustable stand for optimal viewing angle (15 degrees from the vertical) as well as inclined angle (up to 72 degrees from the vertical) for optimal pen input.
Unique to the DTU-2231A
* Large 21.5" screen delivers full HD resolution (1920 x 1080 pixels).
Accessories
The following optional accessories & replacement parts are available for this product.
* Pen with eraser, two customisable buttons, and tether hole.
* Replacement nibs (PSI-A057)
* AC adapter (POW-A114)
Technical Specifications
Technical specifications for the DTU-2231A can be found below. Click on Compare Models to see a comparison chart with Wacom's other pen display models.
LCD DISPLAY
|
| Product |
DTU-2231A
|
| Screen size |
21.5-inch
|
| Screen resolution |
1920 x 1080 Full HD
|
| Pixel pitch |
0.248 x 0.248 mm |
| Colour depth |
16.77 million colours
|
| Contrast ratio |
700:1
|
| Maximum Brightness (cd/m2 ) |
200 cd/m2
|
| Response Time |
5 ms
|
| Viewing angle (horizontal / vertical) |
170 / 160
|
| Backlight lifetime |
50,000 hours
|
| Video Cables |
DVI-I to VGA (analog RGB) cable DVI to DVI cable
|
| Video Interface |
DVI-I video in/out
|
PEN & TABLET
|
| Battery-free & cordless pen |
Yes
|
| Pen pressure levels |
512 levels
|
| Customisable pen buttons |
2 side switches
|
| Pen eraser |
Yes
|
| Pen tether |
Yes
|
| Pen stand |
No
|
| Tablet resolution |
508 lpi
|
| Coordinate accuracy |
0.5mm (center)
|
| Tablet reading height |
5 mm
|
| Report rate |
133 points/sec
|
| Data interface |
USB
|
| Data cables |
USB cable
|
GENERAL
|
| Main unit dimensions (W x D x H) |
564 x 374 x 55.5 mm excluding stand
|
| Weight (including stand) |
7.4 kg
|
| Adjustable stand (incline from vertical) |
15 to 72
|
| USB 2.0 hubs |
2 (1 on each side of the display) |
| Operating temperature |
5 to 35
|
| Operating humidity |
20% to 80% RH
|
OTHER
|
| Windows OS compatibility |
7 / Vista / XP / 2000
|
| Macintosh OS compatibility |
OS X 10.4 or later
|
| Power supply input |
AC 100-240V, 50-60Hz
|
| Maximum power consumption |
39W
|
| Limited warranty |
One year
|
